The Mechanics of Automatic Transmissions: Comparing Torque Converter, Dual-Clutch (DCT), and Continuously Variable Transmissions (CVT)

The manual transmission is functionally dead in the American market, but the word 'automatic' on a window sticker now hides a fierce engineering war. Buyers assume all two-pedal cars operate the same way, but the mechanical reality is a fractured landscape of three entirely different philosophies fighting for dominance. Automakers are not just picking parts at random; they are making calculated trade-offs between manufacturing cost, fuel economy mandates, and the driver's tolerance for mechanical quirkiness.[1][7]

For the average buyer, this abstract engineering debate has immediate, local consequences. The transmission architecture dictates whether a vehicle will shudder in stop-and-go traffic, drone endlessly on the highway, or require a costly fluid and clutch service at 60,000 miles. When you test drive a crossover today, the window sticker just says 'automatic,' but underneath, you are buying into one of three distinct mechanical ecosystems.[7]

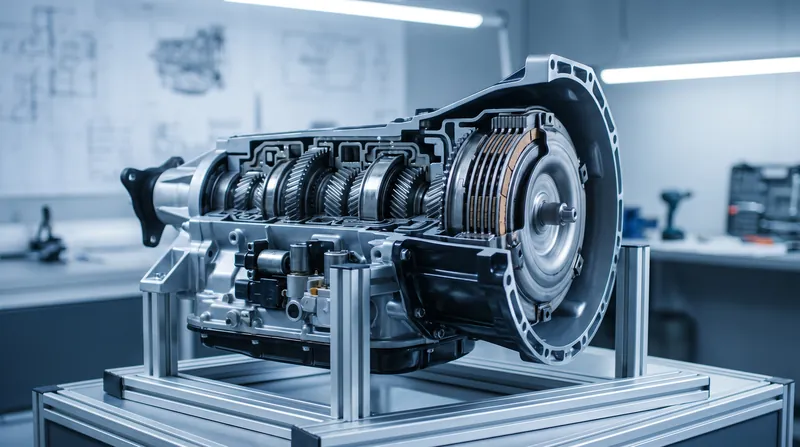

The traditional torque converter automatic (AT) has been the default for decades. It uses fluid dynamics to transfer power from the engine to the wheels, allowing the car to idle smoothly while in gear. An impeller driven by the engine flings transmission fluid across a stator into a turbine connected to the drivetrain, creating a fluid coupling that multiplies torque at low speeds.[5][6]

Historically, these were sluggish and inefficient, earning the nickname 'slushboxes' because of the power lost to fluid friction. But modern iterations, packing eight to ten speeds, have revolutionized the architecture. By locking the torque converter clutch earlier in the rev range, modern ATs achieve near-direct drive efficiency, closing the gap with manual transmissions while maintaining their signature low-speed smoothness.[1][2]

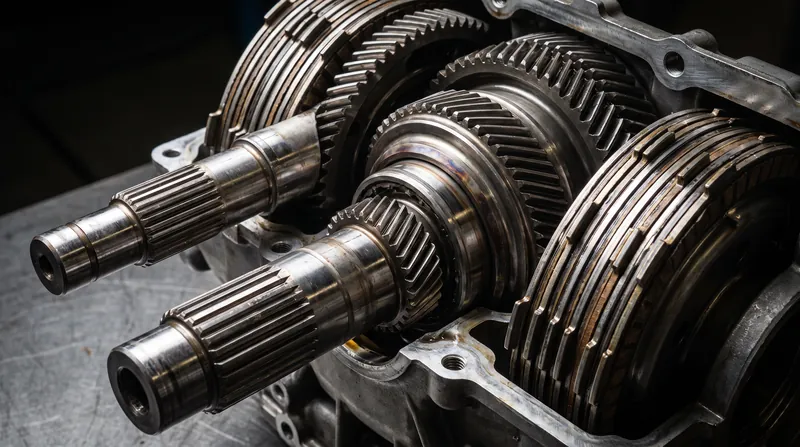

On the other end of the spectrum is the Dual-Clutch Transmission (DCT). Born in motorsport, the DCT is essentially two manual transmissions bolted together, operated by computers and hydraulics rather than a human foot. One clutch handles the odd gears, while the other pre-selects the even gears.[3][4]

This dual-shaft layout allows for lightning-fast shifts, often in under 15 milliseconds, with virtually zero interruption in torque delivery. When the computer commands an upshift, it simply disengages one clutch while simultaneously engaging the other, resulting in seamless, aggressive acceleration that traditional fluid couplings cannot match.[4]

However, this direct mechanical connection comes at a cost in low-speed drivability. Without the fluid buffer of a torque converter, DCTs can feel jerky or hesitant when creeping through a drive-thru or navigating a tight parking garage. The clutches must constantly slip to modulate low-speed movement, which can lead to accelerated wear and a less refined experience in heavy urban traffic.[3][7]

The third contender, the Continuously Variable Transmission (CVT), abandons physical gears entirely. Instead, it uses a high-strength steel belt running between two variable-width pulleys to create an infinite number of gear ratios. As the vehicle accelerates, the pulleys adjust their width, seamlessly changing the ratio without any physical shifting.[1][3]

This allows the engine to remain at its absolute most efficient RPM regardless of vehicle speed, making CVTs the undisputed champions of commuter fuel economy. By eliminating the 'steps' between gears, the engine never has to work outside of its optimal power band, wringing every possible mile out of a gallon of fuel.[1]

The trade-off is the infamous 'rubber band' effect. When accelerating hard, the engine revs instantly to a high RPM and stays there while the vehicle speed catches up, creating a droning sound that many drivers find unnatural. Automakers have attempted to mask this by programming 'fake' shift points into the CVT software, artificially dropping the RPM to mimic a traditional automatic, though this sacrifices some of the inherent efficiency of the design.[3][7]

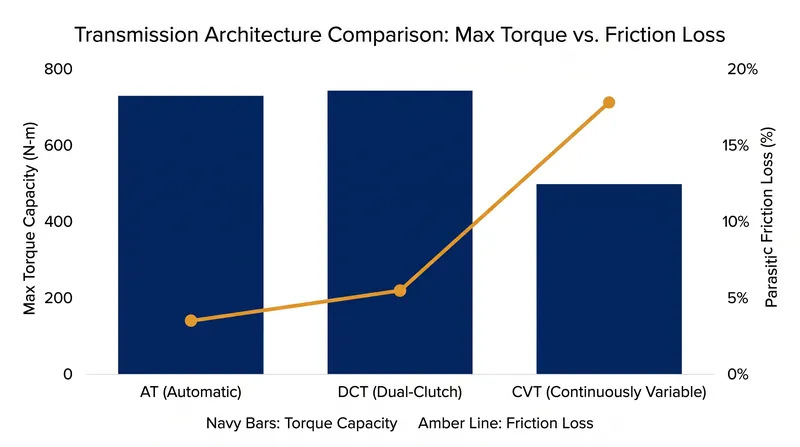

Furthermore, CVTs rely heavily on friction between the belt and the pulleys. Under high torque loads—such as towing a heavy trailer or launching a high-horsepower sports car—this friction can result in parasitic power loss or even belt slippage, limiting their application primarily to economy cars and light-duty crossovers.[3]

Ultimately, the choice of transmission is a proxy for the vehicle's intended purpose. A heavy-duty truck relies on the torque multiplication and thermal durability of a traditional AT, a track-focused sports car demands the immediacy of a DCT, and an economy hatchback leans on the efficiency of a CVT.[5][7]

Understanding these mechanical differences transforms the car-buying process. It moves the decision past superficial aesthetics and brand loyalty, anchoring it in the physical realities of how the machine will behave in your specific driveway, on your specific commute, and within your specific maintenance budget.[7]
