The Physics of Display Technology: Comparing OLED, QLED, and Mini-LED for Contrast, Color, and Brightness

At the microscopic level, a standard 4K television contains exactly 8,294,400 individual pixels. How a display manufacturer chooses to illuminate those eight million dots dictates everything from the price of the television to how well it performs in a sunlit living room. For years, the market was cleanly divided between standard LED panels and premium OLEDs. Today, the introduction of QLED and Mini-LED technologies has blurred those lines, creating a spectrum of options that trade perfect black levels for blinding peak brightness.[1][8]

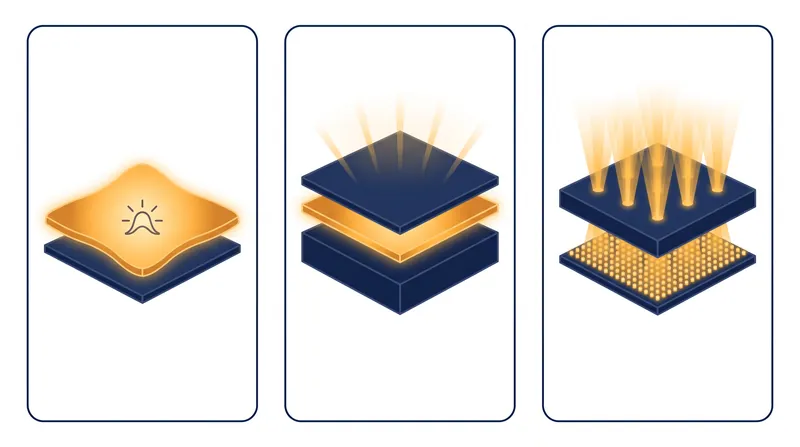

The fundamental divide in modern display technology comes down to how light is generated. Every television on the market falls into one of two categories: emissive or transmissive. Emissive displays, like OLED, generate their own light at the pixel level. Transmissive displays, which include standard LED, QLED, and Mini-LED, rely on a backlight shining through various layers of filters and liquid crystals to produce an image.[1][4]

OLED, or Organic Light Emitting Diode, represents the emissive approach. In an OLED panel, an electrical current is applied to an organic carbon-based film, causing it to glow. Because each of the 8.3 million pixels is its own independent light source, a pixel can simply turn itself off when instructed to display black. There is no backlight to block; the pixel simply ceases to emit light.[2][4]

This ability to achieve a true, zero-emission black state gives OLED what engineers call an "infinite contrast ratio." When a bright white star is displayed against the blackness of space, the pixels representing space are completely dark, with no light bleeding into the surrounding area. This pixel-level precision makes OLED the undisputed champion for dark-room viewing and home theater environments.[2][6]

However, the organic nature of OLED panels introduces physical limitations. Pushing too much electrical current through the organic compounds generates excess heat, which can permanently degrade the material—a phenomenon commonly known as burn-in. To protect the panel, OLED televisions utilize an Automatic Brightness Limiter (ABL) that dims the screen when a large portion of the display gets too bright, typically capping peak luminance around 800 nits.[2][8]

To solve the brightness limitations of OLED, manufacturers turned to transmissive technology, leading to the development of QLED. QLED stands for Quantum Dot Light Emitting Diode. Despite the acronym, a QLED is fundamentally a traditional LCD television equipped with an LED backlight, but with one crucial addition: a layer of quantum dots.[3][7]

Quantum dots are microscopic semiconductor nanocrystals that react to light. When the blue LED backlight hits these dots, they emit highly saturated, incredibly pure red and green light. This quantum dot layer allows the television to produce a significantly wider color volume and achieve massive peak brightness levels without the risk of burn-in that plagues organic panels.[1][4]

The trade-off for QLED's brightness is contrast. Because the backlight is always on, the liquid crystal layer must physically block the light to create black. It is nearly impossible to block 100 percent of the light, resulting in blacks that often look dark gray in a dim room. Furthermore, standard QLEDs use a limited number of "dimming zones" to control the backlight, which can cause a halo effect—or blooming—around bright objects on dark backgrounds.[3][5]

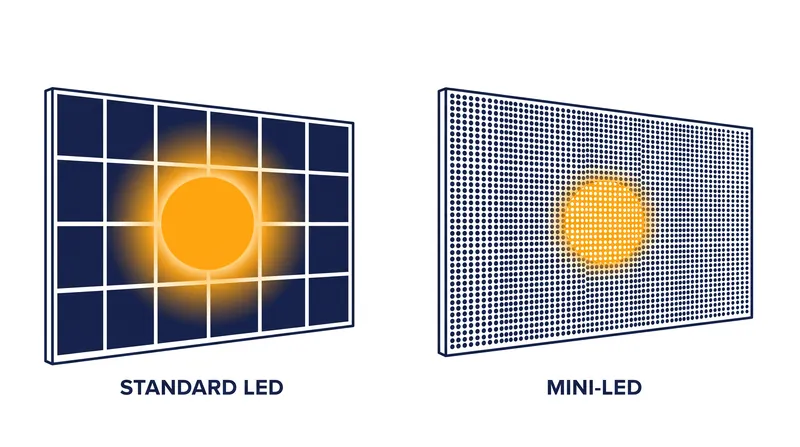

This is where Mini-LED enters the equation, serving as a mechanical bridge between the brightness of QLED and the contrast of OLED. Mini-LED is not a new type of panel; rather, it is a radical miniaturization of the backlight used in QLED televisions. By shrinking the individual light-emitting diodes to a fraction of their traditional size, engineers can pack tens of thousands of them directly behind the screen.[5][6]

Packing 10,000 miniature LEDs into a backlight allows manufacturers to divide the screen into thousands of independent local dimming zones, compared to the few dozen found on standard LED TVs. This granular control means the television can dim the backlight precisely behind dark areas of the image while simultaneously driving maximum power to bright highlights.[6][7]

The result is a transmissive display that approaches the contrast performance of an OLED while maintaining the durability and sheer output of a QLED. Premium Mini-LED televisions can sustain peak brightness levels exceeding 2,000 nits, allowing them to punch through the glare of a sunlit living room without triggering an automatic dimming circuit.[6][8]

When comparing the utility of these technologies, the deciding factor is not which panel is objectively superior in a vacuum, but which panel is superior for a specific environment. Our editorial analysis of peak luminance capabilities against standard ambient room lighting metrics reveals a clear divergence in practical performance.[9]

While OLED achieves mathematically infinite contrast in a pitch-black room due to its zero-nit black level, that advantage evaporates in a bright room. Mini-LED's ability to sustain over 2,000 nits yields a significantly higher perceived contrast ratio in living rooms with ambient light exceeding 200 lux. The sheer volume of light output prevents the image from washing out, making Mini-LED the objective utility winner for daytime viewing.[6][9]

Conversely, for buyers constructing a dedicated home theater where ambient light is strictly controlled, the pixel-level precision of OLED remains unmatched. The absence of blooming around bright objects and the instantaneous pixel response times provide a level of cinematic fidelity that transmissive displays cannot fully replicate, regardless of how many dimming zones they employ.[2][4]

Ultimately, the display market has segmented into specialized tools rather than a single universal solution. Buyers must evaluate their primary viewing habits—whether they watch sports on a Sunday afternoon in a sun-drenched room, or stream movies at midnight in total darkness—and select the physics that best align with their reality.[5][8]
