The Mechanics of Applicant Tracking Systems: How ATS Software Parses Resumes and What the Evidence Says About Optimization

Eighty-eight percent of employers openly acknowledge a critical flaw in their hiring pipelines: their automated systems routinely filter out highly qualified candidates simply because their applications lack exact-match keywords. Yet, despite this known defect, the adoption of Applicant Tracking Systems (ATS) continues to accelerate. Today, approximately 90% of Fortune 500 companies rely on these software platforms to manage the crushing volume of modern job applications. The sheer scale of digital recruitment has made manual screening mathematically impossible for enterprise human resources departments.[2][5]

The result of this automated gatekeeping is what labor market researchers call the "Hidden Worker" phenomenon. Millions of capable professionals—individuals who possess the exact competencies required for open roles—are systematically discarded by software before a human recruiter ever sees their credentials. This creates a structural paradox in the modern economy: companies struggle with perceived talent shortages while simultaneously deploying algorithms that render vast swaths of the labor pool invisible.[2]

The root of this disconnect lies in a fundamental misunderstanding of the audience. Candidates design their resumes for human eyes, utilizing creative layouts, subtle formatting, and nuanced language to tell a compelling professional story. However, the first reader of any enterprise application is not a human being, but a machine parser. Bridging the gap between human experience and algorithmic screening requires understanding the mechanical reality of how an ATS actually ingests a document.[1]

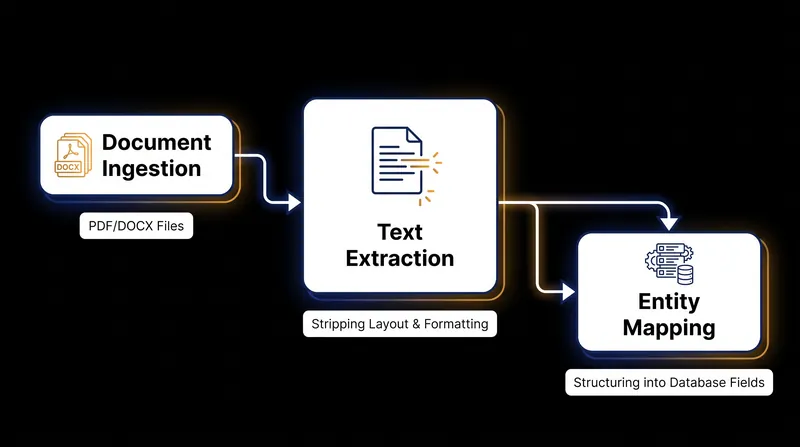

When a candidate uploads a PDF or Word document to a portal like Workday or Greenhouse, the system does not store the file for visual review. Instead, it initiates a two-stage ingestion pipeline. The first stage is text extraction, where the software strips away all visual design elements—fonts, colors, margins, and graphics—to isolate the raw text strings. If the document's underlying architecture is overly complex, this initial extraction phase can fail catastrophically.[1][6]

The most common point of failure is the two-column layout. Because ATS parsers are programmed to read text linearly from left to right and top to bottom, a two-column design scrambles the text stream. A candidate's job title in the left column might be merged mid-sentence with a technical skill listed in the right sidebar. This mechanical error corrupts the data before the system even attempts to evaluate the candidate's qualifications.[1]

Once the raw text is extracted, the ATS moves to the second stage: entity recognition and schema mapping. The system's algorithm attempts to identify specific blocks of text and assign them to structured database fields, such as contact information, work history, education, and skills. The recruiter ultimately searches and filters this structured database profile, not the original uploaded document.[1][6]

This schema mapping relies heavily on standard section headers. The parser looks for a canonical vocabulary—such as "Work Experience," "Education," and "Skills"—to understand where one data category ends and another begins. When candidates use creative headings like "My Professional Journey" or "Core Competencies," the parser often fails to recognize the section, resulting in entire blocks of critical experience being dropped from the candidate's searchable profile.[1]

After the candidate's profile is successfully structured, the ATS evaluates their fit for the role using keyword matching. Traditional systems utilize Term Frequency-Inverse Document Frequency (TF-IDF) vectorization, a statistical algorithm that measures how often specific terms from the job description appear in the resume. This approach requires precise, exact-match terminology to register a successful qualification.[3]

The rigid nature of TF-IDF vectorization heavily penalizes candidates who use synonyms or industry-adjacent jargon. If a job posting explicitly requires "project management" and a highly qualified candidate describes their experience as "cross-team coordination," the algorithm registers a skill gap. This exact-match penalty is the primary driver behind the automated rejection of otherwise suitable applicants.[2][3]

Despite these limitations, HR professionals consistently report that ATS platforms are essential for modernizing recruitment. Surveys of talent acquisition teams indicate that automating repetitive tasks—such as initial resume screening, interview scheduling, and compliance tracking—significantly reduces administrative overhead. By minimizing human intervention in the earliest stages of the funnel, recruiters can dedicate more time to interviewing the candidates who successfully navigate the algorithmic filter.[4]

To address the shortcomings of rigid keyword matching, newer ATS models are beginning to integrate Natural Language Processing (NLP) and transformer-based semantic embeddings. These AI-driven systems are designed to understand the contextual meaning of words, allowing them to recognize that "cross-team coordination" and "project management" represent the same underlying competency. This shift promises to reduce the exact-match penalty and improve the accuracy of candidate-job matching.[3]

However, even the most advanced semantic AI remains entirely dependent on the accuracy of the initial text extraction. If a creative layout scrambles the text or a non-standard header hides a work history section, the semantic matcher has no data to evaluate. Consequently, optimization strategists emphasize that a boring, single-column, text-first layout remains the most effective way to ensure an application survives the parsing phase.[1]

Ultimately, an optimized resume is not about gaming an algorithm; it is about removing friction for the machine reader. By delivering clean, structured data through standard formatting and precise terminology, candidates ensure that their professional history is accurately mapped into the employer's database. Only when the software successfully parses the document does the human recruiter finally gain the opportunity to evaluate the applicant's true potential.[7]
