Methemoglobin Absorbs 660- and 940-Nanometer Light Equally, Pinning Pulse Oximeters to 85 Percent Regardless of True Arterial Oxygenation

On December 14, 2025, the National Institutes of Health updated its clinical framework for a rare but fatal blood disorder, reinforcing a technological blind spot that continues to deceive emergency physicians. The ubiquitous pulse oximeter, relied upon to measure oxygen saturation, possesses a mathematical flaw.[1]

When a patient develops methemoglobinemia, their blood loses the ability to deliver oxygen to tissues. The patient turns visibly blue, and their arterial blood turns a dark chocolate brown. Yet, the monitor clipped to their finger will stubbornly display an oxygen saturation of 85 percent.[1]

This specific number is not a biological reality, but an algorithmic artifact. The device is not measuring the patient’s actual oxygen levels. Instead, it is being tricked by the physical properties of an altered hemoglobin molecule that absorbs light in a way the machine was never programmed to understand.

"Methemoglobin equally absorbs light at 660 nm and 940 nm, and as the concentration of methemoglobin in the blood increases, the SpO2 trends toward and eventually plateaus at 85%," researchers note in the NIH review. This plateau masks both severe hypoxia and hyperoxia.[1]

The Physics of Two Wavelengths

To understand the deception, one must look at how standard pulse oximetry operates. The device relies on two specific wavelengths of light emitted by diodes: red light at 660 nanometers and infrared light at 940 nanometers. These beams pass through a translucent vascular bed, typically a fingertip.

Normal human blood contains two primary absorbers of this light. Deoxygenated hemoglobin, which has given up its oxygen, heavily absorbs the 660-nanometer red light. Oxygenated hemoglobin, carrying a full payload of oxygen, primarily absorbs the 940-nanometer infrared light.

A photodetector on the other side of the finger measures how much of each wavelength makes it through the tissue. The microprocessor then calculates the ratio of the absorbed red light to the absorbed infrared light. This modulation ratio, often called the R-value, is the core metric.

The device compares this R-value against a pre-programmed empirical calibration curve derived from healthy volunteers. If the ratio is low, meaning more infrared light is absorbed, the machine displays a high oxygen saturation, such as 98 percent. The entire system assumes only two types of hemoglobin exist.

The Chemical Sabotage

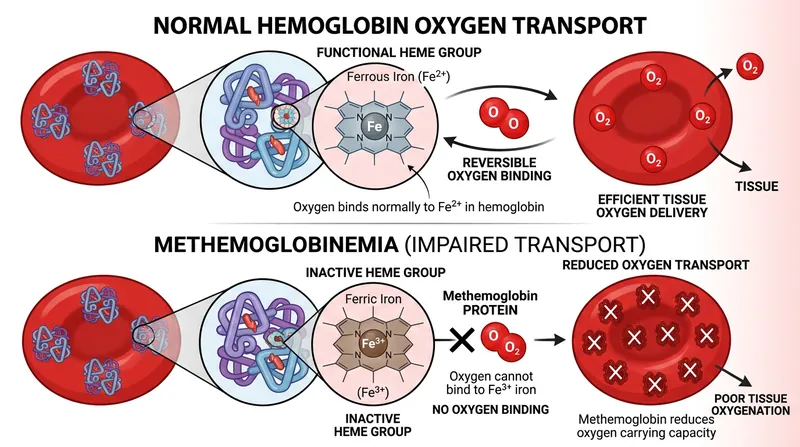

Methemoglobinemia shatters that binary assumption. The condition occurs when the iron atom within the hemoglobin molecule is oxidized from its normal ferrous state, carrying a +2 charge, into a ferric state with a +3 charge. This chemical alteration fundamentally changes the molecule's behavior.[1][2]

Ferric iron cannot bind molecular oxygen. When a significant percentage of a patient's hemoglobin converts to methemoglobin, their blood loses its carrying capacity. The patient suffocates on a cellular level, even if they are breathing pure oxygen through a mask.[1]

The condition also triggers a secondary crisis known as a leftward shift of the oxygen dissociation curve. The presence of oxidized ferric iron alters the shape of the remaining normal hemoglobin tetramers. These normal molecules bind their oxygen so tightly that they refuse to release it to starving tissues.[2]

"Methemoglobin is an altered state of hemoglobin in which the ferrous irons of heme are oxidized to the ferric state, binding a water molecule instead of oxygen," explains a clinical review in the journal StatPearls. This dual mechanism creates a profound functional anemia.[1]

The Mathematical Hard-Stop

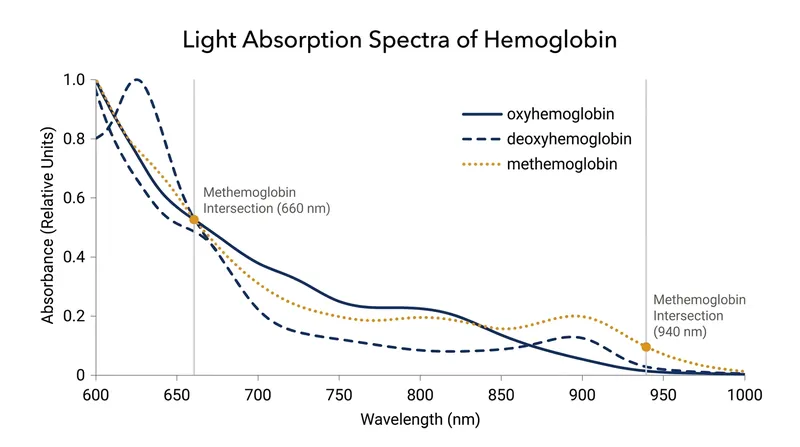

When this altered blood passes under a standard pulse oximeter, the physics of light absorption break the algorithm. Unlike normal hemoglobin, methemoglobin has a molar extinction coefficient of approximately 1.0 at both the 660-nanometer and 940-nanometer wavelengths. It absorbs red and infrared light almost equally.

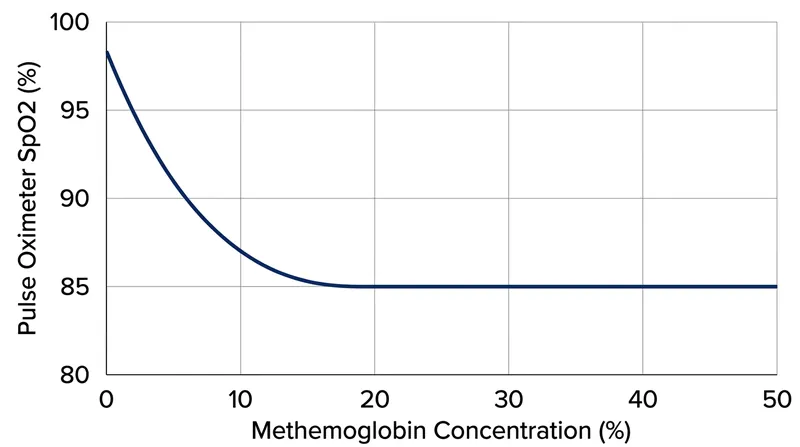

Because the absorption is equal, the ratio of red to infrared light detected by the sensor approaches a perfect 1:1 balance. The microprocessor takes this 1.0 ratio and checks it against its calibration curve. On every standard pulse oximeter, a 1.0 ratio corresponds to an SpO2 of 85 percent.

This creates a dangerous clinical plateau. If a patient has a true arterial oxygen saturation of 40 percent—a rapidly fatal level of hypoxia—the methemoglobin will force the monitor up to 85 percent. The machine artificially reassures the medical team while the patient's brain is starved of oxygen.[1]

Conversely, if the patient is placed on a ventilator and their true functional oxygen saturation reaches 100 percent, the monitor will still read 85 percent. The equal light absorption acts as a mathematical hard-stop, completely decoupling the digital display from the patient's actual respiratory status.[1]

The Diagnostic Illusion

The deception extends beyond the finger probe. When physicians draw an arterial blood gas to investigate the hypoxia, the results often deepen the confusion. The PaO2, which measures the amount of oxygen dissolved directly in the blood plasma, will return completely normal.

"The PaO2 that can be measured from an arterial blood gas is usually normal in the presence of methemoglobinemia as it measures dissolved oxygen, not hemoglobin-bound oxygen," notes a 2023 briefing from the California Poison Control System. The plasma is saturated, but the hemoglobin is useless.

This combination—a cyanotic patient, an SpO2 locked at 85 percent, and a normal PaO2—is the classic diagnostic triad of methemoglobinemia. Yet, because the condition is rare, the discrepancy often leads to delayed treatment as clinicians troubleshoot suspected equipment failures or search for pulmonary embolisms.[1]

The definitive diagnosis requires a different piece of technology: a co-oximeter. Unlike a standard two-wavelength pulse oximeter, a modern co-oximeter uses multiple wavelengths of light to spectrographically identify four distinct types of hemoglobin, including carboxyhemoglobin and methemoglobin.[2]

Identifying the 631-Nanometer Peak

Co-oximeters specifically look for light absorption at 631 nanometers. Methemoglobin has a distinct peak absorbance at this specific wavelength, where normal oxyhemoglobin absorption is negligible. By measuring this third point of data, the machine can accurately quantify the exact percentage of oxidized iron in the blood.[2]

"The method of assaying methemoglobin on a blood gas is measurement of the absorption spectrum using co-oximetry," confirms The Blood Project. This multi-wavelength analysis bypasses the 1:1 ratio trap, providing the true fractional oxygen saturation that emergency physicians need to guide resuscitation.[2]

The condition is most commonly acquired through exposure to specific oxidizing drugs. Benzocaine, a topical anesthetic frequently used during endoscopies, is a notorious trigger. Dapsone, an antibiotic, and various nitrites can also overwhelm the red blood cell's natural reductase enzymes, triggering a rapid spike in methemoglobin.[1]

Once the level exceeds 20 percent of total hemoglobin, patients develop moderate symptoms of hypoxemia, including lethargy and tachycardia. If the concentration surpasses 50 percent, the condition causes seizures, arrhythmias, and coma. Without rapid intervention, the cellular suffocation becomes fatal.[1]

The Antidote's Irony

The primary treatment for severe methemoglobinemia is an intravenous infusion of methylene blue. This compound acts as an artificial electron donor, accelerating the enzymatic reduction of the toxic ferric iron back to its functional ferrous state, rapidly restoring the blood's ability to carry oxygen.[1]

However, the administration of the antidote introduces a final technological irony. Methylene blue is a dark blue dye that heavily absorbs red light at 660 nanometers. When it enters the bloodstream, it mimics the optical signature of deoxygenated hemoglobin.[1]

As a result, the moment the life-saving antidote is injected, the patient's pulse oximeter reading will plummet even further, often dropping into the 60s. The machine registers the sudden spike in 660-nanometer absorption as a catastrophic loss of oxygen, triggering alarms across the resuscitation bay.[1][3]

This transient drop is another optical illusion. The patient is actually recovering, their blood returning to a normal cherry red, even as the monitor screams that they are dying. It is a stark reminder that in modern medicine, treating the patient must always supersede trusting the machine.[3]
