The Wetting Condition: Why a Material's Surface Energy Must Exceed the Adhesive's Surface Tension for a Strong Bond

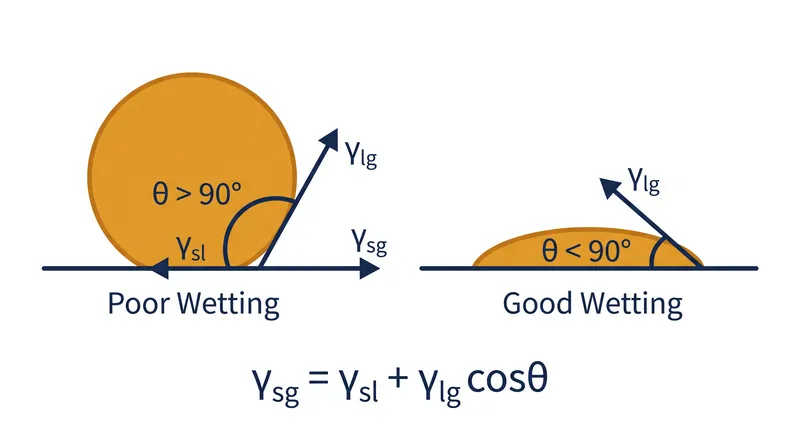

On December 20, 1804, the polymath Thomas Young stood before the Royal Society in London to describe a phenomenon anyone could observe but no one had quantified: a drop of liquid resting on a solid surface. Young noted that the droplet's edge formed a specific, measurable angle where it met the solid, a geometry dictated entirely by the invisible tug-of-war between the liquid's internal cohesion and the solid's pull. That observation birthed the Young Equation, establishing the fundamental law of wetting.[3][5]

The rule he uncovered remains the absolute dictator of modern manufacturing and materials science. Adhesion is not about the chemical strength of a glue in isolation; it is a thermodynamic negotiation between two distinct materials. If the liquid's molecules prefer each other to the solid, they bead up and refuse to bond.[5]

The mechanics of this negotiation rely on two competing forces: the surface energy of the solid and the surface tension of the liquid. As the technical documentation from 3M explicitly states: "For an adhesive to wet out a surface, the surface energy of the substrate must be higher than the surface tension of the adhesive." If that condition is not met, a strong bond is physically impossible.[2]

The numbers behind this rule dictate the behavior of every material we touch. Water has a surface tension of 72 dynes per centimeter at room temperature. Polytetrafluoroethylene, universally known as Teflon, has a surface energy of just 18 dynes per centimeter.[1][4]

Because 72 is vastly greater than 18, water cannot wet Teflon. The water molecules pull inward, beading into a sphere to minimize contact with the low-energy surface. This exact mathematical mismatch is why non-stick pans work, and why gluing Teflon requires highly specialized chemical etching to alter its surface energy before any adhesive is applied.[1][5]

Conversely, clean metals like aluminum, steel, or copper possess surface energies ranging from 500 to over 1,000 dynes per centimeter. They are high-energy surfaces, desperate to share electrons and form bonds with whatever touches them.[2]

When a standard industrial epoxy with a surface tension of 40 dynes per centimeter meets a 500-dyne metal surface, the metal's high energy aggressively pulls the liquid flat. The adhesive "wets out," spreading into a microscopic film that maximizes the contact area and creates a formidable bond.[4]

A persistent counter-argument raised in workshops and engineering forums is that mechanical interlocking—roughing up a surface with sandpaper or a grinder—can bypass the wetting condition entirely by giving the glue physical crevices to grip.[5]

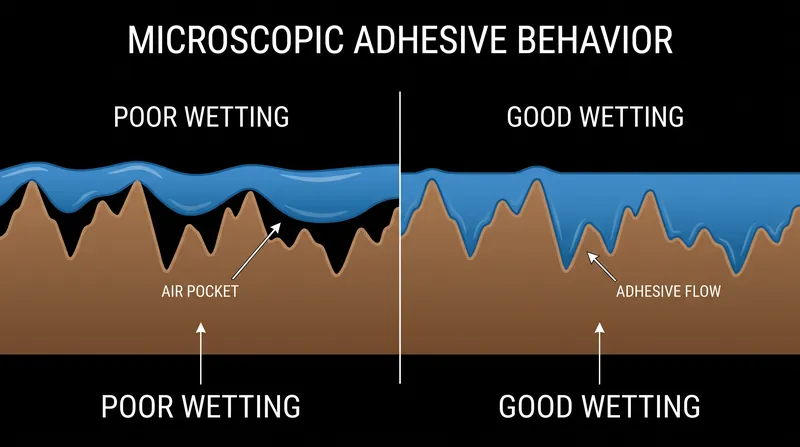

This is a fundamental misunderstanding of the physics. While a rough surface does provide more surface area and physical valleys for an adhesive to lock into, the liquid must still wet the surface to flow into those microscopic pores in the first place.[3]

If the wetting condition is not met, the adhesive simply bridges across the peaks of the roughened surface. It traps air pockets in the valleys below, creating a fragile, stress-concentrated bond that will inevitably fail under load. Roughness only amplifies adhesion if the liquid already wants to wet the solid.[3][5]

This thermodynamic reality forces manufacturers to rely heavily on surface modification rather than endlessly reformulating adhesives to be "stickier." You cannot engineer a liquid adhesive with a surface tension lower than the lowest-energy plastics without severely compromising its cohesive strength.[2][4]

Instead, techniques like corona discharge, flame treatment, or plasma etching are deployed specifically to artificially raise the surface energy of low-energy substrates like polypropylene, which naturally sits at a stubborn 29 dynes per centimeter.[2][4]

AI

By oxidizing the top few nanometers of the plastic, a brief pass with a plasma wand can temporarily bump the material's surface energy above 50 dynes per centimeter. This crosses the threshold, allowing standard adhesives and paints to wet out and bond securely to car bumpers and medical devices.[4][5]

The wetting condition extends far beyond industrial manufacturing. It governs biological adhesion, dictating how marine mussels attach to wet rocks in turbulent tides, and setting the parameters for how synthetic hydrogels must be formulated to bond with human tissue during surgery.[1]

The physics of the contact angle, first measured by Young over two centuries ago, proves that a strong bond is never just about the glue. It is a strict mathematical requirement that the surface must invite the liquid in, and no amount of engineering can force a bond where the thermodynamics refuse it.[3][5]
