Four-Node Consensus Clusters Survive No More Failures Than Three: Why Distributed Systems Mandate Odd-Numbered Quorums

The survival of a distributed database is determined in the exact millisecond a network cable is severed. When a cluster of servers loses contact with one another, the system must immediately count votes to elect a new leader and continue accepting data.[3]

This vote-counting mechanism is the absolute bottleneck of distributed reliability. A system that cannot establish a strict majority across its remaining nodes must halt entirely to prevent data corruption, choosing total downtime over writing conflicting records.[3]

In engineering, redundancy usually scales linearly: two engines are safer than one, and four struts are stronger than three. But distributed consensus algorithms defy this physical intuition, because adding a fourth node to a three-node cluster does not make the system more resilient.[5]

Instead, that fourth node mathematically decreases the cluster's availability during a network partition. It raises the number of votes required to achieve a majority, without increasing the number of server failures the system can safely absorb.[5]

The Mathematics Of Majority

To understand why four is worse than three, you have to look at the formula for a quorum. A quorum is the minimum number of nodes that must agree before a database commits a transaction to disk.[3]

In crash-fault-tolerant systems, a quorum is always defined as a strict majority: the total number of nodes divided by two, plus one. In a three-node cluster, the strict majority is two.[3]

This means the three-node system can safely commit data as long as two nodes are communicating. Consequently, it can tolerate exactly one node failing or disconnecting without halting operations.[1][3]

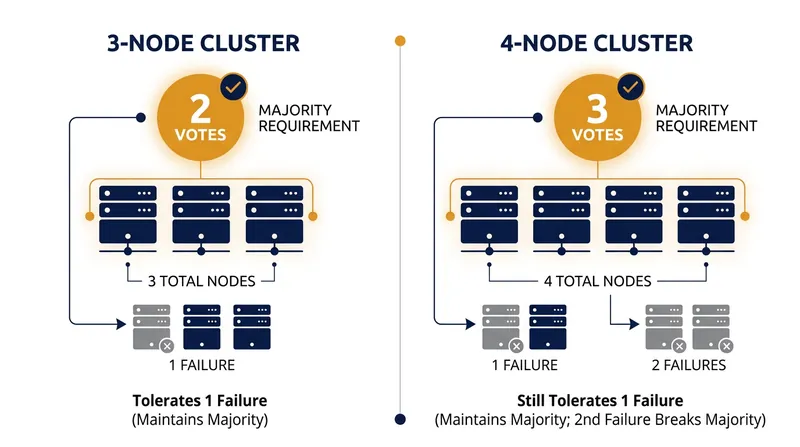

When an engineering team adds a fourth node to that cluster, the total node count becomes four. The strict majority of four is three, meaning the cluster now requires three nodes to agree on every transaction.[5]

Because it requires three nodes to function, the four-node cluster can still only tolerate exactly one failure. If two nodes fail, the remaining two nodes cannot form a majority of three, and the entire database halts.[5]

Why The Fourth Node Is A Liability

The fourth node has provided zero additional fault tolerance. The system has spent money on a fourth server, increased its power consumption, and inherited the exact same fragility as a three-server setup.[5]

The problem with the fourth node extends beyond wasted hardware. It actively degrades the performance of the database, because every write operation now requires an additional network acknowledgment before it can be confirmed to the user.[3]

In their 2014 paper introducing the Raft consensus algorithm, Stanford researchers Diego Ongaro and John Ousterhout established the baseline rule for these systems. "A cluster must be able to tolerate the failure of any minority of its servers," they wrote.[1]

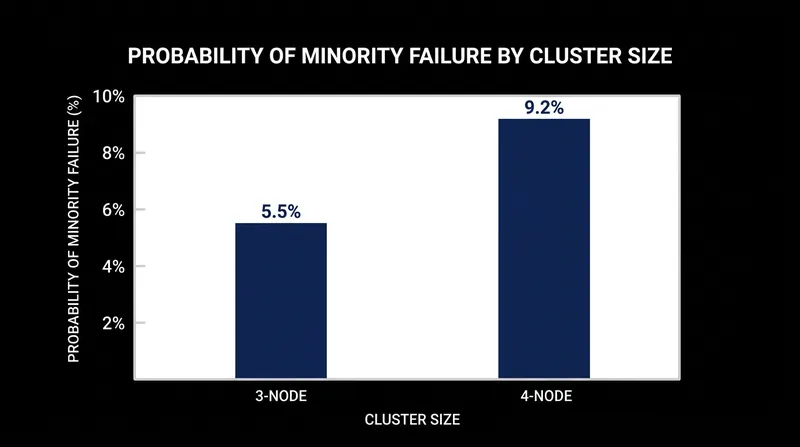

A four-node system increases the probability of that minority failure. With four independent machines, there is a statistically higher chance that at least one of them will experience a hardware fault, a software crash, or a network drop at any given moment.[5]

Because the cluster still halts if a second node fails, the four-node configuration is mathematically less available than the three-node configuration. It has a larger surface area for hardware failure, but identical tolerance for it.[5]

The Split-Brain Problem

The strict requirement for a majority quorum exists to prevent a catastrophic failure mode known as split-brain. If a network partition divides a cluster perfectly in half, the system must ensure that both halves do not independently elect leaders.[3][4]

In a four-node cluster, a network switch failure could easily separate the system into two isolated pairs. Neither pair holds the required majority of three, so both sides will refuse to process transactions, preserving data consistency through downtime.[4]

Odd-numbered clusters naturally prevent perfect ties. If a network partition splits a three-node cluster, one side will have two nodes and the other will have one. The side with two nodes holds the majority and continues operating.[3]

As computer scientist Leslie Lamport explained in his foundational 2001 paper, Paxos Made Simple, the intersection of majorities is the bedrock of distributed truth. "If a majority of the agents must be chosen," Lamport wrote, "then any two majorities have at least one agent in common."[2]

Scaling To Five And Beyond

When a system genuinely needs to survive the simultaneous failure of two machines, the mathematics dictate a jump directly to five nodes. In a five-node cluster, the strict majority is three.[1][3]

Because three nodes are required to commit a transaction, the cluster can safely lose two nodes and continue operating. This relationship is formalized in distributed systems engineering as the equation 2f + 1, where f is the number of failures the system must tolerate.[1]

To tolerate one failure, the cluster needs three nodes. To tolerate two failures, it needs five nodes. To tolerate three failures, it needs seven. Even numbers simply do not exist in the optimal scaling path of a consensus-driven database.[1][5]

Major cloud infrastructure providers enforce this math at the architectural level. Apache ZooKeeper, a centralized service for maintaining configuration information, explicitly warns administrators against deploying even-numbered ensembles in its official documentation.[4]

The Exceptions To The Rule

There are specific architectural patterns where a fourth node is deployed, but never as a voting member of the consensus quorum. Many databases utilize read replicas—servers that receive a stream of committed data but do not participate in leader elections.[3]

A three-node consensus cluster can support dozens of read replicas. If a read replica fails, it does not impact the quorum math, because the core cluster still only requires two out of its three voting members to agree.[3][5]

Another exception involves Byzantine Fault Tolerance, a more complex consensus model used in blockchain networks and aerospace systems. These systems must tolerate nodes that not only crash, but actively lie or send malicious data.[5]

The mathematics of Byzantine failures require a different formula: 3f + 1. To tolerate a single malicious node, a Byzantine system requires four nodes. But in the standard enterprise data center, where servers crash rather than conspire, the odd-numbered quorum remains the absolute law.[5]
