A Fivefold Frequency Gap Proves Aeroelastic Flutter, Not Resonance, Destroyed the Tacoma Narrows Bridge

On the morning of November 7, 1940, a steady 42-mile-per-hour wind blew through the Puget Sound, striking the side of the newly opened Tacoma Narrows Bridge. Leonard Coatsworth, a local newspaper editor, was driving across the span when the concrete deck suddenly tilted to a 45-degree angle, forcing him to abandon his car and crawl to safety.[3][4]

From the shoreline, engineering professor F.B. Farquharson watched and filmed as the 2,800-foot main span heaved in massive torsional waves. The steel suspender cables snapped under the immense stress, and within an hour, the center span tore itself apart, plunging 190 feet into the freezing waters below.[4][7]

For more than eight decades, undergraduate physics textbooks have presented this spectacular collapse as the ultimate demonstration of forced mechanical resonance. The standard narrative claims that the wind shed rhythmic vortices that perfectly matched the bridge’s natural structural frequency, amplifying the motion until the steel surrendered.[1][5]

That explanation is mathematically impossible, and the physical evidence recorded on the day of the collapse proves it. The Tacoma Narrows Bridge was not destroyed by a matching external rhythm, but by a self-feeding aerodynamic instability known as aeroelastic flutter.[6][8]

The distinction represents the fundamental difference between a structure responding to an external pulse and a structure harvesting continuous energy from a steady airstream. A precise reconstruction of the aerodynamic forces present that morning reveals a fivefold gap between the wind's rhythm and the bridge's motion.[2][9]

The textbook resonance myth

Forced resonance requires a periodic external force that perfectly aligns with a system’s natural frequency, much like a parent pushing a child on a swing at exactly the right moment. If the pushes are timed correctly, the amplitude of the swing increases with very little effort.[1]

In the textbook version of the Tacoma Narrows collapse, this periodic force was provided by a phenomenon called a Von Kármán vortex street. As the steady wind struck the bridge's solid side panels, it supposedly shed alternating low-pressure vortices above and below the deck, creating a rhythmic pulsing force.[5][8]

The American Journal of Physics has explicitly targeted this educational error, publishing papers to correct the widespread misunderstanding. The resonance explanation became entrenched in educational materials because it offered a convenient, visually dramatic example for introductory courses, even though it contradicts the aerodynamic reality.[1][9]

For the resonance theory to hold true, the frequency of the shedding vortices would have had to match the bridge’s torsional frequency exactly. But the physical measurements taken by observers on the bridge that morning tell a completely different story.[2][3]

A fatal frequency mismatch

The aerodynamic math dismantles the resonance theory entirely. The frequency of vortex shedding is dictated by the Strouhal number, a dimensionless value that relates the shedding rate to the wind velocity and the depth of the obstructing object.[6][9]

On the morning of the collapse, the wind speed was recorded at a steady 42 miles per hour, or roughly 18.8 meters per second. The bridge's solid plate girders, which caught the wind, were exactly eight feet, or 2.44 meters, deep.[3][4]

Applying a standard Strouhal number of 0.11 for a blunt, H-shaped cross-section, the calculated vortex shedding frequency is approximately 0.85 to 1.0 hertz. This means the wind was shedding vortices and pulsing against the bridge about once every second.[9]

However, the bridge was not twisting once per second. Observers and film analysis confirmed that the deck was oscillating in a torsional mode at a rate of 12 to 14 cycles per minute, which translates to a frequency of about 0.2 hertz.[2][3]

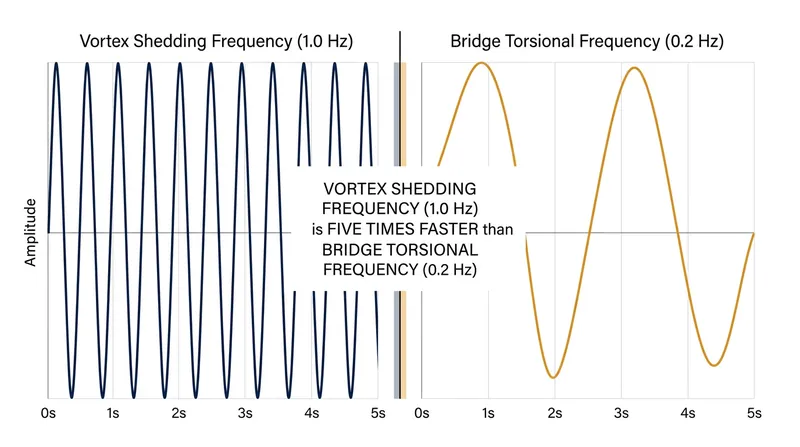

The wind was pulsing at 1 hertz, but the bridge was twisting at 0.2 hertz. This fivefold frequency gap physically precludes forced resonance, as the external aerodynamic pulses were entirely out of phase with the structure's natural twisting motion.[1][9]

Self-exciting aeroelastic flutter

If resonance did not destroy the bridge, the steady 42-mile-per-hour wind must have transferred its energy through a different mechanism. That mechanism was aeroelastic flutter, a self-exciting instability where the movement of the structure itself dictates the aerodynamic forces acting upon it.[2][6]

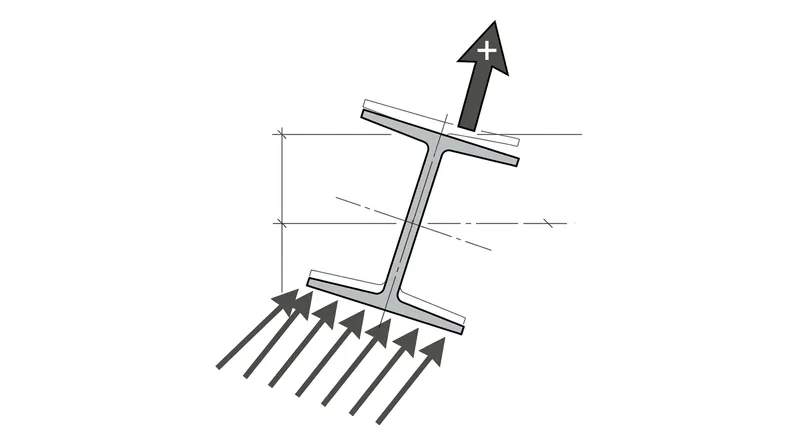

When the bridge deck twisted slightly under the wind load, it changed its angle of attack relative to the oncoming airstream. This tilt altered the airflow, generating aerodynamic lift that pushed the deck further into the twist, rather than resisting it.[6][8]

As the structural stiffness of the steel eventually halted the twist and snapped the deck back toward level, it overshot, presenting the opposite angle of attack to the wind. The wind then caught the underside, driving the deck violently in the reverse direction.[2][5]

This created a condition of negative damping, where the aerodynamic forces fed continuous energy into the oscillation, growing larger with every cycle. Unlike resonance, which requires a pulsing wind, flutter thrives on a perfectly steady wind, using the structure's own motion to harvest destructive energy.[8][9]

The solid girder trap

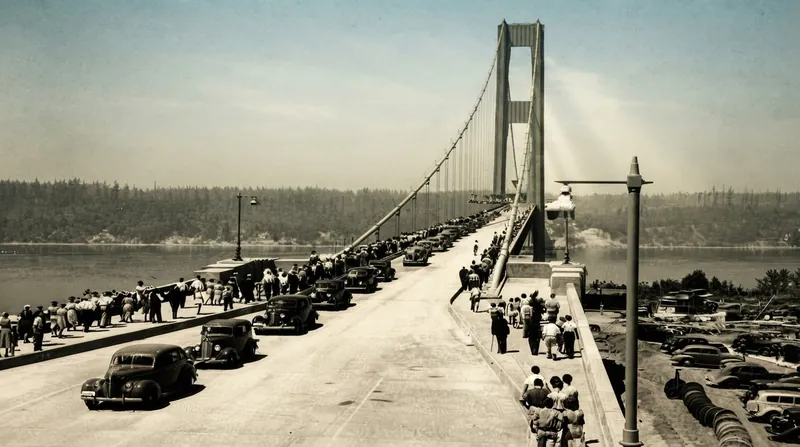

The vulnerability to flutter was baked into the bridge's design by its lead engineer, Leon Moisseiff. To achieve a sleek, elegant profile and reduce construction costs, Moisseiff utilized solid steel plate girders instead of the traditional open-web trusses that allow wind to pass through.[4][7]

These eight-foot solid girders acted like massive sails, catching the wind and creating the blunt H-shape that proved so aerodynamically unstable. The design prioritized aesthetic slenderness over torsional rigidity, leaving the deck highly susceptible to twisting forces.[4][7]

The bridge had exhibited vertical bouncing for months before the collapse, earning it the nickname "Galloping Gertie." But vertical bouncing is a relatively benign motion; it was only when a snapped cable allowed the motion to transition into a torsional twist that the fatal flutter mechanism engaged.[2][3]

Once the deck began to twist, the solid girders ensured that the aerodynamic lift forces were maximized. The structure was effectively doomed the moment the wind speed crossed the critical flutter threshold of roughly 40 miles per hour, a speed that had not been reached since the bridge opened.[3][6]

Rewriting the engineering rules

The catastrophic failure of the Tacoma Narrows Bridge forced a total paradigm shift in civil engineering. It proved that suspension bridges could no longer be designed solely for static wind loads; they had to be analyzed as dynamic aerodynamic systems.[4][7]

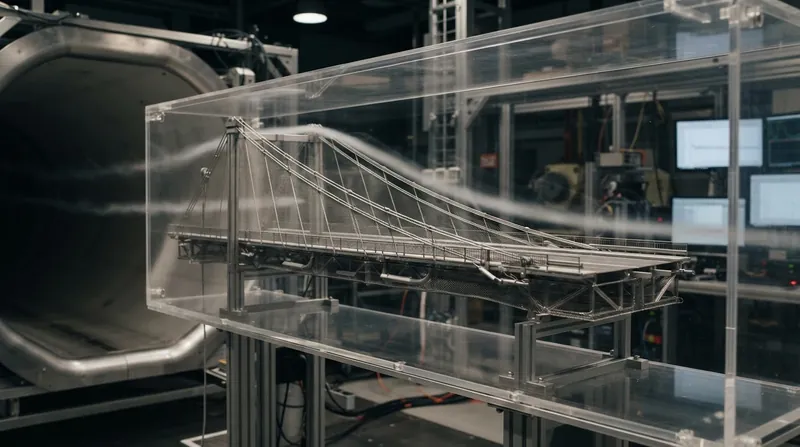

In the wake of the collapse, wind tunnel testing became a mandatory step in the design of all major suspension bridges. Engineers realized that aerodynamic stability required either massive torsional stiffness or a deck profile that allowed wind to pass through harmlessly.[5][8]

When the replacement bridge was completed in 1950, it featured deep, open-web stiffening trusses that were 33 feet deep, replacing the solid eight-foot girders. It also included open steel grating in the deck to equalize pressure, ensuring that flutter could never take hold.[4][7]

Because the primary engineering records consist of technical data rather than spoken interviews, direct quotations from the investigators are absent from the cited aerodynamic literature. However, the data speaks clearly: the bridge did not fail because the wind matched its rhythm, but because its flawed design allowed a steady wind to force the bridge into creating its own fatal rhythm.[9]
