Sub-30-Percent Operating Loads Deprive Diesel Piston Rings of Sealing Pressure, Leaking Raw Fuel

A standard hydraulic O-ring seals tighter as fluid pressure rises, using the system's own force to expand against its housing. Diesel piston rings rely on the exact same self-energizing principle, but they require the violent pressure of combustion to force the metal outward against the cylinder wall.[1][6]

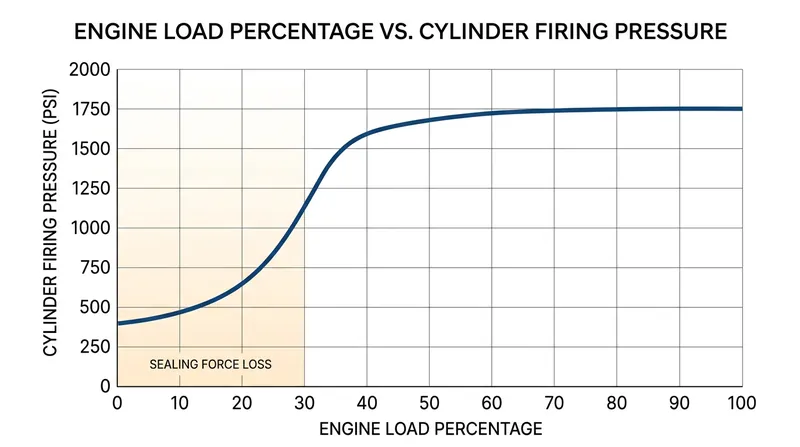

When a diesel generator or marine engine operates at less than 30 percent of its rated load, that violent pressure never materializes. The firing pressures drop significantly, leaving the tapered compression rings resting loosely in their grooves without the necessary outward force.[1][2]

Without that outward mechanical pressure, the ring-to-wall sealing integrity becomes entirely insufficient. The physical barrier between the combustion chamber and the crankcase effectively vanishes, opening a two-way corridor that allows fluids to migrate where they do not belong.[1]

This mechanical relaxation triggers a cascading failure known throughout the industry as "wet stacking" or "slobbering." Unburned diesel fuel and lubricating oil easily bypass the relaxed compression rings, migrating freely upward into the combustion chamber and out into the exhaust tract.[2]

The thermal deficit

The mechanical sealing failure is immediately compounded by a simultaneous thermal deficit. Diesel engines are explicitly designed to work hard and run hot, relying on high operational loads to maintain the elevated temperatures required for complete combustion.[2][3]

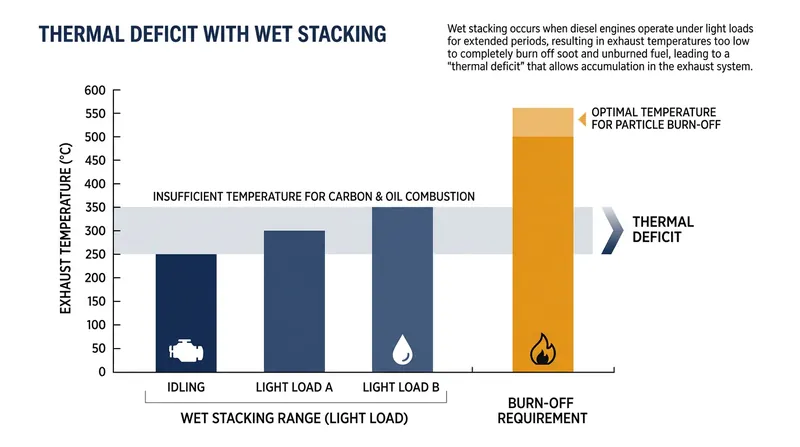

At sub-30-percent loads, diesel exhaust temperatures typically hover between 250 and 350 degrees Celsius. This relatively cool environment is entirely insufficient to combust the heavy lubricating oil fraction and raw diesel fuel that is now bypassing the piston rings.[2][6]

Instead of burning off cleanly, the escaped fluids accumulate rapidly. They coat the exhaust manifold, the turbocharger turbine blades, and the interior of the exhaust stack with a thick, tar-like substance that stubbornly resists normal exhaust flow.[2]

To an untrained observer, the resulting black liquid dripping from the exhaust stack looks exactly like a catastrophic oil leak. In reality, it is a complex mixture of raw unburned fuel, crankcase oil, and suspended carbon particulates.[2][6]

Carbon packing and cylinder scoring

The visible slobbering from the exhaust stack is only the external symptom of a much more destructive internal process. Inside the cylinder itself, the incomplete combustion leaves behind dense, abrasive carbon deposits that threaten the engine's core architecture.[2][3]

These carbon particulates migrate directly into the piston ring grooves, packing tightly into the empty spaces above and behind the top compression ring. This solid accumulation eliminates the precise thermal clearances engineered into the aluminum piston assembly.[1][2]

The true danger arrives when the compromised engine is finally commanded to run at full load. The sudden influx of fuel generates massive heat, causing the aluminum piston to expand rapidly as it reaches its designed operating temperature.[1][3]

Because the ring grooves are now packed with solid carbon, the compression rings have absolutely no room to retract. They are forced violently outward against the cylinder wall with immense, unyielding pressure as the piston expands.[1]

This severe metal-to-metal contact instantly grinds away the cylinder wall's cross-hatching—the microscopic hone pattern required to retain lubricating oil. Without that critical oil film, internal friction spikes exponentially across the entire stroke.[1][6]

In severe cases, this sequence leads directly to catastrophic ring seizure. The engine literally tears itself apart from the inside, a fatal mechanical failure that can occur after just a few dozen hours of chronic underloading.[1][2]

Turbocharger and emissions impact

The damage from wet stacking extends well beyond the cylinder block. The exhaust gases must pass through the turbocharger, which relies on precise aerodynamics and extreme rotational speeds to force compressed air into the engine intake.[3]

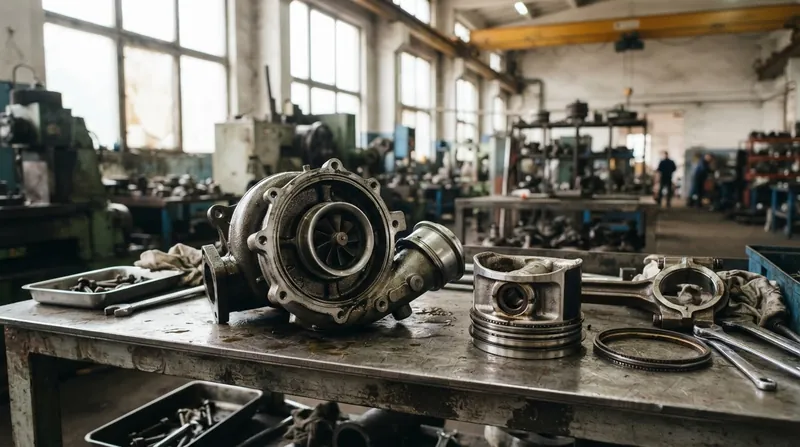

As the wet, tar-like mixture flows through the exhaust system, it heavily coats the turbocharger turbine blades. This added mass throws the high-speed turbine completely out of balance and severely alters its engineered aerodynamic profile.[2][3]

A fouled turbocharger cannot deliver the required boost pressure, further degrading the engine's air-to-fuel ratio. This creates a destructive feedback loop: less air means even cooler, dirtier combustion, which produces even more wet stacking residue.[3][6]

The environmental consequences of this failure are equally severe. The unburned fuel and oil drastically increase the output of particulate matter and unburned hydrocarbons, easily violating strict local and federal emissions standards.[4][5]

The U.S. Environmental Protection Agency mandates ultra-low sulfur diesel and advanced aftertreatment systems to reduce particulate emissions by up to 90 percent. Wet stacking rapidly destroys these expensive exhaust aftertreatment devices through severe carbon fouling.[4][5]

Diesel particulate filters and diesel oxidation catalysts become permanently clogged by the wet carbon sludge. Replacing these ruined emission control components often costs fleet operators tens of thousands of dollars per engine.[4]

Load banking and remediation

Preventing this mechanical and thermal collapse requires strict adherence to minimum load requirements. Major engine manufacturers explicitly warn against operating heavy-duty diesel generators below 30 percent capacity for any extended periods, regardless of the application.[2][3]

For prime and standby power applications, the industry standard is to maintain loads between 50 and 85 percent of the nameplate rating. This ensures firing pressures remain high enough to seal the rings and exhaust temperatures stay hot enough to burn off residues.[2][6]

When facility demands cannot provide sufficient electrical load, operators must employ artificial load banks. These massive resistor arrays convert the generator's electrical output directly into heat, forcing the engine to work harder and maintain optimal pressures.[2]

The National Fire Protection Association explicitly addresses this vulnerability in emergency power systems. NFPA 110 guidelines require backup generators to be exercised monthly under loads of at least 30 percent to prevent wet stacking from compromising emergency readiness.[2][6]

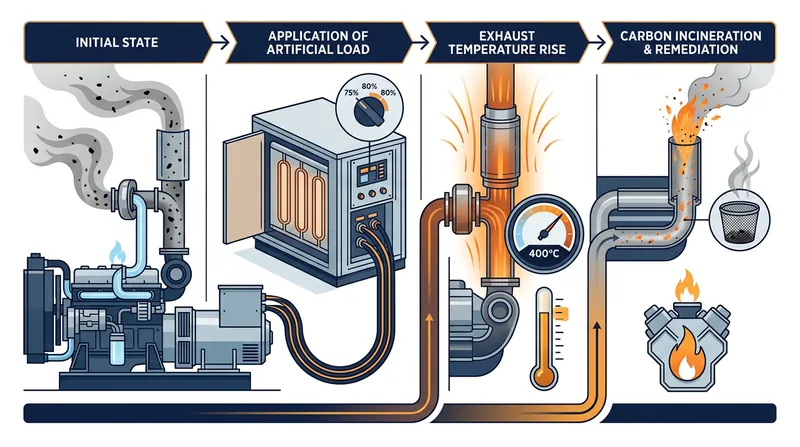

If an engine has already begun to wet stack, remediation requires a carefully controlled burn-off procedure. The engine is connected to a load bank and run at 75 to 80 percent capacity for several continuous hours.[2]

As the exhaust temperatures climb above 400 degrees Celsius, the accumulated carbon and oil deposits slowly incinerate. If caught early enough, this sustained high-heat process can completely restore the engine's performance before permanent cylinder scoring occurs.[2][6]

The engineering trade-off

The vulnerability to wet stacking is not a design flaw, but an unavoidable consequence of diesel engine physics. The extreme compression ratios required for diesel ignition demand heavy, highly durable piston rings that can survive massive forces.[1][3]

Engineers could theoretically design softer rings with higher static tension that seal perfectly at idle. However, those same flexible rings would create excessive friction and wear out rapidly under the immense pressures of full-load operation.[1][6]

The modern tapered compression ring is a carefully calculated compromise. It sacrifices low-load sealing capability in exchange for exceptional durability and efficiency when the engine is actually doing the heavy work it was built for.[1]

Ultimately, a heavy-duty diesel engine is a precision tool optimized entirely for continuous, strenuous labor. Treating it gently by running it at low loads is ironically the fastest and most certain way to destroy it.[3][6]
