Subtracting Maximum Logits Prevents Floating-Point Overflow: How the Log-Sum-Exp Identity Preserves Softmax Invariance in Neural Network Implementations

Subtracting the maximum value from a set of numbers before exponentiating them stops computers from crashing when calculating probabilities. This mathematical trick, known as the Log-Sum-Exp identity, exploits the shift-invariance of the Softmax function to prevent floating-point overflow in neural networks.[4][8]

Without this specific algebraic substitution, training any modern artificial intelligence model would be mathematically impossible on standard hardware. The raw outputs of a neural network, called logits, routinely grow large enough that their exponentials exceed the maximum limits of computer memory.[3][5]

When a computer attempts to calculate a number larger than its memory architecture can represent, it returns an error called Not a Number, or NaN. In machine learning, a single NaN value instantly cascades through the network, permanently destroying the training process.[3]

The Floating-Point Boundary

The root of this instability lies in how computers represent real numbers using the IEEE 754 floating-point standard, established in 1985. A standard 32-bit floating-point number allocates eight bits to the exponent, capping its maximum representable value at approximately 3.4028 multiplied by ten to the 38th power.[3]

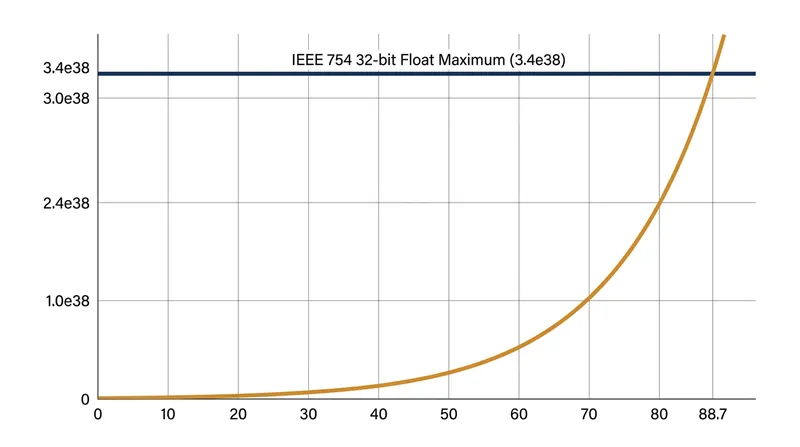

The Softmax function, which converts raw network scores into a probability distribution that sums to one, requires exponentiating every input. Because exponential functions grow incredibly fast, an input value of just 88.72 pushes the result past that 32-bit maximum threshold.[3][4]

"In a digital computer, math is not continuous but discrete, and the boundaries are absolute," explains the MIT Press text on numerical computation. "If we evaluate the softmax function naively, we can easily encounter numerical overflow or underflow."[3]

Neural network layers frequently output raw logit values well into the hundreds or thousands during the early, chaotic phases of training. If a network outputs a logit of 100, calculating the exponential yields a number with 43 zeros, instantly triggering a catastrophic overflow.[4]

Exploiting Softmax Invariance

To bypass this hardware limitation, software engineers rely on a fundamental algebraic property of the Softmax equation known as shift invariance. If you add or subtract the exact same constant value from every input in the set, the final output probabilities do not change at all.[2][4]

This works because exponentiating a subtracted value is mathematically identical to dividing by that value's exponential. When the same division happens in both the numerator and the denominator of the Softmax fraction, the terms cancel out perfectly, leaving the ratios intact.[4]

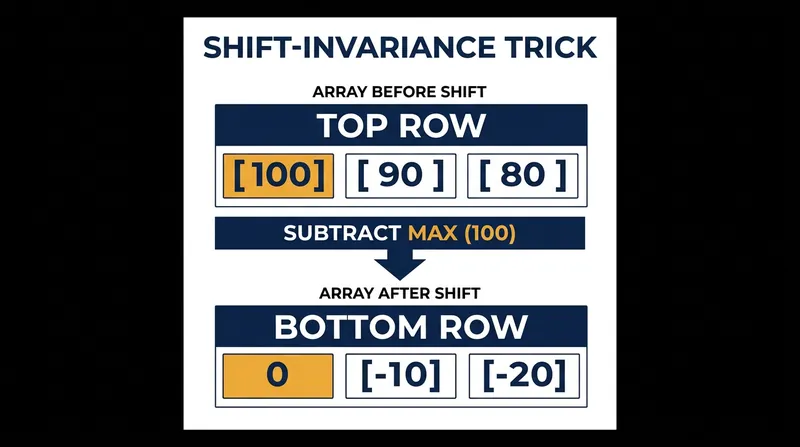

By deliberately choosing the absolute maximum value in the input array as the constant to subtract, developers guarantee that the largest resulting input is exactly zero. The exponential of zero is one, a perfectly safe and stable number for any processor to handle.[5][8]

Every other number in the adjusted array becomes a negative value, because subtracting the maximum from anything smaller yields a negative result. The exponential of any negative number is a fraction between zero and one, completely eliminating the possibility of an overflow error.[5][8]

"The softmax function is invariant to adding a constant to all its arguments," notes mathematician Nick Higham in his 2021 analysis of the algorithm. "This property is heavily exploited in practical implementations to avoid overflow."[2]

Managing Underflow and Loss

While subtracting the maximum prevents numbers from growing too large, it introduces the opposite problem: numbers shrinking too small. When a network calculates the exponential of a large negative number, such as negative 100, the result is so close to zero that the computer simply rounds it down to exactly zero.[3]

This phenomenon, known as underflow, is generally harmless when calculating final probabilities, because a zero percent chance is a valid output. However, neural networks do not just calculate probabilities; they must also calculate the logarithm of those probabilities to measure their error during training.[3][5]

Taking the logarithm of exactly zero results in negative infinity, which immediately crashes the training loop just as violently as an overflow. To solve this, engineers merge the Softmax function with the cross-entropy loss function, creating a combined operation that never explicitly calculates the vulnerable probabilities.[5]

This combined operation relies on the Log-Sum-Exp function, a mathematical identity that calculates the logarithm of a sum of exponentials. By applying the same maximum-subtraction trick inside the logarithm, the function safely computes the loss without ever exposing the raw zeros to the logarithm operator.[8][9]

"The log-sum-exp function occurs frequently in machine learning," Higham writes in his 2021 breakdown of the identity. "It is essential to compute it in a way that avoids overflow and underflow, which a naive implementation will almost certainly suffer from."[9]

How Frameworks Hide the Math

Because these numerical traps are so absolute, modern deep learning frameworks never trust end users to implement the math themselves. Libraries like PyTorch and TensorFlow bake the maximum-subtraction identity directly into their low-level C++ and CUDA backend code.[7]

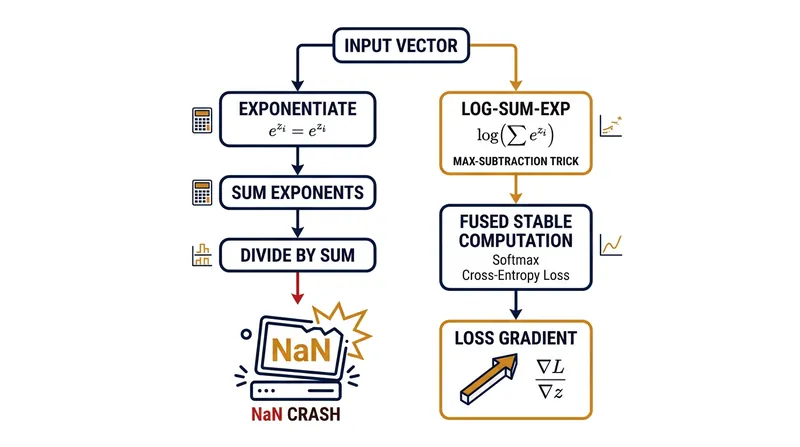

When a developer calls a function like cross-entropy loss in PyTorch, the framework does not sequentially run a Softmax followed by a logarithm. Instead, it routes the data through a fused kernel that executes the Log-Sum-Exp identity in a single, numerically stable hardware pass.[7]

Scientific computing libraries provide dedicated functions specifically for this operation, ensuring that researchers outside of machine learning can also access the stabilized math. The SciPy library for Python includes a dedicated Log-Sum-Exp module, which automatically handles the maximum-logit subtraction under the hood for any array of numbers.[6]

"A naive implementation of LogSumExp is numerically unstable," explains machine learning researcher Lei Mao in his 2018 technical logbook. "We have to use the mathematical trick to prevent numerical overflow and underflow during the computation."[8]

This abstraction means that millions of developers train neural networks every day without ever realizing their raw output values are being quietly shifted. The frameworks silently intercept the explosive logits, subtract the maximums, and return the correct gradients without exposing the mathematical sleight of hand.[5][7]

Precision in the GPU Era

The necessity of the Log-Sum-Exp identity has only grown more critical as the artificial intelligence industry shifts toward lower-precision hardware formats. To train massive language models faster, companies now routinely use 16-bit floating-point numbers, which require half the memory of the traditional 32-bit standard.[1]

A 16-bit float sacrifices massive amounts of dynamic range, capping its maximum representable value at a mere 65,504. In this constrained format, the exponential function overflows when the input reaches just 11, making naive Softmax calculations literally impossible on modern AI accelerators.[1]

Even newer formats, like the Brain Floating Point standard developed by Google, trade precision for range but still rely entirely on shift invariance to function. Without the maximum-subtraction identity, the entire hardware paradigm of modern AI training would collapse under the weight of its own exponential growth.[1][10]

Researchers continue to study the exact error bounds of these stabilized functions to ensure they do not introduce subtle rounding errors during massive training runs. A recent analysis published in the Oxford Academic journal of numerical analysis proved that the standard Log-Sum-Exp implementation remains highly accurate across all edge cases.[1]

The study confirmed that while subtracting the maximum value prevents catastrophic failure, it does introduce a tiny, strictly bounded rounding error due to machine epsilon. However, this microscopic loss of precision is entirely negligible compared to the catastrophic failure of a NaN overflow.[1]

The success of modern deep learning rests heavily on this single, elegant piece of high school algebra. By recognizing that probabilities are relative rather than absolute, engineers bypassed a hard physical limit of computer memory, allowing neural networks to scale to their current massive proportions.[3][10]

As models move toward even more constrained 8-bit floating-point formats, the margin for numerical error will shrink further. The mathematical guarantees provided by the Log-Sum-Exp identity will dictate exactly how far hardware designers can compress memory before the fundamental math of probability breaks down.[1][10]

The transition to these ultra-low precision formats requires constant re-evaluation of how basic arithmetic operations are ordered in silicon. Every time a new chip architecture reduces the exponent bit-width, the maximum-subtraction trick becomes the only mathematical bridge keeping the training loss from instantly diverging to infinity.[1][10]
