How Given-When-Then Syntax Translates Hoare Triples Into Executable Software Tests

The Given-When-Then syntax converts ambiguous software requirements into executable tests by forcing teams to define exact starting states, specific triggers, and measurable outcomes. It adapts a 1969 mathematical proof system called Hoare logic into plain English, allowing business analysts to write criteria that testing frameworks can run automatically.[2][6]

Software development frequently derails because product managers write requirements in natural language, while computers require binary state instructions. A request like "users should be able to reset passwords easily" provides no testable boundaries, leaving engineers to guess the intended behavior and testers to manually verify subjective interpretations.[6]

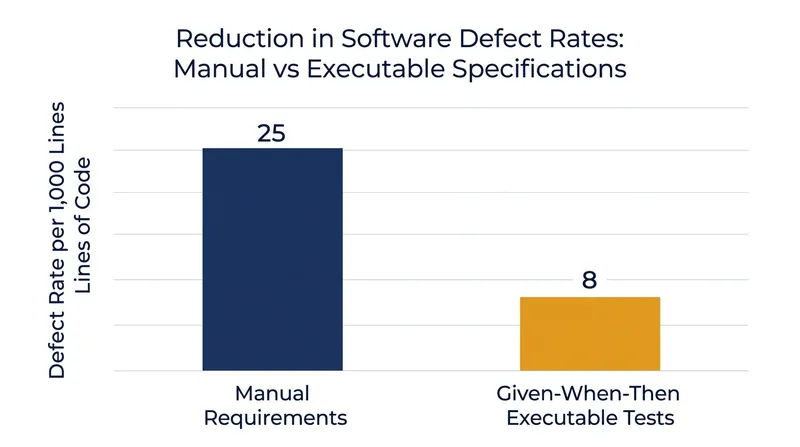

This translation gap historically resulted in high defect rates and misaligned features. Teams needed a mechanism that was readable by non-technical stakeholders but structured enough to be parsed by an automated testing compiler without requiring manual intervention or continuous clarification meetings.[5]

The Mathematical Foundation

The solution originated in a 1969 paper by computer scientist Tony Hoare, who published an axiomatic basis for computer programming. Hoare proposed that program correctness could be proven using a strict three-part mathematical structure known as a Hoare triple, which evaluates state changes.[1]

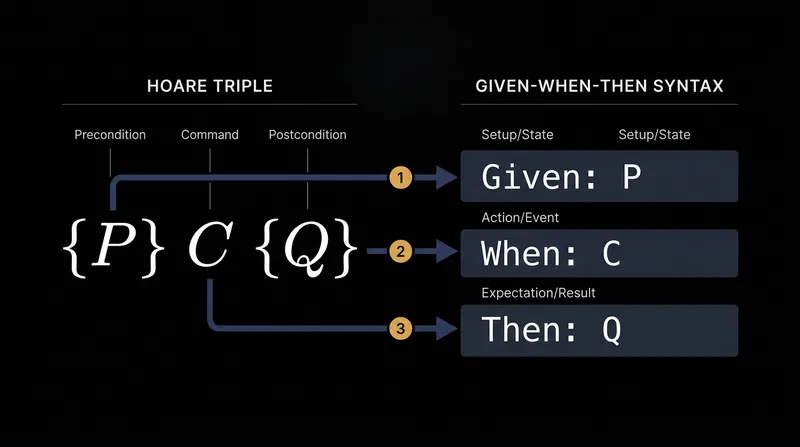

The formula is expressed as {P} C {Q}. In this structure, {P} represents the precondition, C is the command or execution, and {Q} is the postcondition. If the precondition is demonstrably true, executing the command must guarantee that the postcondition becomes true.[1]

This logic forms the bedrock of formal verification in computer science. It shifts the focus from observing a program's output to mathematically proving that a specific state transition occurred exactly as intended within the system architecture, eliminating behavioral ambiguity.[1][6]

Translating Logic to Language

Decades later, software engineer Dan North introduced Behavior-Driven Development in 2006. North noted that programmers "were getting bogged down in the mechanics of testing," so he translated Hoare's mathematical triples into the linguistic Given-When-Then format to refocus teams on system behavior.[2]

The "Given" clause establishes the precondition. It defines the exact state of the system before any action occurs, such as "Given a user account exists with the email address test@example.com and a zero balance." This sets the strict boundary for the test.[2][4]

By forcing stakeholders to articulate this starting state, the syntax eliminates hidden assumptions. A developer no longer has to guess whether the user is already authenticated, or if the database requires existing records to process the request, because the precondition explicitly demands it.[6]

The "When" clause represents the command execution. It isolates the single behavior, event, or trigger being tested, such as "When the user requests a password reset link from the login screen." This clause must remain singular to maintain the integrity of the test.[2][4]

Executable Specifications

The "Then" clause asserts the postcondition. It dictates the observable changes in the system state, such as "Then the system sends a recovery email containing a 24-hour temporary access token." This provides the measurable outcome that determines whether the software functions correctly.[2][4]

Because this three-part structure is highly predictable, testing frameworks like Cucumber and SpecFlow can parse the text using regular expressions. They bind the English phrases directly to underlying automation code written in languages like Java, Python, or Ruby, bridging the language gap.[4]

This parsing engine transforms acceptance criteria from passive documentation into active, executable specifications. The criteria themselves become the automated tests that verify the software, running continuously in the deployment pipeline to catch regressions immediately before code reaches production environments.[5][6]

Software architect Martin Fowler notes that this structure has become the dominant way to specify behaviors. "It's a style of writing tests that has become very popular," Fowler writes, providing a ubiquitous language that developers and business analysts share without friction.[3]

The Role of Ubiquitous Language

The transition to this syntax also forces a cultural shift within product teams. By standardizing the vocabulary used to describe system behavior, it creates what domain-driven design practitioners call a ubiquitous language across the entire organization, aligning technical and business objectives.[3]

This shared vocabulary prevents the traditional silo effect where business analysts write one document, developers write separate code, and testers write entirely different verification scripts. The Given-When-Then scenario serves as the single source of truth for all three disciplines simultaneously.[5]

Common Implementation Failures

Despite its structural simplicity, teams frequently fail when they pack too many actions into the "When" clause. A test with multiple triggers violates the command isolation principle of the original Hoare triple, creating unnecessary complexity and masking the root cause of failures.[1][6]

When a scenario reads "When the user logs in and adds an item and checks out," a failure becomes impossible to diagnose. The automated test cannot determine which of the three commands caused the postcondition to fail, rendering the test useless for debugging.[6]

Another frequent error is coupling the syntax to the user interface rather than the business logic. Writing steps like "When I click the green submit button" creates brittle tests that break whenever a designer changes the layout, requiring constant maintenance.[4][6]

Effective criteria describe the business intent, not the mechanical interaction. "When the customer submits their payment details" remains valid regardless of whether the interface uses a green button, a swipe gesture, or a voice command, preserving the longevity of the test suite.[4]

Scaling With Data Tables

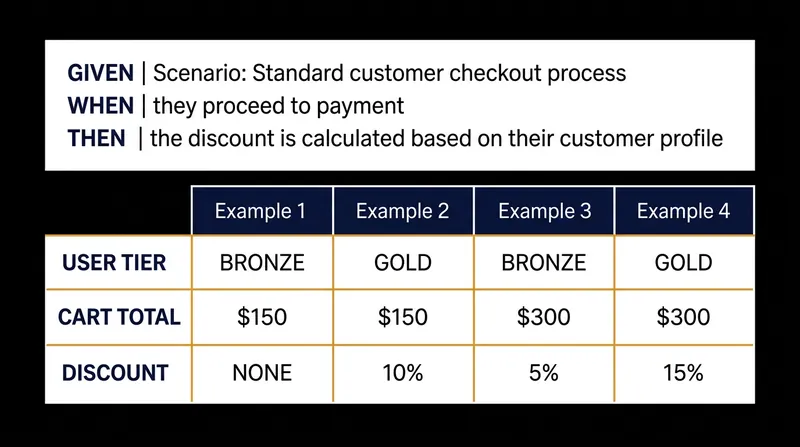

Modern implementations of the syntax allow teams to inject data tables directly into the scenarios. This means a single Given-When-Then block can test dozens of edge cases by iterating through different input variables automatically, massively expanding test coverage with minimal effort.[4][5]

A pricing engine test might use a table containing 50 different combinations of user tiers, cart totals, and discount codes. The framework runs the same Hoare triple 50 times, verifying the postcondition against each specific precondition to ensure comprehensive validation.[1][4]

When written correctly, these executable specifications serve as living documentation for the software architecture. As the system evolves, the tests update, ensuring the documentation never falls out of sync with the actual codebase running in production, solving a decades-old engineering problem.[3][5]

The syntax succeeds because it enforces mathematical rigor without requiring mathematical notation. It proves that the most effective way to test complex logic is often to state the boundaries in plain, structured language, allowing computers to verify what humans intend to build.[6]
