The Mechanics of Transistor Scaling: Comparing Planar, FinFET, and Gate-All-Around Architectures

The most common misconception about semiconductor scaling is that smaller transistors automatically mean faster clock speeds. In reality, as the industry shrinks components down to the width of a few atoms, the primary battle is no longer about speed—it is about control.[10]

For decades, the tech industry has marketed processor advancements using "nanometer" nodes. Consumers are sold on the promise of 5nm, 3nm, and now 2nm chips. But these numbers are pure marketing language; they no longer correspond to any physical measurement on the chip itself. The labels simply indicate a new generation of power and density improvements.[4]

To understand what is actually happening inside modern silicon, one must look at the fundamental architecture of a transistor. At its core, a transistor is a simple switch. Current flows from a "source" to a "drain" through a "channel," and a "gate" sits on top of that channel to turn the flow of electricity on or off.[5]

For the first fifty years of the integrated circuit, the industry relied on planar transistors. These were flat, two-dimensional structures where the gate sat only on the top surface of the channel, pressing down like a foot on a garden hose.[4]

Planar designs worked brilliantly until the industry tried to shrink them below the 20-nanometer threshold. At that microscopic scale, the distance between the source and the drain became so short that the gate could no longer effectively pinch off the flow of electrons.[1]

This phenomenon, known as the "short-channel effect," threatened to end Moore's Law. Even when the planar transistor was supposedly turned off, electrons would leak through the silicon substrate beneath the gate, generating massive amounts of waste heat and draining battery life.[6]

The solution was a radical architectural shift: the Fin Field-Effect Transistor, or FinFET. Introduced commercially in 2011, the FinFET took the flat silicon channel and turned it on its side, creating a three-dimensional "fin" that protruded from the surface of the chip.[4]

By raising the channel into a fin, engineers could drape the gate over three sides of it—the top, the left, and the right. This dramatically increased the contact area between the gate and the channel, restoring electrostatic control and drastically reducing leakage current.[5]

FinFETs carried the industry through a decade of explosive growth, enabling the smartphone revolution and the rise of massive cloud data centers. But as manufacturers pushed toward the 5nm and 3nm marketing nodes, the FinFET architecture began to hit its own physical wall.[2]

To squeeze more performance out of a FinFET, designers had to make the fins taller and thinner. However, a tall, fragile fin is structurally unstable during the manufacturing process. Furthermore, the bottom of the fin—the part closest to the silicon substrate—remained relatively poorly controlled by the gate, allowing leakage to creep back in.[1]

As scaling pushes into the sub-5nm regime, the variability in FinFET geometry becomes a severe bottleneck. The parasitic capacitance between closely packed fins also begins to negate the performance benefits of shrinking them, meaning chips get hotter without getting proportionally faster.[2]

This physical roadblock has forced the industry into its next major transition: the Gate-All-Around (GAA) transistor, often implemented as nanosheets. If a FinFET is a raised fin wrapped on three sides, a GAAFET slices that fin horizontally into a stack of distinct ribbons or sheets.[6]

The gate material is then deposited so that it completely surrounds each individual silicon sheet—top, bottom, left, and right. This 360-degree coverage provides the ultimate electrostatic control over the channel, virtually eliminating the short-channel effects that plague sub-5nm FinFETs.[3]

Beyond leakage control, GAA nanosheets offer a crucial architectural advantage: variable width. In a FinFET design, the height of the fin is fixed by the foundry's manufacturing process. If a chip designer wants more drive current, they have to add more discrete fins, which wastes valuable silicon real estate.[8]

With GAA nanosheets, designers can simply widen the sheets. A wider sheet allows more current to flow, optimizing for high performance, while a narrower sheet minimizes power consumption. This flexibility allows engineers to fine-tune different blocks of a processor for specific tasks without changing the underlying manufacturing steps.[8]

However, the transition to GAA is not a magic bullet for exponential speed gains. It is fundamentally a defensive geometry change. The primary benefit of GAA is that it allows the chip to operate at lower voltages while maintaining stability, which is critical for managing the thermal density of modern AI accelerators and mobile processors.[9]

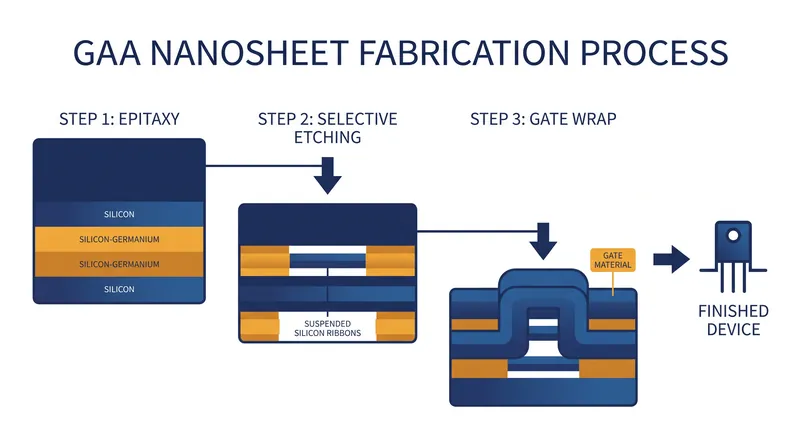

The manufacturing challenges of GAA are also staggering. Creating the nanosheets requires a process called epitaxy, where alternating layers of silicon and silicon-germanium are grown atom by atom. Then, an isotropic etch must selectively remove the silicon-germanium layers, leaving only the fragile silicon sheets suspended in mid-air before the gate material is wrapped around them.[7]

As the industry masters GAA over the next few years, researchers are already looking toward the next horizon. Concepts like Complementary FETs (CFETs), which stack p-type and n-type transistors vertically, and the use of novel 2D materials like transition metal dichalcogenides, are being explored for the sub-1nm era.[9]

Ultimately, the evolution from planar to FinFET to GAA demonstrates the sheer force of engineering required to maintain the illusion of Moore's Law. The marketing labels will continue to shrink, but the reality is a constant, grueling battle against the fundamental limits of atomic physics.[10]
