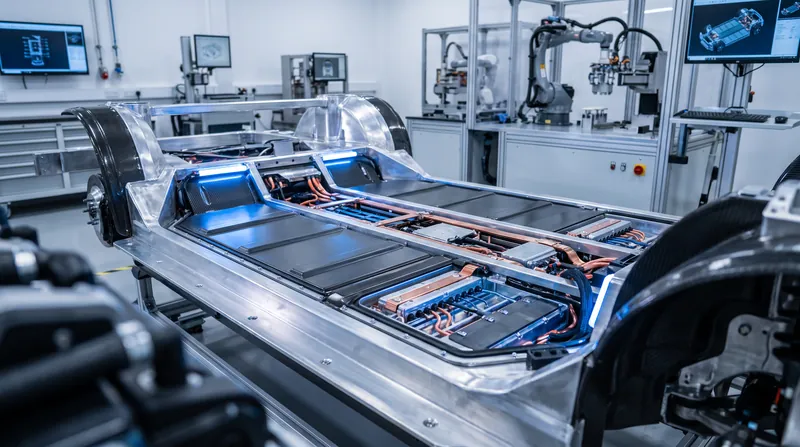

The Mechanics of EV Battery Architecture: Comparing Structural Integration and Modular Design

The automotive industry is currently caught in a fundamental engineering tug-of-war. On one side, the relentless drive for lighter, longer-range electric vehicles demands that every ounce of dead weight be eliminated from the chassis. On the other, a growing secondary market and an independent repair ecosystem require vehicles that can be diagnosed and fixed rather than discarded. At the center of this tension is the battery pack, the single most expensive and heaviest component in an electric vehicle.

For the past decade, the architecture of EV batteries has remained relatively standardized. Automakers borrowed design philosophies from consumer electronics, grouping individual cylindrical or prismatic cells into discrete, manageable modules [1]. These modules were then bolted into a larger protective housing, which was finally attached to the bottom of the vehicle. This "Russian nesting doll" approach provided a high degree of safety and manufacturing flexibility, but it introduced a massive amount of structural redundancy.[1]

The primary advantage of this traditional modular architecture is its serviceability. Because the cells are compartmentalized, a localized failure does not necessarily condemn the entire energy storage system. Independent repair technicians can isolate a failing module, disconnect the high-voltage busbars, and swap out the compromised unit to restore full vehicle operation [5]. This component-level repair pathway has been crucial for keeping older electric vehicles on the road and out of salvage yards.[5]

However, that modularity comes with a severe physical penalty. The intermediate packaging layers—the module frames, the internal wiring, the thermal interfaces, and the heavy outer pack enclosure—consume valuable physical volume without storing any energy. Traditional modular architectures typically achieve a space utilization efficiency of just 40 to 50 percent [1]. The rest of the volume is occupied by structural support and dead air, forcing automakers to build larger, heavier vehicles to achieve acceptable driving ranges.[1]

In response to this inefficiency, the industry is undergoing a paradigm shift toward cell-to-pack (CTP) and cell-to-chassis (CTC) architectures [2]. These structural battery designs eliminate the intermediate module layer entirely. Instead of grouping cells into separate boxes, manufacturers bond the cells directly into the main pack housing or, in the case of CTC, directly into the vehicle's load-bearing frame [3].[2][3]

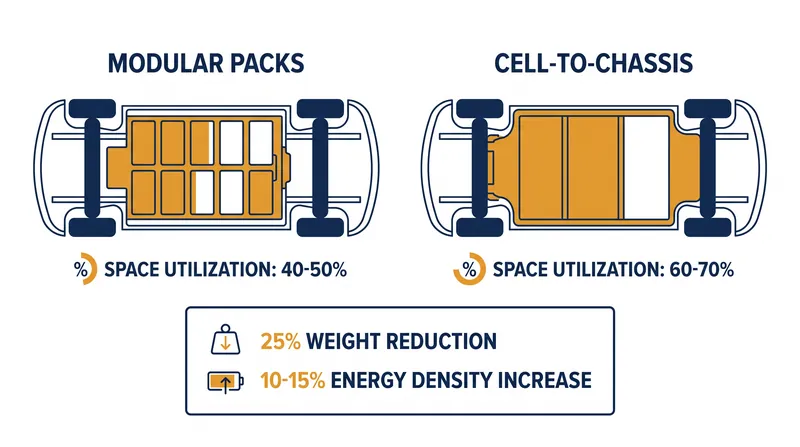

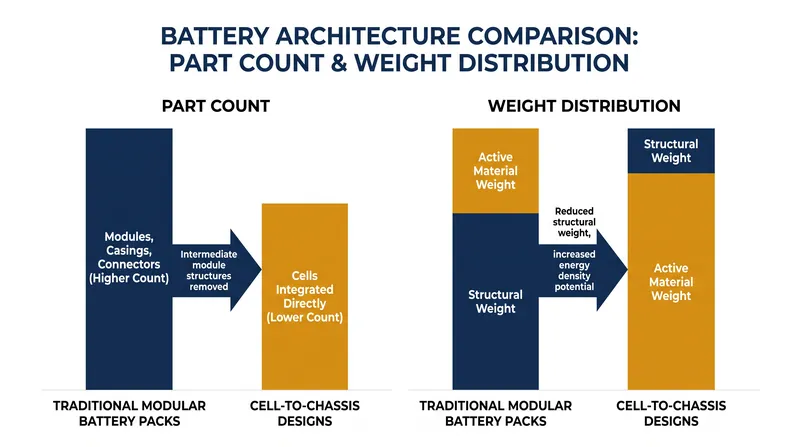

The engineering benefits of this structural integration are profound. By removing hundreds of redundant parts, automakers can dramatically increase the packaging density of the battery. Space utilization efficiency jumps to between 60 and 70 percent, allowing for a 10 to 15 percent increase in energy density at the vehicle level without expanding the physical footprint of the battery [1].[1]

Furthermore, structural batteries fundamentally alter the mechanical physics of the vehicle. Rather than acting as a heavy, bolted-on accessory, the battery becomes a dual-purpose component that provides torsional rigidity and shear transfer [6]. Researchers estimate that eliminating the separate battery enclosures and utilizing the cells as load-bearing elements can reduce the overall weight of the vehicle by up to 25 percent [4]. This concept of "massless energy storage" means the vehicle requires less electricity to accelerate its own mass, creating a virtuous cycle of efficiency.[4][6]

Yet, the very integration that makes structural batteries so efficient also creates a looming lifecycle crisis. To achieve the necessary rigidity, the cells in a CTC architecture are permanently bonded to the floor pan using high-strength structural adhesives [6]. The battery pack is no longer a serviceable component housing discrete sub-assemblies; it is a monolithic, load-bearing foundation that forms the physical cabin floor [5].[5][6]

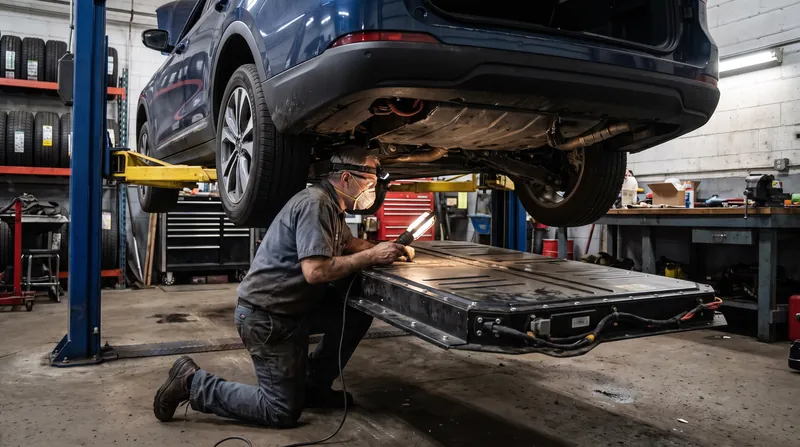

This monolithic design effectively ends the era of component-level repair. If a single internal cell suffers a localized failure, or if a minor underbody strike damages a section of the pack, there is no engineered pathway to extract the affected cells [2]. Technicians cannot simply unbolt a module; accessing the cells requires physically cutting into and destroying the structural integrity of the entire chassis [5].[2][5]

Consequently, a failure that might have cost a few thousand dollars to repair in a modular system now necessitates a complete pack replacement, which can easily exceed the residual value of the vehicle. Independent repair facilities warn that this shift toward disposable architectures will consolidate repair monopolies back to the original equipment manufacturers, as only the factory will have the tooling to replace a structural floor pan [5].[5]

The insurance industry is already beginning to grapple with the downstream consequences of structural integration. When the battery is the chassis, crash energy is distributed through the energy storage system itself [1]. While this can enhance occupant protection, it also means that minor collisions are more likely to compromise the battery's structural integrity. Higher write-off rates for minor accidents could drive up insurance premiums, potentially offsetting the upfront manufacturing cost savings that structural batteries provide.[1]

Ultimately, the choice between modular and structural architectures represents a trade-off between immediate performance and long-term sustainability. Automakers prioritizing maximum range and manufacturing scalability are rapidly adopting cell-to-chassis designs, accepting the serviceability penalties as a necessary cost of progress. Conversely, manufacturers focused on fleet operations and total cost of ownership are retaining modularity, betting that the ability to repair a vehicle will ultimately prove more valuable than shedding a few hundred pounds of structural weight.

As the electric vehicle market matures, this architectural divergence will define the secondary market. Buyers of used EVs will have to weigh the superior range and handling of structural vehicles against the catastrophic financial risk of an out-of-warranty battery failure. The industry has proven it can build a more efficient battery; the question now is whether it can build one that survives a decade of real-world use.
