Energy Density, Thermal Management, and Cost: The Trade-Offs of Cylindrical, Prismatic, and Pouch EV Cells

The fundamental constraints of an electric vehicle's performance are locked in at the electrode packaging stage. Before chemistry is finalized or cooling systems are designed, the decision to wind electrodes into a steel cylinder, stack them into a rigid aluminum prism, or seal them in a flexible polymer pouch determines the thermal architecture and structural limits of the entire pack. This geometric selection matters because heat dissipation, volumetric efficiency, and automated assembly scale at different rates depending on the shape, dictating not just how much energy a vehicle can carry, but how quickly it can safely discharge it under sustained loads.[6]

The global market is currently bifurcating along these geometric lines as manufacturers optimize for different priorities. In 2025, cylindrical cells captured 53.5% of the global battery cell market, driven heavily by entrenched 18650 and 2170 production lines alongside the ramp-up of the larger 4680 format. Meanwhile, prismatic cells accounted for 46.46% of the pack market, heavily favored by Chinese manufacturers utilizing cell-to-pack architectures. Pouch cells, though holding a smaller overall share, are projected to expand at a 25.8% compound annual growth rate through 2031 as automakers seek lower stack heights for aerodynamic performance.[3]

The primary trade-off between these formats lies in the tension between volumetric efficiency and thermal management. Prismatic cells, with their rectangular aluminum cases, stack tightly together with minimal void space. This geometry achieves 85% to 90% space utilization within a pack, allowing automakers to fit more active material into a given footprint. Cylindrical cells, by contrast, inherently create void spaces when packed together due to their circular cross-section, limiting their volumetric efficiency to roughly 75% to 80%. "For equivalent cell energy density, prismatic packs achieve 5-15% better volumetric density at pack level," notes Evolve Battery.[1]

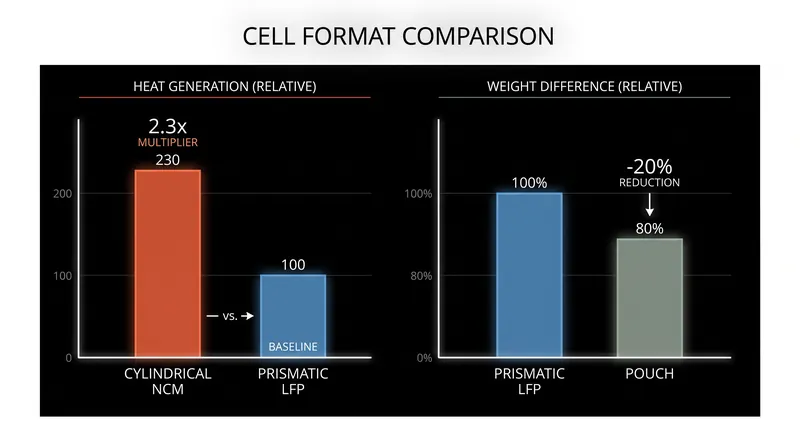

However, that 20% to 25% void space in a cylindrical pack is not wasted volume; it functions as a necessary thermal relief channel. A 2026 teardown study conducted by Fraunhofer IKTS and RWTH Aachen University compared a 46-millimeter by 80-millimeter cylindrical cell using nickel-cobalt-manganese chemistry against an elongated prismatic cell using lithium-iron-phosphate chemistry. The researchers found that at a 1C discharge rate, the cylindrical cell generated approximately 2.3 times more heat per unit volume than the prismatic alternative, requiring a significantly more robust cooling infrastructure to maintain safe operating temperatures.[2]

Cross-referencing this heat generation rate against the packing efficiencies of the two formats reveals why certain chemistries are locked to specific shapes. While cylindrical cells generate over twice the heat per unit volume under load, their inherent void space and high surface-to-volume ratio allow liquid cooling ribbons to snake between the cells, making their high heat generation manageable. Prismatic cells, which pack 10% to 15% more densely, would trap this level of heat, dictating their pairing with lower-exothermic chemistries like lithium-iron-phosphate to prevent thermal runaway.[6]

Manufacturing maturity and cost represent the second major axis of divergence. Cylindrical cells benefit from over two decades of highly automated mass production experience, originally scaled for consumer electronics. This maturity yields strong cell-to-cell consistency and lower defect rates, expanding gross-margin headroom for automakers. The winding process for cylindrical electrodes is highly automated, though the sheer number of cells required for a vehicle pack—often numbering in the thousands—adds complexity to wire bonding and busbar welding, requiring sophisticated assembly lines to manage the interconnections.[1][3][5]

Prismatic cells reduce this assembly complexity by requiring far fewer units per vehicle. A single prismatic cell typically ranges from 20 to over 100 ampere-hours in capacity, compared to the 2 to 5 ampere-hours typical of standard cylindrical formats. This reduces the number of electrical connections required, simplifying the busbar layout and lowering assembly time for low-volume production. The trade-off is that the stacking process for prismatic electrodes is historically less automated and more prone to manufacturing variations than cylindrical winding, though production techniques are rapidly improving.[1][5]

Pouch cells eliminate the rigid metal casing entirely, utilizing a flexible aluminum-polymer laminate packaging. This absence of a hard shell gives pouch cells the highest gravimetric energy density, weighing up to 20% less than cylindrical aluminum-cased cells of equivalent capacity. However, this flexibility introduces structural vulnerabilities. Pouch cells require external mechanical support to prevent swelling during operation and are more susceptible to physical damage, necessitating reinforced module-level protection that can offset their initial weight advantages and complicate the overall pack design.[5]

The industry is increasingly moving toward structural integration, where the cells themselves bear mechanical loads. Prismatic cells are highly suited for cell-to-pack architectures, eliminating traditional module structures to increase energy density and reduce weight. Cylindrical formats are also adapting, with the larger 4680 cells designed specifically to serve as structural components within the vehicle chassis. As automakers balance these competing demands, the selection of a cell format remains a highly specific engineering calculation rather than a search for a universal standard, with each geometry carving out distinct operational niches.[3][4][6]
