The Mechanics of Agrivoltaics: How Co-Locating Solar and Agriculture Alters Crop Microclimates

The transition to a decarbonized electric grid requires an unprecedented amount of physical space. Utility-scale solar farms are land-intensive, and the flat, cleared, sun-drenched acreage they require is often the exact same land prized by the agricultural sector. This dynamic has sparked a growing tension between energy developers and rural communities, framing clean energy and food security as a zero-sum competition for real estate.

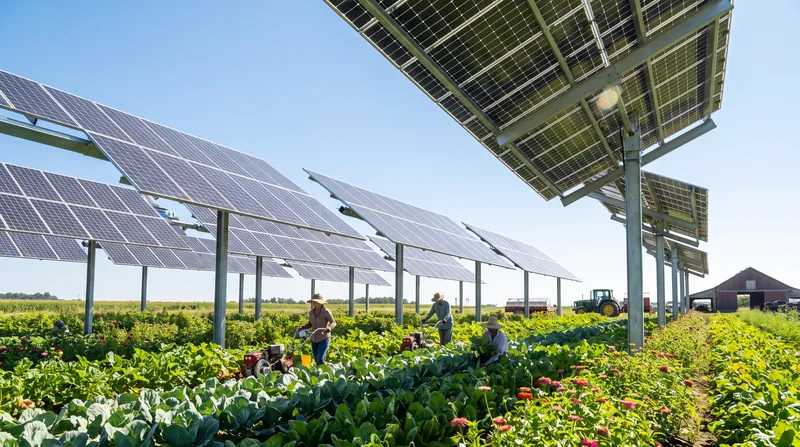

Agrivoltaics—the practice of co-locating solar photovoltaic infrastructure and agricultural production on the same parcel of land—attempts to resolve this tension. By elevating solar panels on taller racking systems and spacing the rows wider apart, developers allow farm equipment, livestock, and crops to operate directly underneath and between the arrays.

The approach is rapidly moving from experimental pilot projects to commercial deployment. In the United States, the footprint of agrivoltaic installations more than doubled between 2020 and 2024, growing from 27,000 acres to over 62,000 acres. These dual-use sites now host roughly 10 gigawatts of capacity, enough to power 1.5 million homes while keeping the underlying land in active agricultural rotation.[1]

The mechanics of agrivoltaics extend far beyond simply sharing space. The physical presence of the solar canopy fundamentally alters the microclimate of the field below. The panels intercept a portion of the incoming photosynthetically active radiation, casting moving shadows across the crops throughout the day. This shading lowers the ambient air and soil temperatures during peak afternoon heat.[2]

This temperature regulation directly impacts the water cycle of the farm. By shielding the soil from direct, intense sunlight, the panels significantly reduce the rate of evaporation. Studies indicate that agrivoltaic setups can achieve water savings of up to 30%, allowing soil to retain moisture for longer periods between irrigation cycles or rainfall events.[2]

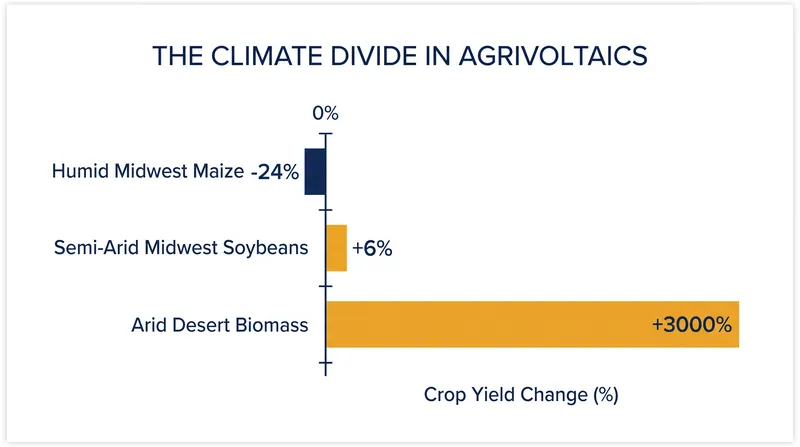

However, the agricultural benefits of this microclimate are not universal; they are highly dependent on the local climate and the specific crop being grown. A comprehensive process-driven model developed by researchers at the University of Illinois quantified these trade-offs across different regions of the American Midwest, revealing a stark climate divide in how crops respond to the solar canopy.

In the humid eastern Midwest, where water is generally abundant and sunlight is the primary limiting factor for growth, the shading from the panels proved detrimental to sun-demanding crops. The reduction in photosynthesis led to a 24% decrease in maize yields and a 16% drop in soybean yields, ultimately lowering the net agricultural profit for farmers in those specific zones.

Conversely, as the climate shifts westward into the semi-arid Midwest, the calculus changes. In these drier regions, the primary stressor on crops is not a lack of sunlight, but a lack of water and excessive heat. The shading provided by the solar arrays alleviated this water stress, moderating maize yield losses and actually increasing soybean yields by 6%.

The benefits of agrivoltaic microclimates become most pronounced in extreme arid and desert environments. In these regions, the intense thermal conditions and prolonged droughts impose severe constraints on traditional agriculture. The solar canopy acts as a protective shield, lowering soil temperatures and cutting evaporation rates by roughly half compared to fully exposed control areas.[2]

Under these harsh desert conditions, the reduction in heat stress allows plants to maintain their stomata open for longer periods, facilitating equal or greater daily carbon assimilation despite receiving less total sunlight. Reviews of desert agrivoltaic systems have documented localized biomass increases up to 30 times higher than in adjacent unshaded areas, transforming marginal land into viable agricultural zones.[2]

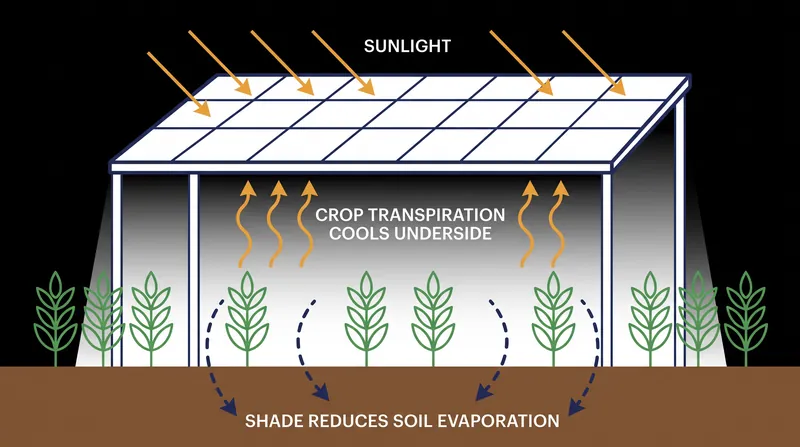

The relationship between the crops and the panels is also symbiotic. Just as the panels protect the plants, the plants actively cool the panels. As crops transpire—releasing water vapor into the air—they create a localized cooling effect beneath the array. Because solar photovoltaic cells lose efficiency as their operating temperature rises, this evaporative cooling can marginally increase the electrical output of the panels during hot summer months.[3]

To maximize this dual-use efficiency, modern agrivoltaic sites often employ specialized hardware. Bifacial solar panels, which capture light from both the front and the back, are particularly effective. They generate electricity from the direct sunlight above while also harvesting the ambient light reflected off the crops and soil below, boosting overall energy yields.[2]

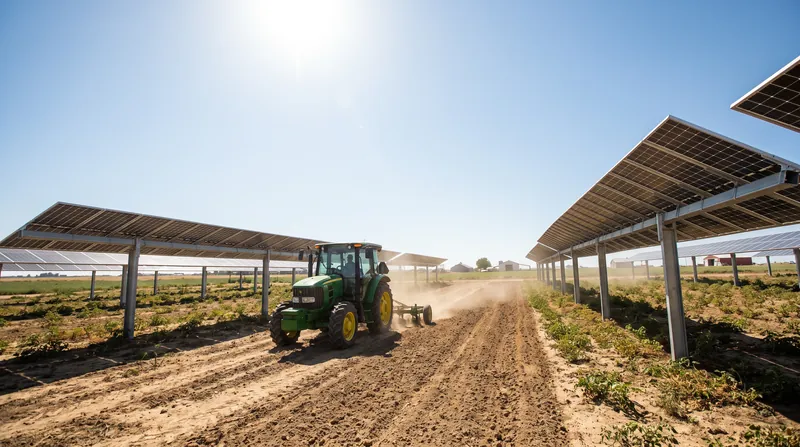

Despite the agronomic and electrical synergies, the widespread adoption of agrivoltaics faces structural and economic hurdles. Elevating panels to a height of 10 to 15 feet to accommodate tractors and combine harvesters requires significantly more steel and deeper foundations. These reinforced mounting structures increase the upfront capital cost of the solar installation compared to standard, ground-hugging utility arrays.[1][3]

Furthermore, the integration of farming and energy production requires complex operational coordination. Solar developers must design their row spacing to match the turning radius of the specific farm equipment used on site, and maintenance schedules for panel cleaning or inverter repairs must be timed to avoid disrupting planting or harvesting seasons.[3]

For policymakers and grid planners, agrivoltaics represents a critical compromise. By allowing rural communities to retain active farmland, generate a stable secondary income stream from electricity sales, and protect crops from increasingly extreme weather, the technology shifts the narrative from land competition to system circularity.[1]
