The Mechanics of Standing Desks: Comparing Single-Motor vs. Dual-Motor Actuators

If you are buying a standing desk for a laptop and a single monitor, a single-motor frame will save you money and work perfectly fine. If you use multiple heavy monitors, a desktop PC, or lean heavily on your desk, you need a dual-motor frame. That is the short version. The difference between the two comes down to mechanical load distribution, transition speed, and long-term actuator wear.[4]

The mechanical distinction is straightforward. A single-motor desk uses one electric motor mounted to one leg. To raise the other leg, it drives a steel hex rod that spans the width of the desk, turning a gear on the opposite side. A dual-motor desk places a dedicated, independent motor inside each leg, eliminating the crossbar and the mechanical linkage entirely.[3]

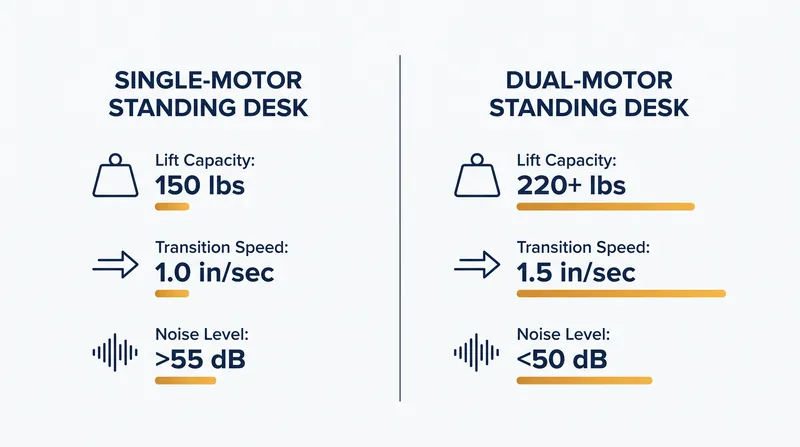

That hex rod introduces friction. Engineering tests demonstrate that single-motor systems lose approximately 15% to 20% of their power output simply overcoming the mechanical resistance of the transmission rod. This power loss directly impacts the desk's maximum lift capacity, which typically caps out around 150 pounds for single-motor models.[3]

To understand if 150 pounds is enough, you have to calculate the real-world load. The ANSI/BIFMA X5.5 standard requires primary office work surfaces to support a minimum functional load of 100 pounds. A standard dual-monitor setup with heavy-duty monitor arms, a mechanical keyboard, a laptop dock, and the physical weight of the desktop itself easily approaches 70 to 80 pounds.[1]

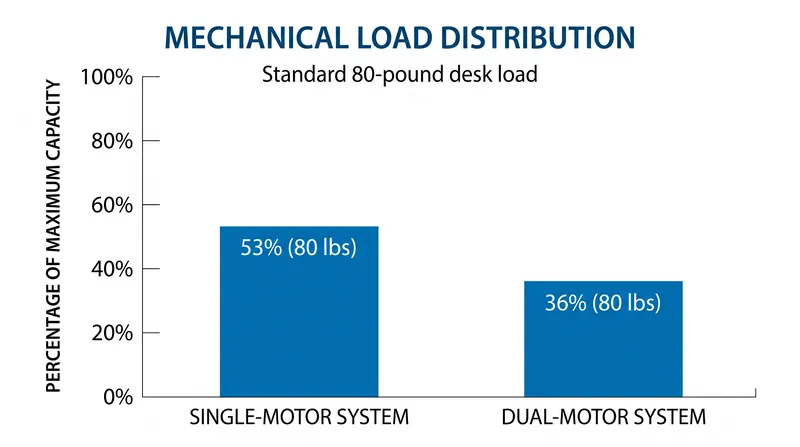

When a single-motor desk lifts an 80-pound load, it is operating at over 50% of its maximum capacity. If a user leans on the desk while it moves, that load spikes. Operating an electric motor near its maximum rated capacity increases heat generation, strains the internal gearing, and accelerates mechanical wear over the lifespan of the desk.[3]

Dual-motor systems, by contrast, typically offer lift capacities exceeding 220 pounds. Under the same 80-pound load, a dual-motor frame is operating at just 35% of its capacity. The independent actuators share the burden, resulting in less heat, less strain, and a significantly longer operational lifespan before component failure.[3]

This power surplus also translates to transition speed. Single-motor desks generally move at under 1.0 inch per second. Dual-motor desks routinely hit 1.5 inches per second. While a half-inch per second sounds trivial, it dictates whether a desk takes 20 seconds or 12 seconds to move from sitting to standing height.[3]

That eight-second difference dictates user behavior. Ergonomic compliance studies indicate that users are significantly less likely to utilize the sit-stand feature of their desk if the transition feels sluggish or interrupts their workflow. Faster, smoother transitions directly correlate with higher daily utilization rates.[2]

Acoustics present another trade-off. The mechanical linkage in a single-motor desk tends to produce a grinding or whining noise as the hex rod spins, often exceeding 55 decibels. Dual-motor systems, lacking the crossbar, produce a smoother, lower-pitched hum that typically stays below 50 decibels, making them less disruptive in shared office environments.[3]

The final consideration is assembly and maintenance. Single-motor frames require the user to perfectly align the hex rod during assembly; if the rod is inserted while one leg is slightly higher than the other, the desk will remain permanently unlevel. Dual-motor frames use a central control box that electronically synchronizes the legs, automatically leveling the desk during its initial calibration sequence.[3]
