Comparing Artificial Lift Systems: Trade-Offs Between ESPs, Sucker Rod Pumps, and Gas Lift

Artificial lift is the critical mechanism that keeps the global oil and gas industry flowing. When a reservoir is first tapped, natural geological pressure is often sufficient to force hydrocarbons to the surface. But as that pressure inevitably depletes over time, the hydrostatic column of fluid in the wellbore begins to push back, requiring the introduction of surface energy to maintain flow.[1]

Across a typical well portfolio, deploying and maintaining these lift systems represents the single largest operating expense an operator will carry. The engineering challenge is particularly acute in unconventional shale plays, where first-year production decline rates routinely hit 40% to 80%.[5]

This rapid depletion means the lift method that perfectly matches a well's physics on day one will likely be wildly oversized by month twelve. Operators are forced to navigate a complex, multi-decade cost and revenue commitment, balancing capital expenditure against the need for maximum fluid drawdown.[5]

The three dominant architectures in this space are Electric Submersible Pumps (ESPs), Sucker Rod Pumps (SRPs), and Gas Lift systems. Each system operates on fundamentally different mechanical principles, and choosing incorrectly carries severe financial penalties that can permanently impair a well's net present value.[1][5]

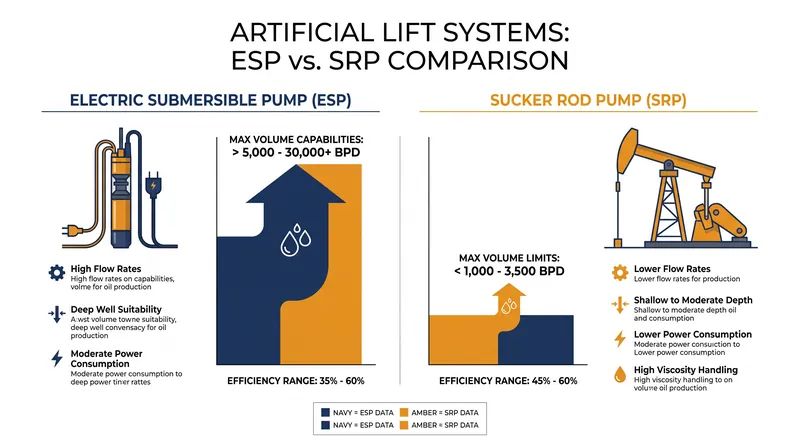

Electric Submersible Pumps represent the heavy artillery of artificial lift. An ESP is a multistage centrifugal pump installed at the bottom of the production tubing, driven by a downhole electric motor supplied with power via a heavily armored surface cable.[2]

Their primary advantage is sheer volumetric throughput. A properly sized ESP can move massive volumes of fluid, making them the default choice for early-life unconventional wells or high-water-cut environments where extreme fluid movement is required to extract the remaining oil.[2][5]

However, that capacity comes with significant fragility and cost. ESPs are highly sensitive to gas slugging and abrasive solids like frac sand, which can rapidly degrade the pump's internal impellers. In the harsh downhole environments of resource plays, an ESP's run life can be severely truncated.[2][5]

With high initial installation costs and expensive workover requirements when the downhole motor fails, relying on ESPs requires a robust capital budget and high commodity prices to justify the intervention frequency. When production volumes decline to a level where an ESP is no longer economically viable, operators frequently transition to Sucker Rod Pumps.[5]

The SRP—visually recognized by the iconic surface pumpjack—is a positive displacement system. A surface motor drives a reciprocating beam, which moves a long string of metal sucker rods connected to a downhole pump plunger. As the plunger moves up and down, it physically lifts discrete columns of fluid to the surface.[3]

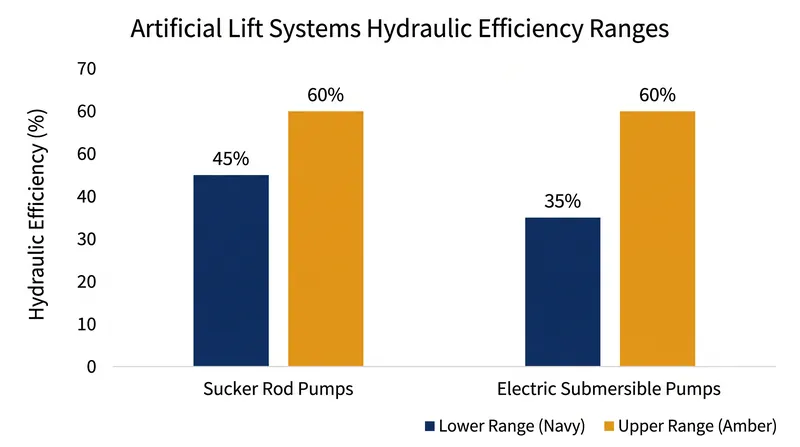

Sucker rod systems are mechanically simpler and boast higher hydraulic efficiency than ESPs, typically converting 45% to 60% of input energy into fluid lift, compared to the 35% to 60% range of centrifugal pumps. They also handle sand and solids far better than ESPs.[5]

However, their physical architecture strictly limits their maximum volume. Furthermore, as well depth increases, the sheer weight and elastic stretch of the steel rod string cut deeply into the system's mechanical efficiency, making them less ideal for ultra-deep or highly deviated horizontal wellbores.[3]

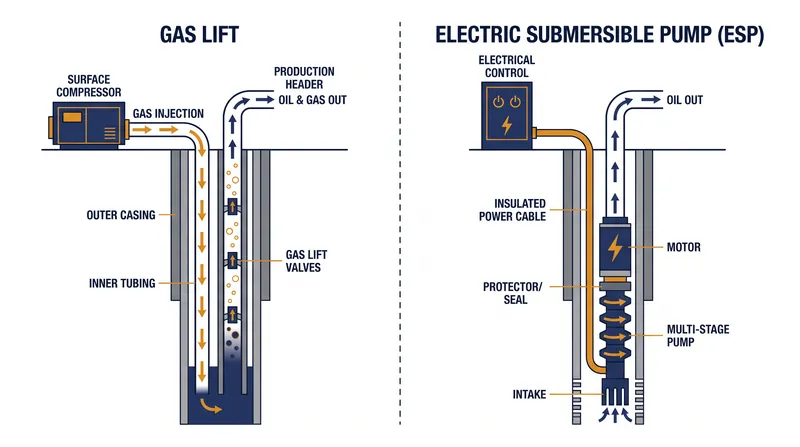

Gas Lift offers a completely different mechanical paradigm, eliminating downhole moving parts entirely. In a gas lift system, high-pressure natural gas is injected down the casing annulus and introduced into the production tubing through a series of specialized downhole valves.[4]

The injected gas mixes with the reservoir fluid, aerating it and significantly reducing its overall density. This lighter fluid column requires less reservoir pressure to push it to the surface. Because it relies on fluid dynamics rather than mechanical displacement, gas lift is exceptionally tolerant of high gas-to-oil ratios and abrasive sand.[4]

It is highly flexible; operators can adjust the injection rate at the surface to match changing well conditions without requiring a costly workover rig to pull downhole equipment. However, gas lift requires continuous access to a high-pressure gas supply and substantial surface compressor infrastructure, which can be capital-intensive to install if a field is not already equipped for it.[4][5]

The limitations of gas lift become apparent as reservoir pressure bottoms out. Because the system relies on the reservoir's own pressure to provide the initial push, gas lift struggles to achieve the extreme bottom-hole pressure drawdown required to maximize production in highly depleted assets.[4]

This dynamic forces operators to constantly evaluate the economic crossover point between systems. The decision of which system to deploy—and exactly when to switch from one to another—is ultimately an exercise in thermodynamic and economic modeling. Efficiency comparisons between lift methods are only valid when evaluated against the specific pressure, volume, and temperature profile of a single wellbore.[5]

To manage this complexity, the industry is increasingly abandoning the traditional reactive approach to artificial lift. By analyzing high-frequency dynamometer data for rod pumps or electrical load signatures for ESPs, modern systems can identify the exact moment a well's decline curve crosses the economic threshold of its current lift method.[3][5]

Ultimately, there is no universally superior artificial lift system. The optimal choice is a moving target that shifts continuously as the reservoir gives up its hydrocarbons. Mastering artificial lift requires treating the wellbore not as a static piece of infrastructure, but as a dynamic fluid system that demands constant recalibration to protect the operator's margins.[1][5]
