The Mechanics of the Kalman Filter: How Sensor Fusion Estimates State in Robotics and Navigation

The short version is this: a Kalman filter is a mathematical algorithm that combines imperfect sensor measurements with a predictive model to figure out exactly what a system is doing. If you want to know where a robot, a drone, or a smartphone is in physical space, you cannot rely on sensors alone because sensors drift, lag, and lie. The filter solves this by constantly guessing the state, measuring the reality, and finding the optimal truth in between.[1]

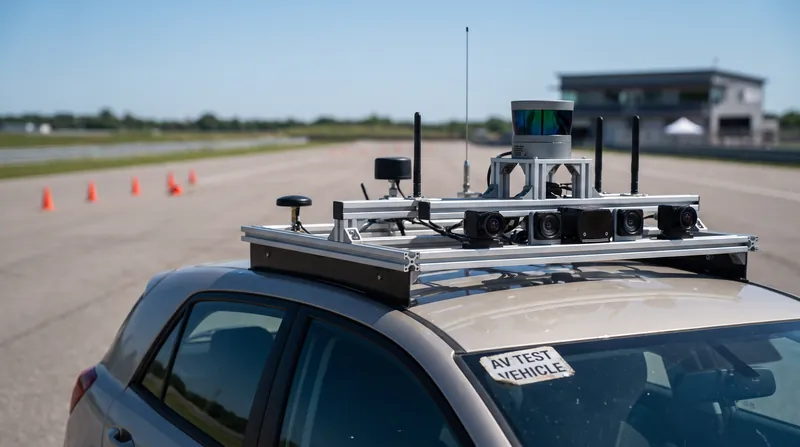

This continuous predict-and-update loop is the invisible engine of modern navigation. Developed in 1960, it was famously used to guide the Apollo spacecraft to the moon. Today, it is the reason your car's GPS does not instantly think you are driving through a building when the satellite signal bounces, and it is how autonomous vehicles fuse camera, radar, and LiDAR data into a single coherent worldview.[3]

To understand the mechanics, you have to understand the problem of noise. Every physical sensor has a margin of error. An accelerometer measuring speed will accumulate tiny errors over time, a phenomenon known as drift. A GPS receiver has a baseline inaccuracy of several meters. If a robot relies purely on raw data, these errors compound until the system is completely lost.[2]

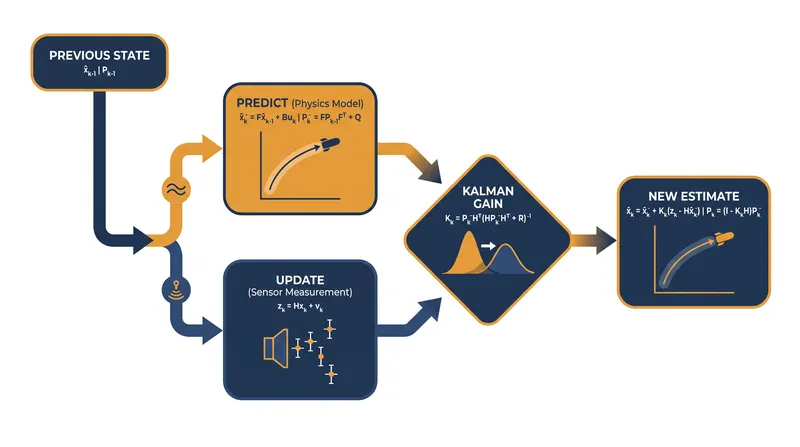

The Kalman filter attacks this by introducing a mathematical model of the system's physics. If a drone was flying forward at ten meters per second a fraction of a second ago, the laws of physics dictate roughly where it should be now. The filter calculates this prediction, along with a matrix representing its own uncertainty about that guess.[1]

Next comes the measurement update. The filter takes the actual reading from the sensors. Crucially, it also knows the historical noise profile of those specific sensors. It now has two competing pieces of information: where it thinks it should be based on physics, and where the sensors say it is.[3]

The magic happens in the calculation of the Kalman Gain. This is a dynamic weighting factor that decides whether to trust the prediction or the measurement more. If the sensor data is highly erratic, the Kalman Gain shifts trust toward the mathematical model. If the model's uncertainty grows too large, it shifts trust back to the sensors.[1]

By multiplying the matrices of these probabilities, the filter produces a final state estimate that is statistically more accurate than either the prediction or the measurement alone. It then uses this new estimate as the starting point for the next fraction of a second, looping hundreds or thousands of times per second.[2]

However, the original algorithm only works on linear systems—systems where changes happen in straight, predictable lines. Real-world robotics is highly non-linear. Drones roll and pitch; robotic arms rotate on multiple joints. To handle this, engineers developed the Extended Kalman Filter (EKF).

The EKF works by linearizing the current state using calculus, specifically Jacobian matrices. It essentially pretends the non-linear curve is a straight line for just that microscopic fraction of a second. This allows the standard Kalman math to work on complex, real-world movements.[2]

But linearization comes with a cost. In highly dynamic environments with rapid changes in direction, the EKF's straight-line approximation introduces an error margin of roughly 15 to 20 percent. If a drone executes a sudden, violent maneuver, the EKF can lose track of the true state entirely.[2]

To solve the EKF's accuracy problem, researchers created the Unscented Kalman Filter (UKF). Instead of using calculus to draw a straight line, the UKF selects a minimal set of sample points—called sigma points—around the current estimate. It pushes these specific points through the non-linear math to capture the true curve of the movement.

The UKF is significantly more accurate, achieving precision equivalent to a third-order Taylor series expansion. It eliminates the Jacobian math entirely, making it mathematically elegant and highly robust against sudden, non-linear movements in complex robotic systems.[2]

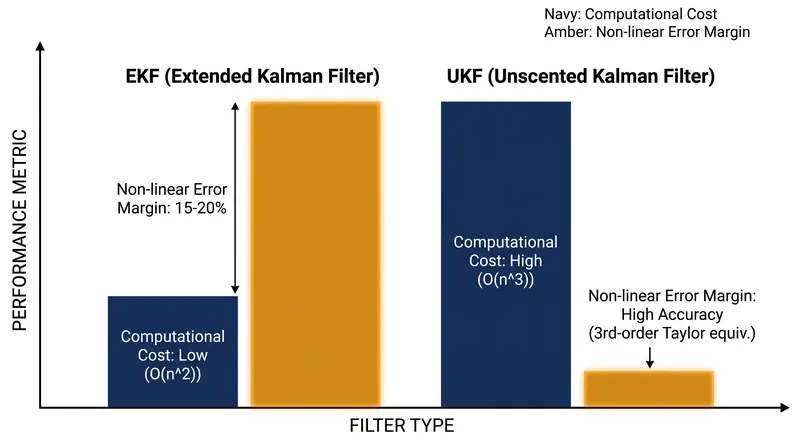

The trade-off is computational power. The UKF requires processing multiple sigma points at every step, leading to an O(n^3) computational scaling relative to the state dimension. For a micro-robot or a cheap consumer device with a basic microcontroller, this computational overhead is often prohibitive.

This forces a practical compromise in modern Simultaneous Localization and Mapping (SLAM). When building autonomous systems, developers must choose between the computational efficiency of the EKF and the superior accuracy of the UKF. Most commercial systems still rely heavily on highly optimized EKFs.[3]

Looking forward, the fundamental mechanics of the Kalman filter are being augmented by machine learning. While neural networks are excellent at recognizing patterns, they struggle with the mathematical provability required for safety-critical navigation. The future of sensor fusion lies in using AI to dynamically tune the Kalman filter's noise parameters, combining the adaptability of deep learning with the rigorous, proven mechanics of the 1960s algorithm.[3]
