The Mechanics of Satellite Attitude Control: Comparing Reaction Wheels, Thrusters, and Magnetic Torquers

The smartphone in your pocket, the weather forecast on your screen, and the broadband connection linking remote communities all rely on a fundamental mechanical premise: a satellite in orbit must point its antennas and sensors precisely at Earth. If a communications satellite drifts its orientation by even a fraction of a degree, its signal sweeps harmlessly into the void, severing the link to the ground. For the end user, the infrastructure simply vanishes. Maintaining this precise alignment—known as attitude control—is a constant battle against the subtle but relentless physical forces of space.[4][8]

In the vacuum of orbit, spacecraft are not perfectly isolated. They are continuously nudged by solar radiation pressure, the drag of the tenuous upper atmosphere, and the uneven gravitational pull of the Earth itself. Left uncorrected, these external torques would cause a satellite to tumble uncontrollably. To counteract this, aerospace engineers design attitude determination and control systems that act as the inner ear and stabilizing muscles of the spacecraft.[4]

The architecture of these control systems dictates the operational lifespan and capability of every orbital asset. When a satellite is declared dead, it is rarely because its computers failed or its solar panels degraded; most often, it is because it has lost the ability to control its attitude. The industry relies on three primary mechanisms to maintain this orientation: reaction wheels, chemical or electric thrusters, and magnetic torquers. Each represents a distinct node in the trade-off between precision, mass, and longevity.[6][8]

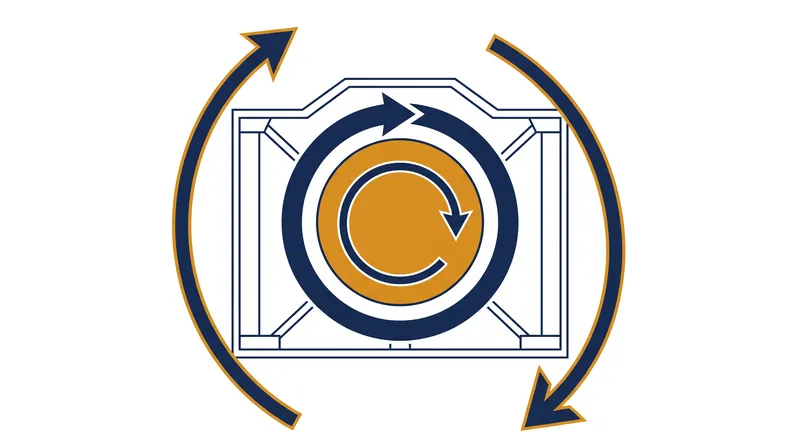

Reaction wheels are the workhorses of modern high-precision satellites, from the Hubble Space Telescope to commercial imaging constellations. These devices operate on the principle of conservation of angular momentum. A heavy rotor is suspended on low-friction bearings and driven by an electric motor. When the motor accelerates the wheel in one direction, the spacecraft body rotates in the opposite direction.[2][7]

Because reaction wheels are powered by electricity generated from the satellite's solar arrays, they do not consume physical propellant. This allows them to operate for years, providing exceptionally fine pointing accuracy. A satellite can track a specific ground target smoothly as it flies overhead simply by continuously adjusting the speed of its internal wheels.[2][8]

However, reaction wheels possess a critical vulnerability known as saturation. As the satellite uses the wheels to counteract continuous external forces—like the persistent push of sunlight on one side of the spacecraft—the wheels must spin faster and faster to absorb that momentum. Eventually, the wheel reaches its maximum safe rotational speed. If it spins any faster, the centrifugal forces could shatter the rotor or destroy the bearings.[5][7]

Once a wheel is saturated, it can no longer absorb torque in that direction. To restore the wheel's utility, the satellite must perform a momentum unloading maneuver, often called desaturation. The spacecraft must apply an external torque to hold itself steady while the wheel is intentionally braked back to a slower speed. This external torque must come from a different system entirely.[5]

Historically, the primary method for unloading reaction wheels—and for performing rapid, large-scale orientation changes—has been the use of thrusters. By expelling a small amount of propellant through a nozzle, a thruster generates a reactive force that pushes the spacecraft. When thrusters are mounted on the outer edges of the satellite, they provide a powerful lever arm to rotate the vehicle.[1][4]

Thrusters are highly reliable and can generate significant torque instantly, making them essential for deep space missions where rapid maneuvers are required. However, they introduce the most severe constraint in spacecraft design: the tyranny of consumables. Every pulse of a thruster permanently depletes a finite reserve of onboard propellant.[1]

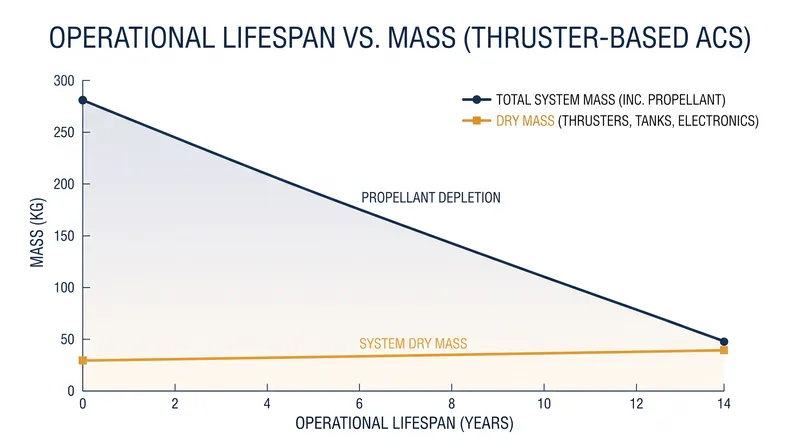

The mass of this propellant directly limits the mission's lifespan. Launching heavy tanks of hydrazine or cold gas into orbit is extraordinarily expensive, and once the tank is empty, the satellite loses its ability to unload its reaction wheels or maintain its attitude. This dependency creates a hard cap on the return on investment for multi-million dollar space assets.[1][8]

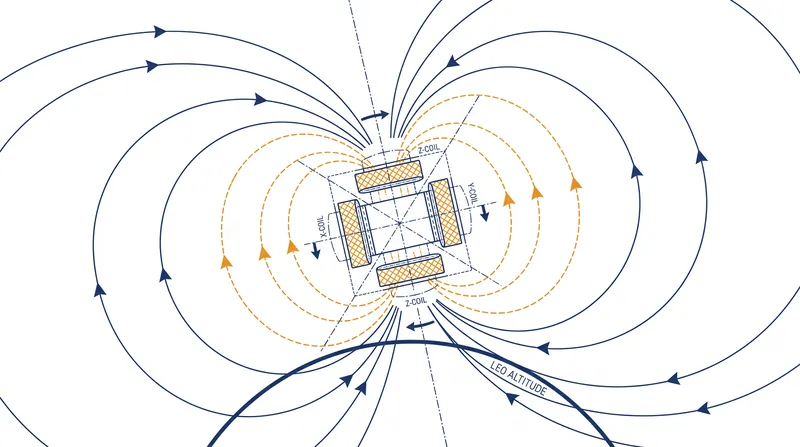

To break this dependency on finite consumables, engineers operating in Low Earth Orbit turn to magnetic torquers. These devices are essentially large electromagnets—coils of wire wrapped around a metallic core. When an electrical current is passed through the coil, it generates a magnetic dipole that interacts with the Earth's natural magnetic field.[3][7]

Like a compass needle trying to align with magnetic north, the torquer experiences a twisting force as it pushes against the planetary magnetic field. By carefully controlling the current in three orthogonal coils, the satellite's flight computer can generate torque in almost any direction. Because magnetic torquers run entirely on solar-generated electricity, they provide a method of momentum unloading that requires zero physical propellant.[3][5]

The limitation of magnetic torquers is their environmental dependency. The torque they generate is relatively weak and scales with the strength of the local magnetic field. While highly effective in Low Earth Orbit, the Earth's magnetic field drops off dramatically with distance. In geostationary orbit, the field is too weak to be useful, and in deep space, it is non-existent.[3][8]

Consequently, modern satellite design is an exercise in hybridization. A typical Low Earth Orbit communications or imaging satellite will utilize reaction wheels for the precise, moment-to-moment pointing required to link with ground stations, paired with magnetic torquers to continuously bleed off excess momentum without burning fuel. This architecture maximizes both precision and lifespan.[2][7]

For deep space probes or geostationary assets, the architecture shifts. Without a strong magnetic field to push against, these spacecraft must rely on a combination of reaction wheels for precision and thrusters for momentum unloading. The engineering challenge then becomes optimizing the control algorithms to minimize thruster firings, stretching the finite propellant reserves over decades of operation.[1][6]

As the space economy shifts toward massive constellations of smaller, cheaper satellites, the optimization of these attitude control systems is moving from hardware to software. Advanced control algorithms are being deployed to predict environmental disturbances and manage momentum more efficiently, ensuring that the invisible infrastructure supporting the modern world remains pointed exactly where it needs to be.[6][8]
