The Mechanics of AI Acceleration: Comparing GPUs, TPUs, and ASICs for Training and Inference

The common assumption is that an "AI chip" is just a vastly more powerful version of the processor inside a standard laptop. In reality, the processors driving the artificial intelligence boom are not smarter than traditional CPUs; they are profoundly dumber, but there are thousands of them working in unison. The story of AI acceleration is not about building a faster calculator, but about fundamentally redesigning how data moves through silicon to solve one specific mathematical problem: matrix multiplication.[3][6]

To understand why specialized hardware is necessary, one must look at the traditional Central Processing Unit (CPU). A CPU is a generalist, designed to execute complex, sequential instructions quickly. It is akin to a master chef who can cook any dish perfectly but only one at a time. When tasked with training a neural network, which requires millions of simple arithmetic operations simultaneously, the CPU becomes a severe bottleneck.[3][5]

Graphics Processing Units (GPUs) were originally designed to render video game graphics by calculating the color of millions of pixels at once. This architecture, known as Single Instruction, Multiple Data (SIMD), turned out to be exactly what deep learning required. A modern GPU contains tens of thousands of simple cores. If a CPU is a master chef, a GPU is an army of fast-food workers: individually less capable, but able to produce ten thousand burgers in the time the chef makes one.[1][5]

However, GPUs face a physical limitation known as the "memory wall." In AI workloads, the actual computation—multiplying two numbers together—is incredibly fast, but fetching those numbers from the chip's memory takes time and consumes massive amounts of energy. A GPU still relies on a traditional architecture where data must be constantly shuttled back and forth between memory registers and compute cores, creating a traffic jam on the silicon.[1][4]

This inefficiency led Google to develop the Tensor Processing Unit (TPU). Unlike a GPU, which is still flexible enough to render graphics or mine cryptocurrency, a TPU is an Application-Specific Integrated Circuit (ASIC) designed exclusively for the tensor math underlying neural networks. It trades the broad versatility of a GPU for extreme efficiency in one specific domain.[2][4]

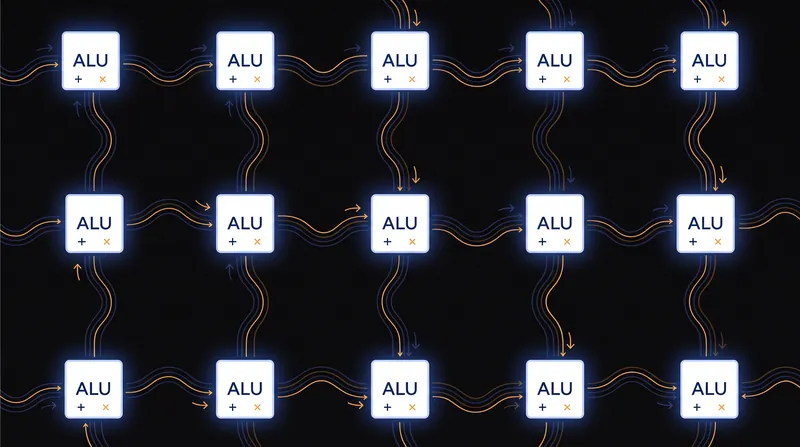

The core innovation of the TPU is the "systolic array." Instead of fetching data from memory for every single calculation, a TPU pumps data through a massive grid of Arithmetic Logic Units (ALUs)—often 256 by 256 units wide. As data flows through this grid like blood through a heart, each ALU performs a calculation and passes the result directly to its neighbor. This drastically reduces memory access, saving power and accelerating throughput.[2][5]

The hardware requirements for AI split sharply into two phases: training and inference. Training a model is like building a brain. It requires processing trillions of words or images, constantly updating the model's internal weights. This phase demands extreme flexibility and high-precision mathematics, usually 16-bit or 32-bit floating-point numbers, because the model is constantly adjusting its parameters.[1][3]

GPUs currently dominate the training phase because their programmable nature allows researchers to experiment with new model architectures. If a research lab invents a new way to structure a neural network, a GPU can be reprogrammed to run it. An ASIC, hardwired for a specific architecture, would be useless for anything else.[1][4]

Inference, on the other hand, is the act of using the trained model to generate an answer. This is a forward-pass only; the weights are frozen. Inference does not require the same mathematical precision as training. Models can be "quantized"—compressed to use 8-bit or even 4-bit integers—without significantly degrading the quality of the output.[3][5]

Because inference is a fixed, repetitive task, it is the perfect target for custom ASICs. An ASIC hardwires the specific neural network architecture directly into the silicon. By stripping away all the control logic needed for flexibility, an ASIC can dedicate almost all its transistor budget to pure computation, resulting in massive efficiency gains.[2][4]

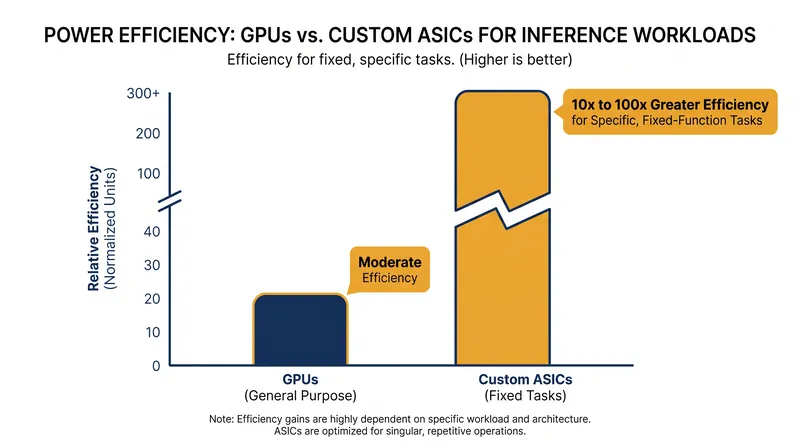

The trade-off is brutal: an ASIC might be vastly more power-efficient than a GPU for running a specific model, but if the AI industry invents a new mathematical architecture tomorrow, the ASIC becomes an expensive paperweight. A GPU can simply download a new software update; an ASIC must be physically redesigned and manufactured, a process taking years and tens of millions of dollars.[1][2][4]

Field-Programmable Gate Arrays (FPGAs) offer a middle ground in this architectural war. They are integrated circuits whose internal logic gates can be reconfigured by the user after manufacturing. While not as fast as a pure ASIC or as accessible as a GPU, FPGAs allow hardware engineers to physically rewire the chip to match a new AI model without waiting for a new fabrication cycle.[1][3]

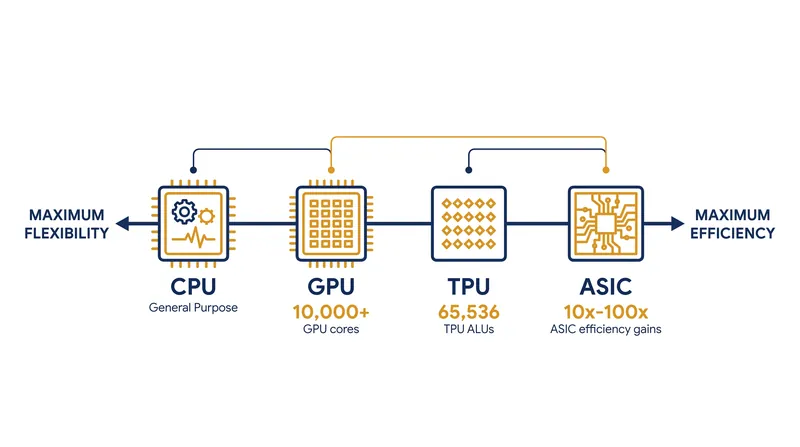

The architectural differences dictate the economics of the AI industry. Hyperscalers are heavily incentivized to shift inference workloads from expensive GPUs to their own custom ASICs to reduce the staggering electricity costs of serving AI to millions of users. As the fundamental architecture of models stabilizes, the financial risk of locking those designs into hardwired ASICs decreases, paving the way for hyper-efficient chips deployed everywhere from massive data centers to consumer smartphones.[4][5][6]
