The Mechanics of Heat Pump Clothes Dryers: How Ventless Technology Recycles Air and Saves Energy

The traditional clothes dryer is a brute-force machine. For decades, the standard approach to drying laundry has been to pull conditioned air from the home, blast it over a glowing electric resistance coil or a gas burner, tumble it through wet fabric, and immediately vent that heated, moisture-laden air outside. It is an open system that relies on sheer thermal power to evaporate water rapidly.[1]

This method is fast, but it is fundamentally inefficient. By constantly exhausting hot air, a conventional dryer not only wastes the energy used to heat that air, but it also depressurizes the house. This forces the home's primary heating or air conditioning system to work harder to replace the conditioned air that was just blown out the vent.[2]

Enter the heat pump clothes dryer. Rather than generating heat from scratch, these machines use a closed-loop refrigeration cycle to extract moisture from clothes. They do not have a traditional heating element, and crucially, they do not have an exhaust vent.[1][2]

To understand how they work, it helps to look at the broader category of heat pump technology. A heat pump operates on the same thermodynamic principles as a refrigerator or an air conditioner, moving thermal energy from one place to another using a circulating chemical refrigerant.[3]

In a standard air-source heat pump used for home heating, the system extracts ambient heat from the outside air and pumps it indoors. A heat pump clothes dryer miniaturizes this process, placing both the hot and cold sides of the refrigeration cycle inside the same appliance.[1]

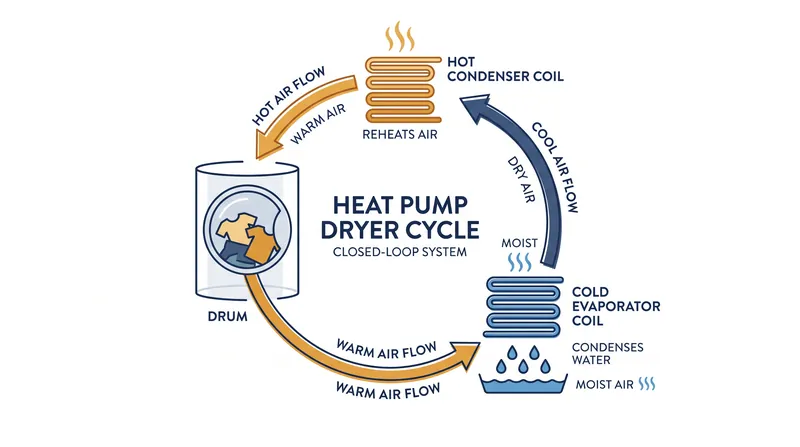

The core mechanism relies on two sets of coils: the condenser, which is hot, and the evaporator, which is cold. When a cycle begins, the heat pump's internal compressor pressurizes the refrigerant, sending hot gas into the condenser coils.[3][4]

A blower fan pushes air across these hot condenser coils, warming the air before it enters the rotating drum. This warm air passes through the tumbling wet laundry, absorbing moisture and turning the liquid water trapped in the fabric into water vapor.[2]

In a traditional dryer, this is the exact point where the humid air would be expelled outdoors. In a heat pump dryer, the air takes a completely different path. The warm, moisture-heavy air exits the drum and is immediately routed over the cold evaporator coils.[1][4]

As the humid air hits the cold surface of the evaporator, it rapidly cools. Because cold air cannot hold as much moisture as warm air, the water vapor condenses back into a liquid. This phase change is the critical step that separates heat pump dryers from their conventional counterparts—they actively dehumidify the air rather than just heating it.[2][4]

The condensed water drips off the evaporator coils and is collected. Depending on the installation, this water is either routed through a small hose into a nearby floor drain or washing machine standpipe, or it is collected in a removable reservoir tray that the user empties after each load.[1][2]

Meanwhile, the air—now stripped of its moisture but still retaining some residual warmth—is pulled back across the hot condenser coils. It is reheated and sent back into the drum to absorb more moisture. The exact same volume of air continuously loops through the machine until the clothes are completely dry.[2][4]

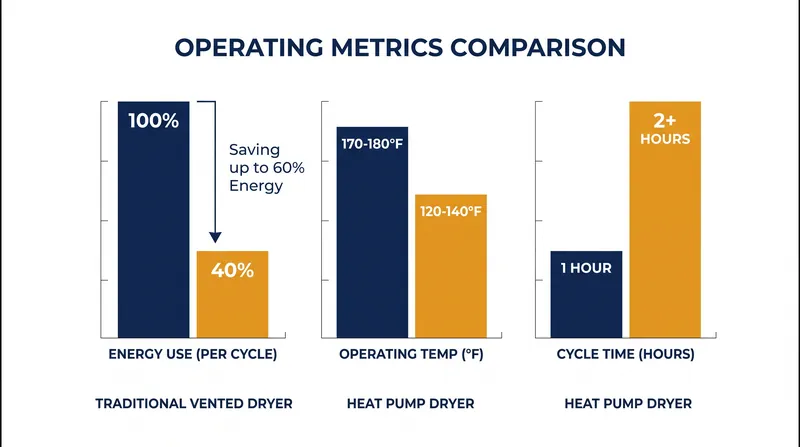

This closed-loop design yields massive efficiency gains. By recycling the air and recovering the latent heat of vaporization during the condensation phase, heat pump dryers use significantly less energy than standard electric resistance models, often cutting consumption by more than half.[2]

The absence of an exhaust vent also fundamentally changes where a dryer can be installed. Because they do not require exterior ductwork or a hole punched through the wall, heat pump dryers can be placed in interior closets, apartments, accessory dwelling units, or any room with a standard electrical outlet and a water drain.[2]

However, the technology requires a trade-off in speed. Because heat pump dryers rely on dehumidification rather than extreme heat, they operate at much lower temperatures—typically between 120 and 140 degrees Fahrenheit, compared to the much hotter blasts of a conventional unit.[4]

As a result, drying cycles take significantly longer. A standard load that might take forty-five minutes in a vented dryer can take two hours or more in a heat pump model. For households accustomed to rapid laundry turnover, this requires an adjustment in routine and planning.[4]

The lower operating temperature provides a secondary, often overlooked benefit: fabric preservation. High heat bakes clothing, breaking down elastic fibers, shrinking cottons, and accelerating overall wear and tear. By drying clothes gently at lower temperatures, heat pump models extend the lifespan of the garments.[2][4]

Maintenance also looks slightly different. In addition to the standard lint filter inside the door, heat pump dryers feature a secondary filter to protect the evaporator and condenser coils from microscopic lint particles. If these coils become coated in wet lint, the heat exchange process fails, making regular cleaning mandatory.[1][4]

For buyers who want the efficiency of a heat pump but cannot tolerate the longer drying times, manufacturers have introduced hybrid models. These units combine a heat pump with a smaller traditional electric heating element, allowing users to choose between a slow, ultra-efficient cycle and a faster, more energy-intensive one.[4]

Ultimately, the shift toward heat pump clothes dryers represents a broader transition in home appliances. As energy costs rise and electrification efforts expand, the brute-force methods of the past are being replaced by smarter, closed-loop systems that prioritize efficiency and resource recovery over sheer speed.
