The Science of Hitboxes and Collision Detection: How Raycasting and AABBs Decide Virtual Life and Death

A fighting game grand final is often decided by a single pixel. The screen freezes on a crucial strike. The sword visually passes through the opponent's arm, but no damage is registered. The crowd roars in confusion, commentators scramble for an explanation, and the attacking player drops their controller in disbelief. This is not a glitch; it is the cold, mathematical reality of collision detection.

Every time a sword swing connects, a bullet lands, or a platforming jump just barely clears a ledge, the game engine is asking the same silent question: did this shape touch that shape? The answer comes from hitboxes, the invisible geometry that defines interactive space and dictates the rules of virtual physics.[3][5]

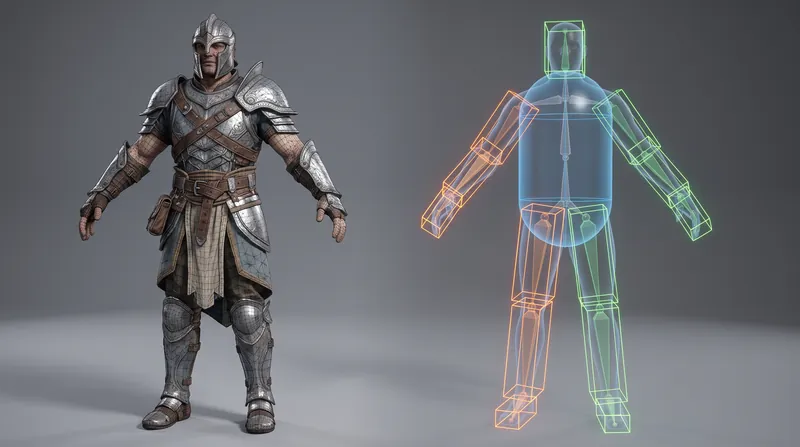

The visible character model—the high-resolution mesh with thousands of polygons, intricate armor, and flowing fabric—is just a costume. The actual body that the game engine cares about is built from primitive mathematical shapes. Understanding how these shapes work unlocks a layer of design that most players feel but never see.[5]

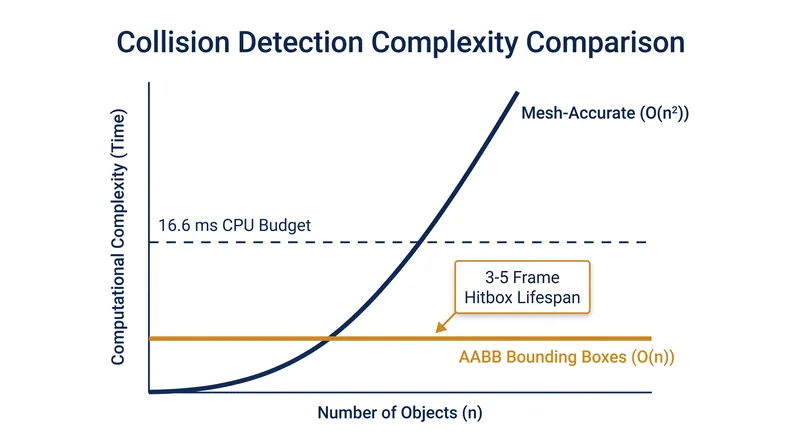

The reason developers do not use the visible character model for collision detection comes down to raw computational cost. If a game has thousands of bodies in a simulation, checking every polygon against every other polygon creates a computational complexity of O(n²). The number of pairwise tests increases quadratically, which would instantly grind the engine to a halt.[1]

In a modern game running at 60 frames per second, the CPU has just 16.6 milliseconds to calculate physics, artificial intelligence, player input, and rendering. Calculating mesh-accurate collisions for thousands of objects is impossible within this strict budget. To survive, developers cut corners hard by using simplified bounding volumes.[6]

Instead of complex meshes, engines rely on simple shapes. The most common is the Axis-Aligned Bounding Box (AABB). An AABB is a simple rectangle or cube that remains perfectly aligned with the world's X, Y, and Z axes, regardless of what the character inside it is doing.[2][4]

Checking for an AABB collision is incredibly fast. The engine simply checks if the intervals along each axis overlap. If the right edge of Box A is past the left edge of Box B, and their vertical axes also intersect, a collision is registered. It requires only basic arithmetic, making it the backbone of 2D platformers and UI systems.[2]

However, AABBs have a fatal flaw: they cannot rotate. When a character leans forward, their AABB must expand awkwardly to encompass the new pose, creating invisible empty space where a player can be hit despite visually dodging the attack.[1][2]

To solve this, developers use Oriented Bounding Boxes (OBBs) or Capsule colliders. An OBB can rotate with the character, offering much higher precision for limbs and weapons, though it requires more complex math—often utilizing the Separating Axis Theorem (SAT) to check for overlaps.[7]

Almost every first-person shooter developed in the last two decades uses capsule colliders for player movement. A capsule—a cylinder with spherical endcaps—is mathematically elegant. The engine only needs to check the distance from a central line segment to the capsule's radius, making it perfect for navigating uneven terrain without snagging on corners.[4][6]

In the hyper-precise world of 2D fighting games, developers separate these shapes into distinct categories. A "hurtbox" is the passive shape that represents the character's vulnerable body, while a "hitbox" is the active shape that deals damage.[5]

This distinction is critical because the two shapes have entirely different lifespans. A hurtbox exists on every frame the character is alive. A hitbox, however, might only exist for three to five frames—roughly 50 to 80 milliseconds—before vanishing.[5]

When a player throws a punch, the engine spawns a hitbox attached to the fist. If that hitbox overlaps the opponent's hurtbox, the engine fires a collision event, triggering damage, hitstun, and particle effects.[3][5]

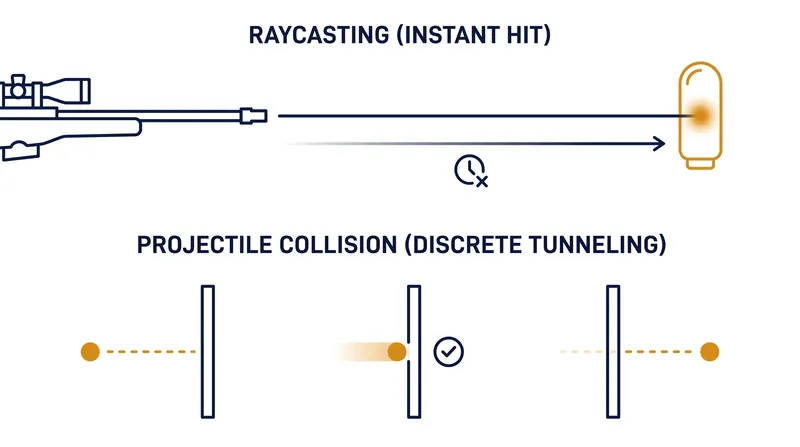

Tactical shooters introduce another layer of complexity: raycasting. When a player fires a hitscan weapon like a sniper rifle, the game does not spawn a physical bullet. Instead, it casts an invisible mathematical ray from the barrel of the gun directly forward.[1]

The engine then checks if this ray intersects with any enemy capsule colliders along its path. Because raycasting is instantaneous, it creates the crisp, responsive gunplay that defines modern esports, though it requires complex lag compensation to ensure what the shooter sees matches the server's reality.[6]

Fast-moving projectiles introduce a unique physics problem known as "tunneling." If a bullet is moving fast enough, it might exist on one side of a thin wall during Frame 1, and on the other side during Frame 2. Because discrete collision detection only checks for overlaps at specific moments in time, the bullet completely bypasses the wall.[1]

To prevent tunneling, engines use Continuous Collision Detection (CCD). Instead of checking static positions, CCD calculates the time of impact by sweeping the object's shape along its trajectory, finding the exact fraction of a millisecond when the distance between the two bodies reached zero.[7]

Ultimately, collision detection is a masterclass in compromise. Developers must constantly balance the player's demand for pixel-perfect accuracy against the hardware's demand for computational efficiency. The next time you survive a headshot by a millimeter, thank the invisible geometry that decided your fate.[6]
