The Mechanics of the Global Internet Backbone: How Tier 1 Networks, IXPs, and Peering Agreements Connect the World

The internet is fundamentally a network of networks. When a business or consumer pays their local Internet Service Provider for access, that data must physically travel across the globe to reach its destination. To accomplish this seamlessly, the global routing ecosystem relies on a hidden, hierarchical architecture of transit agreements and peering connections. At the very top of this structural pyramid sits the global internet backbone: a small, exclusive group of massive telecommunications networks that connect the world without paying a single cent in transit fees.[7][11]

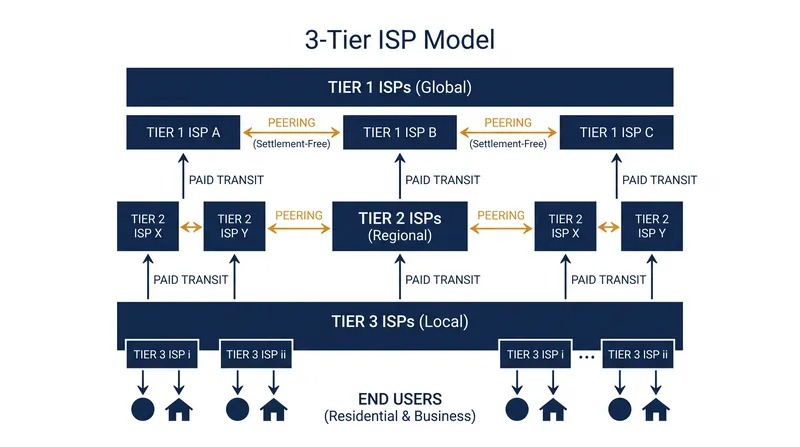

Understanding how data moves across oceans and continents requires breaking down the standard three-tier ISP model. At the edge of the network are Tier 3 providers, which are the local ISPs that connect end users, residential homes, and small businesses directly to the internet. Because these local providers lack the physical infrastructure to reach global destinations, they are forced to purchase a service known as "IP transit" from larger, regional networks to route their customers' traffic outward.[7]

Sitting above the local providers are Tier 2 networks, which maintain a significantly larger geographic footprint, often spanning entire countries or continents. These regional operators connect multiple Tier 3 providers and frequently exchange traffic with other Tier 2 networks to save money on routing costs. However, despite their size, Tier 2 networks still do not possess a truly global reach. To access the entire internet, even these massive regional operators must pay transit fees to the elite providers at the top of the pyramid.[7]

Tier 1 networks are the undisputed backbone of the internet, operating the massive transoceanic cables and core routing infrastructure that bind the digital world together. By strict definition, a Tier 1 network is an ISP that can reach every other network on the internet solely through settlement-free peering. They do not purchase IP transit from anyone, and their routing tables do not have a default route pointing to a higher authority, because there is no higher authority.[2][6]

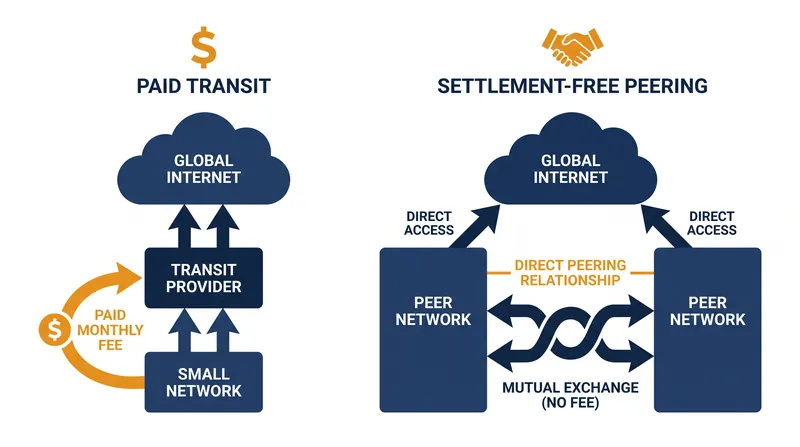

The financial engine of the Tier 1 backbone is settlement-free peering, which operates entirely as a barter system. Instead of paying each other for data transfer, Tier 1 networks agree to exchange traffic for free, recognizing that the mutual benefit of global connectivity far outweighs the administrative and financial cost of billing each other. This cooperative framework is the invisible mechanism that allows a user in Tokyo to seamlessly load a website hosted on a server in New York in milliseconds.[10]

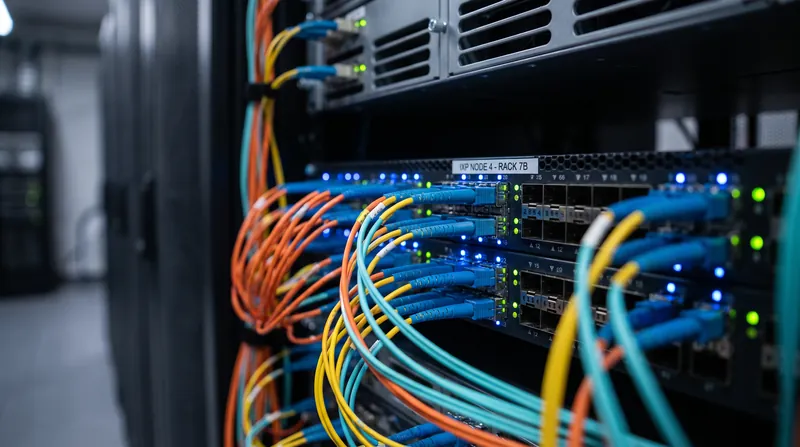

This massive, continuous exchange of global data physically occurs at specialized facilities known as Internet Exchange Points (IXPs). An IXP is a highly secure physical data center infrastructure where multiple ISPs, Content Delivery Networks, and large enterprise networks connect their enterprise-grade routers to a shared switching fabric. By bringing their networks into the same physical room, operators can plug directly into each other and pass traffic without routing it through expensive third-party transit providers. These facilities serve as the vital intersections of the digital highway, processing terabits of data per second.[4]

By connecting to a local IXP, networks can keep local traffic local, a process that dramatically improves efficiency. If two regional ISPs operating in London agree to exchange traffic through a London-based IXP, that data never has to travel across the Atlantic Ocean to a Tier 1 router in the United States and back. This localized routing dramatically reduces latency for the end user, cuts expensive transit costs for the ISPs, and relieves congestion on the global backbone.[4][5]

While public IXPs are crucial for Tier 2 and Tier 3 networks looking to optimize their routing, the relationship between Tier 1 networks and public exchanges is significantly more complex. Contrary to popular belief, not all Tier 1 providers connect to public Internet Exchange Points. Because of the sheer, overwhelming volume of traffic they handle daily, many Tier 1 networks prefer to establish Private Network Interconnects to manage their core backbone routing. This ensures they maintain absolute control over their most critical infrastructure.[9]

A Private Network Interconnect is a direct, dedicated physical fiber-optic cable connecting two networks, completely bypassing the shared public switch of a standard IXP. This architecture provides guaranteed bandwidth, enhanced security, and dedicated capacity for the massive data flows exchanged between the world's largest backbone providers. By utilizing private cross-connects, Tier 1 operators can scale their interconnections to hundreds of gigabits per second without worrying about congestion on a shared public exchange fabric. It represents the most direct form of peering available in modern networking.[1][3]

The rules governing who gets to peer with whom at the Tier 1 level are strictly guarded and highly exclusive. Tier 1 networks publish stringent, publicly available peering policies, requiring potential partners to meet massive traffic volume thresholds, maintain a genuinely global geographic presence across multiple continents, and operate a fully staffed 24/7 Network Operations Center. These requirements ensure that only networks of equal size and capability can join the settlement-free peering club. The barrier to entry is intentionally kept astronomical to protect the core.[3][10]

If a growing regional network cannot meet these rigorous requirements, the Tier 1 provider will outright refuse to establish a peering relationship. Instead, they will force the smaller network to become a paying transit customer. This dynamic creates a high commercial barrier to entry, ensuring that the Tier 1 club remains small, exclusive, and highly profitable, as they collect transit revenue from the thousands of lower-tier networks that rely on them for global reach. This financial leverage is the primary business model of the internet's core operators.[8]

However, the traditional landscape of the internet backbone is rapidly shifting due to the explosive rise of Content Delivery Networks. Companies like Cloudflare, Akamai, and major streaming services now push their server infrastructure directly into local IXPs at the very edge of the network. By caching heavy content like video and web assets locally, CDNs bypass the traditional Tier 1 backbone entirely for a vast majority of consumer internet requests. This edge-heavy architecture represents a fundamental evolution in how data is distributed globally.[5]

This aggressive push toward edge computing reduces the physical distance data must travel, significantly improving load times for end users while fundamentally altering the economics of global internet routing. As CDNs deliver more traffic directly to local Tier 3 ISPs via regional IXPs, the reliance on the Tier 1 backbone for everyday consumer web browsing decreases, forcing core operators to adapt their business models toward enterprise cloud connectivity and massive data center interlinks. The internet is becoming less centralized, shifting power from the core to the edge.[5][11]
