The Mechanics of Modern Portfolio Theory: How Diversification, Risk, and the Efficient Frontier Actually Work

By combining assets that have a correlation coefficient of less than 1.0, an investor can mathematically reduce a portfolio's overall volatility without sacrificing expected returns. This mechanism, known as Modern Portfolio Theory (MPT), forms the bedrock of institutional asset management. It proves that risk is not evaluated by looking at a single stock in isolation, but by measuring how that stock's price movements interact with every other asset in a portfolio.[3][6]

Before 1952, the prevailing wisdom in finance was to identify the single best-performing stock or asset and concentrate all capital into it. Risk was viewed entirely in isolation, and diversification was often seen as a dilution of returns rather than a protective mechanism. Investors sought out the highest-yielding securities and largely ignored how those securities behaved relative to one another during market cycles.[1][5]

Harry Markowitz changed this paradigm with his 1952 paper "Portfolio Selection" in the Journal of Finance. He introduced the concept that the risk of an individual asset matters significantly less than its covariance with the rest of the portfolio. Markowitz demonstrated that a portfolio constructed of individually risky assets could, in aggregate, carry less risk than any of its component parts.[1][4]

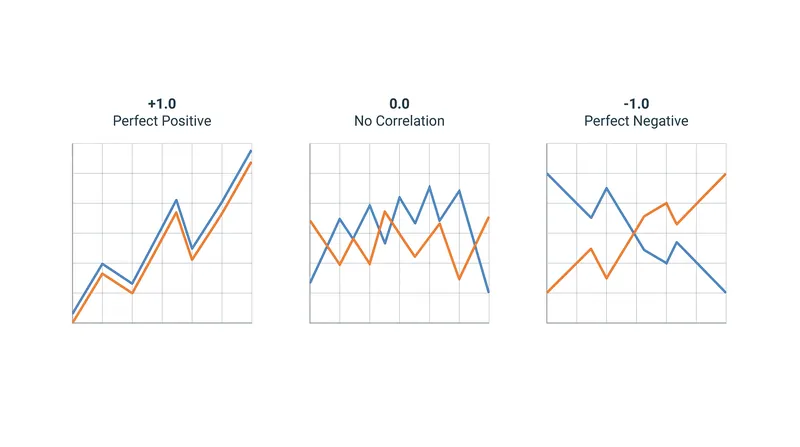

The core mechanism relies on two statistical measures: variance and correlation. Variance measures how much an asset's return fluctuates around its historical average. Correlation measures how two assets move in relation to each other, on a scale from -1.0 (perfectly inverse) to +1.0 (perfectly synchronized).[3][6]

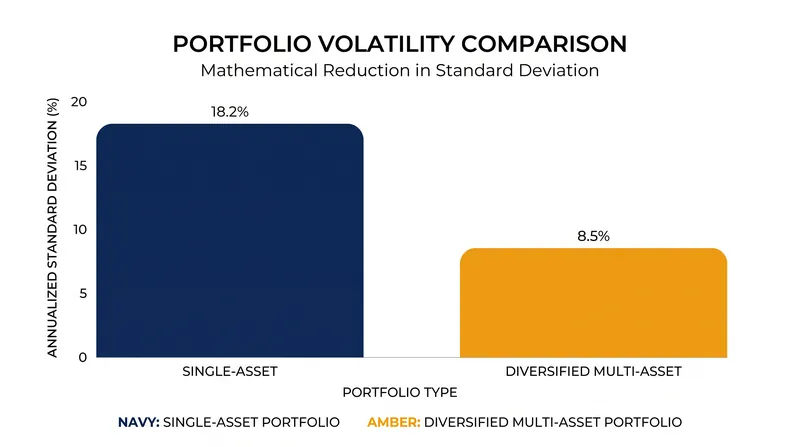

If two assets have a correlation of +1.0, they move in perfect tandem. Combining them offers no risk reduction; the portfolio's variance is simply the weighted average of the two assets. However, if they have a correlation of less than +1.0, their combined variance is mathematically lower than their weighted average. When one asset drops in value, the other either drops less, remains flat, or rises, smoothing out the overall return path.[6][8]

This non-linear risk reduction is often referred to as the only "free lunch" in investing. By adding a highly volatile asset to a portfolio—provided it has low or negative correlation to the existing assets—the overall volatility of the portfolio can actually decrease. This counterintuitive mathematical reality is what drives institutional funds to hold diverse asset classes like equities, bonds, real estate, and commodities simultaneously.[4][6]

This mathematical relationship leads directly to the concept of the Efficient Frontier. If an analyst plots every possible combination of available assets on a graph—with risk (standard deviation) on the horizontal axis and expected return on the vertical axis—a distinct hyperbola emerges. The area inside the curve represents all possible portfolios.[7][8]

The upper edge of this curve is the Efficient Frontier. Portfolios that lie exactly on this line represent the maximum possible expected return for that specific level of risk. Conversely, they also represent the minimum possible risk for a targeted level of return. There is no mathematical way to construct a portfolio that sits above and to the left of this line using the given assets.[3][7]

Any portfolio that sits below the Efficient Frontier is considered sub-optimal. An investor holding a sub-optimal portfolio could theoretically achieve a higher return for the same risk, or the same return for lower risk, simply by reallocating their asset weights to match a portfolio on the frontier line.[6][7]

To construct an optimal portfolio, investors must estimate three variables for every asset: expected return, variance (risk), and the covariance (correlation) with every other asset in the portfolio. In practice, these inputs are usually derived from historical market data, which introduces the primary vulnerability of the theory.[1][6]

While the math is elegant, MPT relies on several strict assumptions that do not always hold in the real world. It assumes that asset returns follow a normal distribution, meaning extreme market events—often called "fat tails"—are statistically highly improbable. It also assumes that investors have free access to all information and can borrow or lend money at a risk-free rate.[3][5]

In reality, financial markets experience "black swan" events more frequently than a normal distribution predicts. During severe market crashes, correlations between previously uncorrelated assets often converge toward +1.0. When panic sets in, equities, corporate bonds, and commodities can all plummet simultaneously, meaning diversification fails exactly when investors need it most.[3][5]

Furthermore, MPT assumes that investors are perfectly rational and risk-averse, caring only about maximizing return for a given level of volatility. It ignores behavioral biases, the emotional pain of temporary drawdowns, and the reality that investors often panic-sell at the bottom of a market cycle rather than calmly rebalancing to maintain their optimal frontier position.[2][5]

Despite these limitations, Markowitz's framework remains the bedrock of modern institutional investing. A 2002 retrospective on his work in the Journal of Finance highlighted that while the exact inputs (historical returns and correlations) are flawed predictors of the future, the underlying principle of variance reduction through diversification is mathematically unassailable.[2][4]

Today, robo-advisors and target-date funds use variations of MPT to automatically allocate trillions of dollars in retirement savings. They continuously rebalance portfolios to keep them as close to the Efficient Frontier as possible, adjusting the target risk level based on the investor's age and time horizon.[4][6]

Ultimately, Modern Portfolio Theory shifted the focus of investing from isolated asset selection to holistic portfolio construction. It proved that risk is not just a hazard to be avoided, but a quantifiable variable that can be engineered, managed, and optimized to serve long-term financial goals.[1][3]
