The Mechanics of Tire Construction: Comparing Radial, Bias-Ply, and Run-Flat Architectures

The automotive industry faces a persistent engineering contradiction: the desire for a tire that offers the plush ride of a flexible sidewall, the load-bearing capacity of a rigid structure, and the invulnerability of a solid wheel.[7]

No single architecture can satisfy all three demands simultaneously. Instead, tire construction has evolved into three distinct structural paradigms—radial, bias-ply, and run-flat—each optimizing for a specific operational reality at the expense of the others.[7]

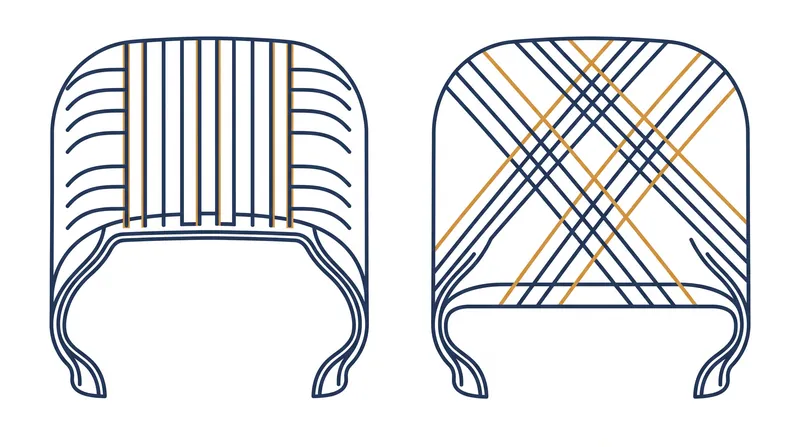

Historically, the bias-ply tire was the foundational architecture of the automotive age. In a bias-ply construction, the internal structural cords, or plies, run diagonally from bead to bead, typically at a 30 to 40-degree angle to the direction of travel.[1][6]

Successive layers of these cords are crisscrossed, creating a unified, highly rigid structure where the tread and the sidewall act as a single continuous unit. Because the structure is interconnected, when the tread deflects over an obstacle, the sidewall must also deflect, and vice versa.[6]

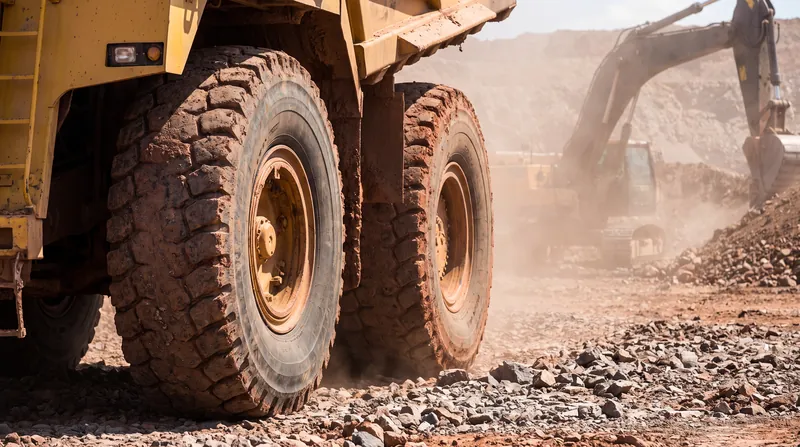

This interconnected rigidity makes bias-ply tires exceptionally robust against sidewall punctures and capable of bearing immense static loads. Consequently, they remain the architecture of choice for heavy agriculture, logging, and specific off-the-road (OTR) applications where absolute durability supersedes high-speed stability.[1]

The radial tire, introduced in the mid-20th century, fundamentally decoupled the tread from the sidewall. In a radial architecture, the structural plies run perpendicular to the direction of travel—radially from the center of the wheel, directly across the tire from bead to bead.[6]

To stabilize the tread, engineers add rigid steel belts directly under the contact patch, running circumferentially around the tire. This creates a flexible sidewall that acts as an independent spring, while the steel-belted tread remains flat and stable against the road surface.[1][6]

The downstream consequences of this decoupling are profound. The flexible sidewall absorbs road imperfections, dramatically improving ride comfort. More importantly, because the tread does not deform when the sidewall flexes, radial tires maintain a consistent contact patch, reducing rolling resistance, improving fuel economy, and extending tread life.[6]

While radials dominate modern highways, their flexible sidewalls represent a critical vulnerability: a loss of pneumatic pressure results in immediate structural collapse. To address this, engineers developed the run-flat architecture, designed to support the vehicle's weight even at zero pressure.[4][5]

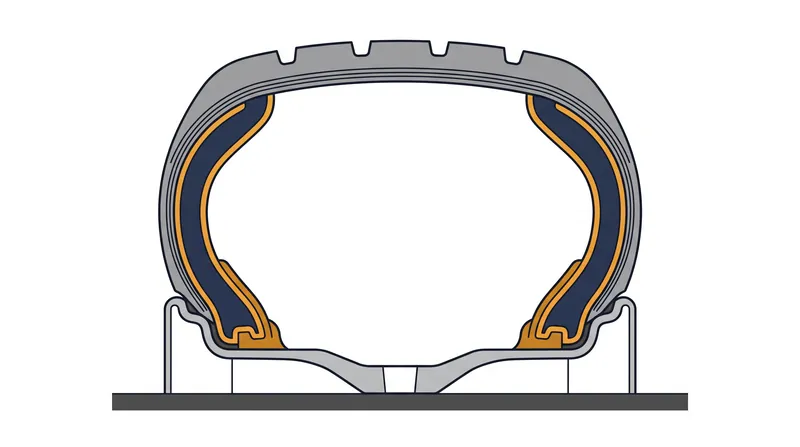

The most common run-flat design employs a self-supporting architecture. This involves inserting thick, heavily reinforced rubber wedges into the sidewall of a radial tire casing.[3][5]

Under normal inflation, the pneumatic pressure carries the vehicle's weight, much like a standard radial. Upon puncture, however, the reinforced sidewalls act as structural pillars, preventing the wheel rim from crushing the tire casing against the pavement.[2][5]

This emergency mobility allows a vehicle to travel up to 50 miles at reduced speeds without air. However, the added mass and rigidity of the sidewall inserts compromise the primary advantage of the radial design, transmitting more road shock into the cabin and increasing overall rolling resistance.[2][3]

The integration of these architectures is heavily influenced by broader automotive trends. The transition to electric vehicles (EVs), which are significantly heavier than internal combustion counterparts due to battery mass, is straining the limits of standard radial load capacities and requiring new structural reinforcements.[7]

Simultaneously, the removal of spare tires to save weight and space in modern vehicle packaging has accelerated the adoption of run-flat technologies, despite their compromises in ride quality and higher replacement costs.[4][7]

Ultimately, tire construction remains an exercise in managing physical trade-offs. Whether prioritizing the puncture resistance of a bias-ply, the efficiency of a radial, or the emergency endurance of a run-flat, the underlying architecture dictates the operational limits of the vehicle it supports.[7]
