The Mechanics of Carbon Ceramic Brakes: How They Achieve Zero Fade and When They Outperform Steel Rotors

The automotive community is sharply divided on the ultimate braking setup. Walk into any high-end dealership, and the sales pitch insists that carbon-ceramic brakes are an essential, non-negotiable upgrade for serious performance. Yet, wander the paddock at a weekend track day, and you will find seasoned amateur racers actively swapping those same exotic rotors out for traditional cast iron. Resolving this contradiction requires looking past the marketing brochures and into the material science of how a vehicle actually turns kinetic energy into heat, and what that means for the owner's wallet and driving experience.[2][10]

Every braking system is fundamentally a heat sink. When a 3,500-pound vehicle decelerates from 120 mph, the friction between the brake pad and the rotor generates temperatures exceeding 1,000 degrees Fahrenheit. Traditional cast-iron rotors absorb this heat effectively, but under repeated heavy braking, they reach their thermal limit. The iron expands, the brake fluid boils, and the pad compound begins to outgas, creating a microscopic layer of vapor between the pad and the rotor. This phenomenon, known as brake fade, results in a terrifying loss of stopping power just when the driver needs it most.[1][4]

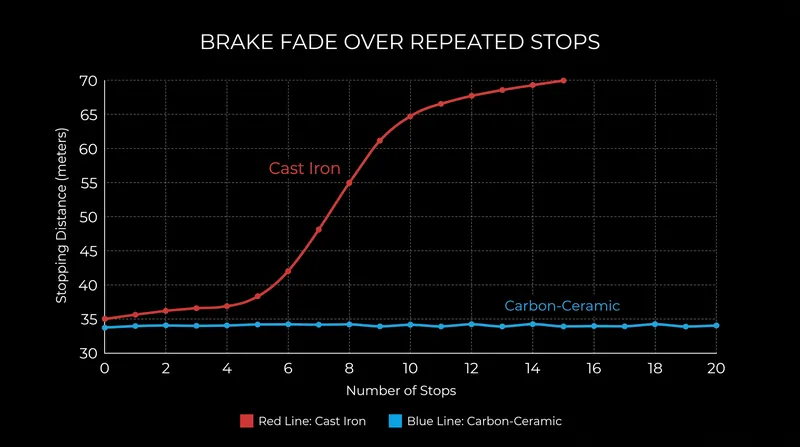

Carbon-ceramic material (CCM) solves the thermal ceiling problem through its unique composition. Manufactured by baking carbon fibers and silicon resin at 1,700 degrees Celsius, the resulting matrix is exceptionally hard and thermally stable. Unlike iron, a carbon-ceramic rotor does not warp or degrade when subjected to repeated 1,500-degree heat cycles. The silicon carbide friction surface maintains a consistent coefficient of friction regardless of how many times the vehicle is hauled down from triple-digit speeds. For a driver navigating a 20-minute track session, the brake pedal remains exactly as firm on the final lap as it was on the first.[5][7][8]

Beyond thermal management, the most tangible benefit of carbon-ceramic brakes is weight reduction. A typical cast-iron rotor for a modern supercar weighs roughly 35 pounds. A dimensionally identical carbon-ceramic rotor weighs approximately 17 pounds. This 50 percent reduction in mass is crucial because it represents "unsprung weight"—the components of the car not supported by the suspension. Shedding nearly 70 pounds of unsprung mass across all four corners dramatically improves the suspension's ability to keep the tires in contact with the road over bumps, resulting in sharper steering response and improved ride quality.[3][6]

However, the same thermal properties that make carbon-ceramics invincible on the track create distinct compromises on the street. Carbon-ceramic pads and rotors are designed to operate optimally at high temperatures. On a cold morning commute, or during a long highway stint in the rain, the brakes may lack the immediate, confidence-inspiring "bite" of traditional iron brakes. The driver must apply significantly more pedal pressure for the first stop of the day. For a vehicle used primarily for grocery runs and highway cruising, this characteristic can make the car feel less responsive in emergency situations until heat is built up in the system.[4][8]

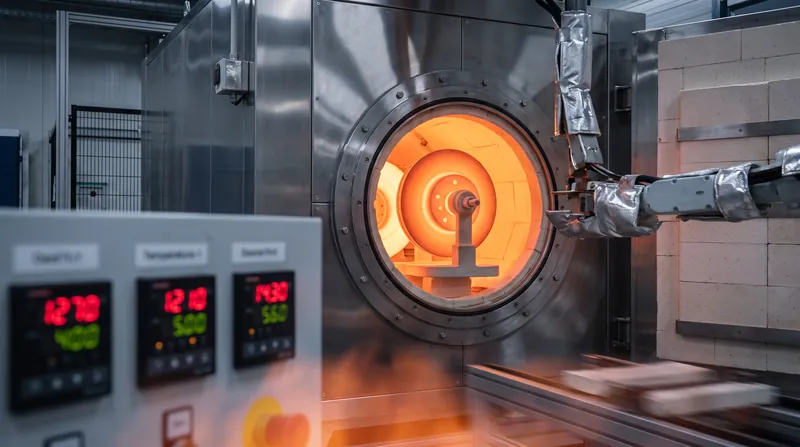

The ultimate dividing line between iron and carbon-ceramic is the financial reality of ownership. The manufacturing process for a single carbon-ceramic rotor takes nearly 20 days, involving complex vapor infiltration and machining with diamond-tipped tools. This complexity is reflected in the price: a replacement set of four rotors and pads can easily exceed $15,000. While manufacturers often claim the rotors will last the lifetime of the vehicle under normal street driving, track use accelerates wear exponentially through oxidation at extreme temperatures.[2][7][9]

This cost disparity explains the paddock phenomenon of "iron conversions." For the amateur racer, replacing iron rotors multiple times a season is vastly more economical than replacing a single set of carbon-ceramics. Recognizing this divide, the aftermarket has evolved to offer high-performance iron replacement rotors specifically designed to bolt onto cars originally equipped with carbon-ceramics, allowing owners to preserve their expensive factory rotors on a shelf while burning through affordable iron on the track.[6][10]

Ultimately, the choice between iron and carbon-ceramic is not a question of which is universally better, but which is better suited to the owner's specific use case. For the uncompromising track weapon or the flagship supercar where unsprung mass is the enemy, carbon-ceramics are an engineering triumph. But for the weekend canyon carver or the daily-driven sports sedan, the traditional iron rotor remains a remarkably capable and financially sensible piece of technology.[10]
