How a New 'Super Steel' Could Cut Green Hydrogen Equipment Costs by 40 Times

Inside a proton exchange membrane (PEM) electrolyzer, the environment is violently hostile. At roughly 1,600 millivolts, water is torn apart into hydrogen and oxygen, creating an electrochemical crucible that dissolves ordinary metals in minutes. To survive this, the structural components of modern electrolyzers are forged from titanium and coated with precious metals like platinum or gold. This brute-force materials engineering works, but it imposes a crippling financial ceiling on the green hydrogen industry.[1][5]

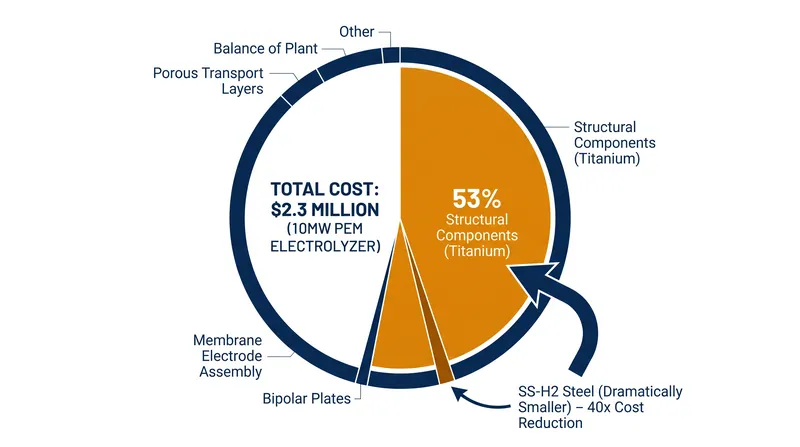

The numbers dictate the limits of scale. A standard 10-megawatt PEM electrolysis system costs approximately $2.3 million to build. Of that total capital expenditure, a staggering 53 percent is consumed entirely by the structural materials required to house the reaction safely. The chemistry of splitting water is well understood, but the vessel required to contain it remains prohibitively expensive, effectively anchoring the price of green hydrogen above fossil-fuel alternatives.[1][2]

That economic anchor may now have a release mechanism. Researchers at the University of Hong Kong (HKU), led by Professor Mingxin Huang, have engineered a novel alloy dubbed "stainless steel for hydrogen," or SS-H2. By fundamentally altering how the steel protects itself under high electrical stress, the team has created a material that matches the corrosion resistance of titanium at a fraction of the price.[2][3]

The implications for infrastructure scaling are profound. Replacing titanium-based structural materials with SS-H2 could reduce the cost of those specific components by a factor of 40. When applied to the overall system architecture, this material substitution could effectively halve the total capital cost of a commercial-scale electrolyzer, fundamentally shifting the economics of green hydrogen production.[1][2]

To understand why SS-H2 is a breakthrough, one must look at why conventional stainless steel fails. For over a century, stainless steel has relied on a single defensive mechanism: chromium. When exposed to oxygen, the chromium in the steel forms a microscopic, passive oxide layer that shields the underlying iron from rust and degradation. It is a highly effective barrier in everyday environments, from kitchen sinks to marine architecture.[2][5]

But an electrolyzer is not an everyday environment. When the electrical potential surpasses 1,000 millivolts—well below the 1,600 millivolts required to efficiently oxidize water—the protective chromium layer begins to break down. It undergoes transpassive corrosion, dissolving into soluble chromium species and leaving the steel exposed to rapid destruction. Even elite, marine-grade alloys like 254SMO cannot survive these voltages.[2][3]

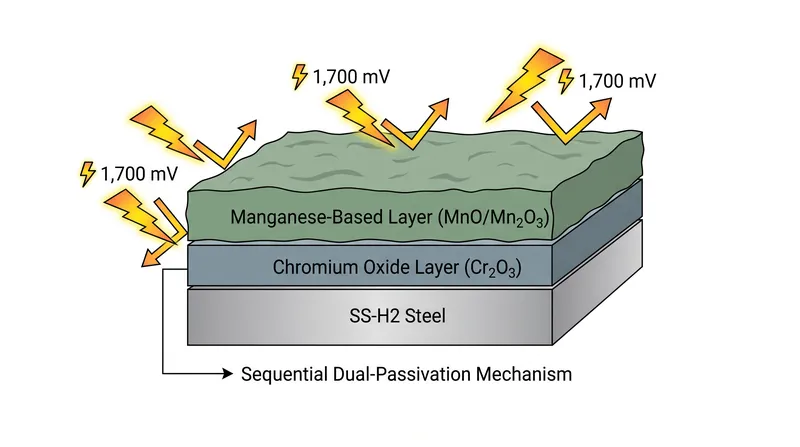

The HKU team approached this failure point by engineering a secondary line of defense. They utilized manganese, an element historically viewed by metallurgists as detrimental to corrosion resistance. In a counter-intuitive discovery that initially baffled corrosion scientists, the researchers found that at around 720 millivolts, a secondary manganese-based layer forms directly on top of the initial chromium layer.[2][5]

This "sequential dual-passivation" strategy acts as an electrochemical failsafe. As the voltage climbs and the chromium layer approaches its breaking point, the manganese shield takes the brunt of the stress. In laboratory testing, this dual-layer mechanism protected the SS-H2 alloy up to an ultra-high potential of 1,700 millivolts, allowing it to operate comfortably within the voltage range required for water electrolysis.[2][4]

Crucially, the material demonstrated this resilience not just in purified water, but in chloride-rich media—specifically, saltwater. The ability to directly electrolyze seawater without prior desalination has long been a holy grail for the green hydrogen sector. Desalination adds significant energy and infrastructure costs to the production chain, particularly in arid, coastal regions where solar power is abundant but freshwater is scarce.[3][4]

By proving stable in saltwater environments, SS-H2 opens the door to co-locating massive hydrogen production facilities directly alongside offshore wind farms or coastal solar arrays. The raw feedstock—ocean water—can be pumped directly into the system, bypassing the purification plants that currently bottleneck coastal hydrogen projects.[1][4]

The transition from a laboratory breakthrough to industrial deployment, however, requires more than just proving the chemistry. The raw SS-H2 alloy must be manufactured into the complex, porous structures and fine meshes required inside a commercial electrolyzer. These components demand precise machining and fabrication, processes that can introduce new stresses and vulnerabilities into the metal.[4][6]

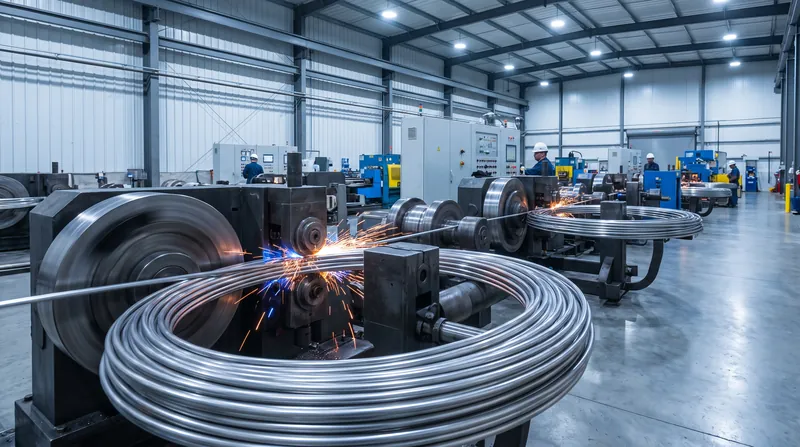

Progress on this front is already underway. The HKU research team has partnered with manufacturing facilities in mainland China to scale up production, successfully drawing tons of SS-H2 into industrial wire. This indicates that the alloy can be produced using standard metallurgical equipment, avoiding the need for bespoke, highly specialized manufacturing lines that would offset the material savings.[2][4]

The broader energy sector is watching these developments closely. Green hydrogen is widely considered the only viable decarbonization pathway for heavy industries that cannot be electrified, such as steelmaking, maritime shipping, and aviation. Yet, high production costs have kept adoption stubbornly low, with many planned hydrogen hubs stalling before reaching final investment decisions.[1][6]

If SS-H2 can be reliably stamped, woven, and welded into commercial electrolyzers, it removes one of the largest financial hurdles facing the industry. By solving a materials science problem, researchers have effectively unlocked a systems-level economic bottleneck, providing a clear line of sight to cost-competitive green hydrogen.[5][6]
