Huawei Unveils Kirin 9050 'Taolu Chip' Using 3D Stacking to Bypass Sanctions and Compete at 3nm Level

The common assumption about the global semiconductor race is that whoever possesses the smallest manufacturing node automatically wins. For years, the industry has equated progress strictly with shrinking transistor geometries—moving from 5nm to 3nm and beyond using highly restricted extreme ultraviolet (EUV) lithography machines. But Huawei’s latest silicon announcement suggests that the physical size of the transistor is no longer the only metric that matters. By vertically stacking logic circuits rather than laying them flat, the Chinese tech giant claims to have achieved 3nm-equivalent performance using older, unrestricted manufacturing equipment.[2][6]

At the International Symposium on Circuits and Systems (ISCAS) in Geneva, Huawei officially detailed the architecture behind its upcoming Kirin 9050 processor, internally codenamed the "Taolu" chip. The processor, which will power the upcoming Mate 90 smartphone series this September, is reportedly the company's first mobile chip to break the 3GHz barrier, featuring a 3.4GHz prime core. According to leaked test data and Huawei's own presentations, the Kirin 9050 delivers comprehensive performance that rivals TSMC's first-generation 3nm process and even edges out Apple's older A18 Pro in specific benchmarks.[1][2][3][5]

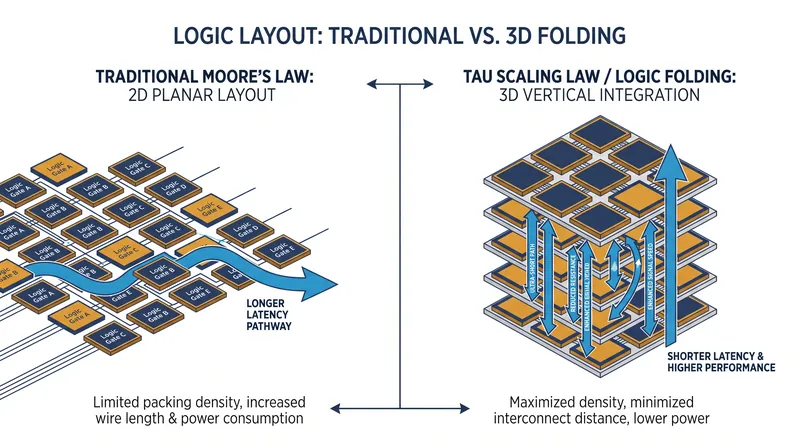

To understand how Huawei is pulling this off without ASML's EUV machines, it is necessary to look past the marketing hype of node names. The company is not actually manufacturing 3nm transistors. Instead, it is employing a technique it calls "logic folding"—a form of advanced 3D integrated circuit (IC) stacking. While Western companies typically use 3D stacking to fuse different types of chips together, such as placing memory on top of a processor, Huawei is stacking core logic gates vertically.[1][6]

By shortening the physical distance between these logic gates, the architecture drastically reduces the resistive-capacitive (RC) delay that traditionally slows down signal propagation across a two-dimensional plane. Huawei claims this three-dimensional reconstruction increases transistor density by 53.5% and boosts large-core energy efficiency by 41%. In practical terms, this effectively allows silicon manufactured on 7nm or 5nm DUV equipment to perform like a much more advanced node, bypassing the physical limitations that typically require extreme ultraviolet lithography to overcome.[2][5]

Huawei has branded this alternative engineering methodology the "Tau Scaling Law"—or Tao's Law—positioning it as a successor to traditional industry metrics. It represents a fundamental pivot away from Moore's Law, which dictates that the number of transistors on a microchip doubles roughly every two years through geometric miniaturization. Instead, the Tau Law substitutes temporal and spatial optimization for physical shrinking. By standardizing a mathematical framework to make vertical logic stacking a scalable, automated design process, Huawei is attempting to rewrite the rules of semiconductor advancement entirely.[2][5][6]

However, the semiconductor industry is not universally convinced that logic folding is a permanent substitute for node miniaturization. Kevin Zhang of TSMC has publicly pushed back on the Tau scaling theory, noting that while die stacking is an innovative way to increase computation density per cubic centimeter, it cannot fully replace the raw energy efficiency gained by shrinking transistor geometries. According to TSMC, moving from a 2nm to a 1.4nm node naturally reduces power consumption by 30%—a fundamental physics advantage that 3D stacking struggles to match due to the immense heat generated by multiple active layers.

Furthermore, analysts caution against taking the "3nm-equivalent" claims at face value without independent power-draw testing. While the Kirin 9050 may match the raw speed of an Apple A18 Pro, the thermal management required to sustain a 3.4GHz clock speed across stacked logic layers is immense. Huawei has reportedly developed next-generation packaging to handle this heat, but whether it can maintain peak performance in a fanless smartphone chassis without aggressive thermal throttling remains to be seen when the Mate 90 actually ships.[1][3]

If the Kirin 9050 performs as advertised in consumer devices, it will mark a watershed moment in the US-China tech conflict. It would prove that export controls on EUV lithography have not halted China's semiconductor advancement, but merely forced it down a different evolutionary branch. As Huawei prepares to launch the Mate 90 series in standard, Pro, Pro Max, and RS Master Edition variants, the global market will soon have physical hardware to test whether the Tau Scaling Law is a genuine paradigm shift or just a highly optimized workaround.[2][3][4][6]
