How Caltech's Ultra-Low-Loss Optical Chip Rewrites the Rules of AI Data Centers and Quantum Computing

The bottleneck in modern computing is no longer how fast a processor can calculate, but how much energy it takes to move data from one chip to another. As artificial intelligence models scale to trillions of parameters, data centers are hitting a thermal and electrical wall. The energy required to push electrical signals through copper interconnects is becoming unsustainable, generating massive amounts of heat and capping the physical scaling of server infrastructure.[3]

For years, the proposed solution has been to replace copper wires with light. Optical fiber already forms the backbone of the global internet, transmitting data across oceans with near-zero signal degradation. But shrinking that fiber-optic performance down to the microscopic scale of a silicon chip has been an elusive engineering challenge. Traditional chip-scale optical pathways suffer from high signal loss, forcing engineers to pump more power into the system just to keep the light readable.[1][3]

Now, a team of researchers at the California Institute of Technology (Caltech) has published a breakthrough in the journal Nature that bridges this gap. They have successfully printed germano-silicate—the exact highly pure glass material used in long-haul optical fibers—directly onto standard 8-inch and 12-inch silicon wafers. This allows the chips to be manufactured using standard CMOS foundry processes.[1]

To understand the significance of this development, it helps to look at the current standard. Most optical chips today rely on silicon nitride to guide light. While effective for the near-infrared wavelengths used in traditional telecommunications, silicon nitride struggles at shorter, visible wavelengths. At those frequencies, signal loss (attenuation) increases dramatically due to material absorption and surface scattering.[1]

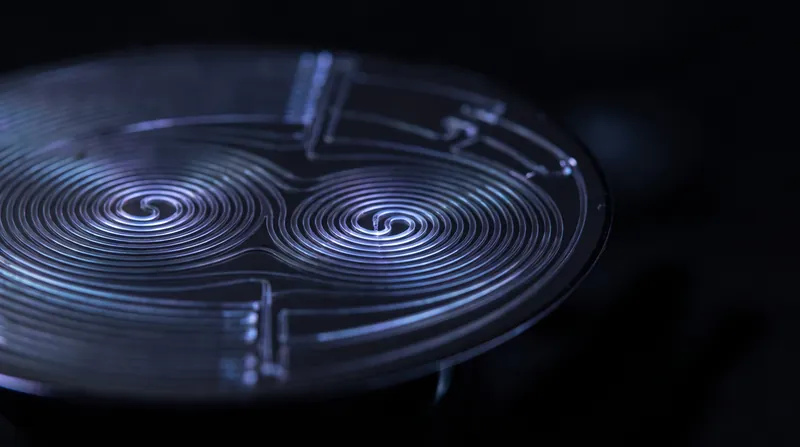

The Caltech team, led by Professor Kerry Vahala, took a different approach. Instead of trying to optimize silicon nitride, they adapted the spool-based fabrication of highly pure optical fiber into a lithography-compatible process. The researchers laid out these new germano-silicate waveguides in a spiral geometry, allowing light to travel a massive optical distance while remaining confined within a microscopic footprint.[1]

The critical innovation, however, is a thermal reflow process. By carefully heating the glass, the team smoothed the waveguide surfaces to near-atomic perfection. This virtually eliminates the microscopic roughness that normally scatters light and degrades the signal, resulting in resonator quality factors surpassing 180 million.[1]

The claims surrounding optical computing often veer into hype, promising instant revolutions in processing speed and zero-latency AI. It is important to distinguish what Caltech has actually shipped in the lab from what is merely theoretically possible. What the team has demonstrated is a passive waveguide platform, not a fully integrated, commercially ready optical CPU.[3]

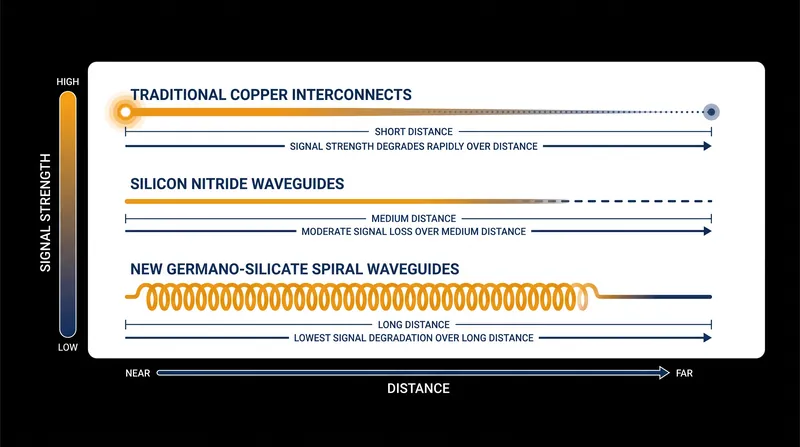

However, the performance metrics of this passive platform are unprecedented. At visible wavelengths, the germano-silicate waveguides exhibit a 20-fold reduction in optical loss compared to the previous silicon nitride records. This means a photon can travel 20 times further through the chip before its signal becomes unreadable, drastically reducing the need for power-hungry signal amplification.[1]

Furthermore, when the team built lasers using this new platform, they recorded a 100-fold improvement in optical coherence. Coherence is the measure of how perfectly the light waves remain in sync over time and distance—a critical requirement for precision instruments, optical clocks, and advanced quantum systems.[1]

While these numbers are staggering, integrating active components—like modulators, switches, and photodetectors—into this passive glass platform remains a complex hurdle. The transition from a pristine laboratory demonstration to a mass-manufactured, fully packaged optical transceiver that can be deployed in commercial servers will take years of further engineering.[2][3]

Yet, the implications for AI data centers are profound. These waveguides can efficiently transfer light between standard optical fibers and chip-based semiconductor lasers. This could drastically reduce the power draw of server infrastructure, which currently spends massive amounts of electricity just converting electrical signals to optical ones and back again at the edge of every server rack.[1][3]

Beyond AI, the visible-wavelength performance unlocks new possibilities for quantum computing. Many quantum systems, such as trapped-ion computers and chip-scale atomic clocks, operate strictly in the visible spectrum. By providing a low-loss pathway for visible light, the Caltech platform could allow these delicate quantum systems to be miniaturized from room-sized laboratory setups onto scalable, manufacturable silicon chips.[1]

The era of the fully optical computer may still be a distant horizon, heavily obscured by marketing language. But by solving the fundamental problem of on-chip signal loss and proving that fiber-optic glass can be integrated into standard semiconductor manufacturing, Caltech has laid the physical groundwork required to eventually get there.[1][3]
