China Begins Mass-Production of Domestically Developed DUV Lithography Machines

China has begun mass-producing its own immersion deep-ultraviolet (DUV) lithography machines, the critical hardware used to print circuits onto silicon wafers. A state-owned company in Shanghai is leading the effort, aiming to deliver the first units to domestic chipmakers like SMIC and Hua Hong later this year. It is a direct bypass of Western export controls, but it is not an immediate commercial threat to ASML's global monopoly.[1][2]

The breakthrough centers on Shanghai Aishengna Electronic Technology Group, a relatively new state-backed entity that consolidated engineering talent from several Chinese lithography startups. According to reports, the company has moved beyond prototypes and into early-stage mass production, marking one of the country's biggest advances in semiconductor manufacturing equipment.[1][2][3]

The initial production targets are modest. Aishengna expects to build roughly five immersion DUV machines in 2026, scaling up to about 20 units in 2027. These first machines are earmarked for China's leading semiconductor foundries, including SMIC, Hua Hong Semiconductor, and memory manufacturer ChangXin Memory Technologies (CXMT).[1][2]

To understand the significance of this development, it is necessary to separate the actual capability from the geopolitical hype. Immersion DUV is not the bleeding edge of semiconductor manufacturing—that title belongs to extreme ultraviolet (EUV) lithography, a technology China still does not possess and remains years away from commercializing.[1][4]

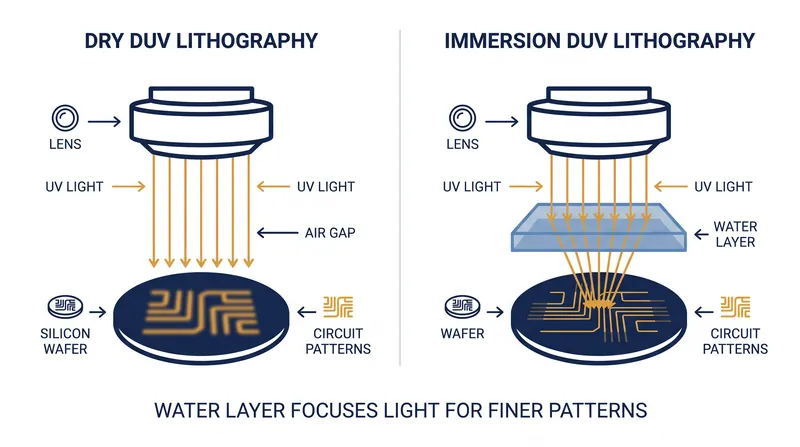

However, immersion DUV is the workhorse of the global chip industry. By using a layer of water between the projection lens and the silicon wafer, immersion systems can focus light more sharply than conventional dry DUV machines. This allows them to print 28-nanometer class features in a single exposure.[2][4]

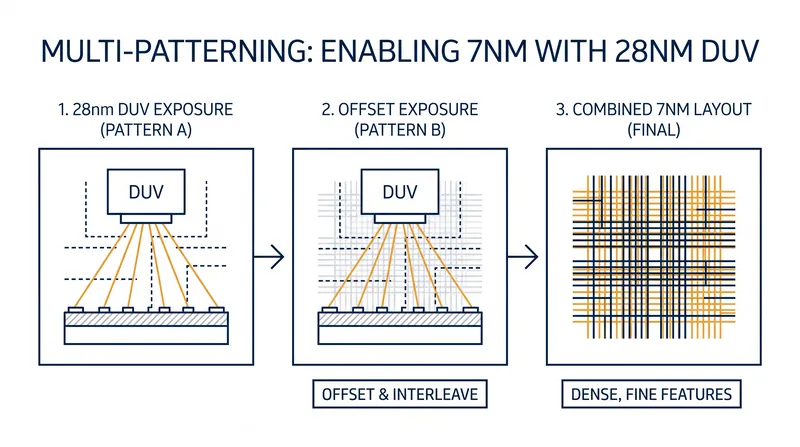

Crucially, these machines can be pushed further. Using a technique called multi-patterning—where the wafer is exposed multiple times to create denser circuit layouts—immersion DUV can be used to manufacture 7-nanometer chips. In extreme cases, it can even reach 5-nanometer geometries, though at a significant cost to production yield and efficiency.[2][5][6]

This is exactly the workaround that SMIC has been using with imported ASML machines to produce advanced chips for domestic smartphones and AI accelerators. By manufacturing these machines domestically, China is securing the very chokepoint that U.S. and Dutch export controls were designed to squeeze.[2][5]

Yet, the announcement of 'mass production' requires a skeptical eye. Building a handful of lithography machines is a monumental engineering feat, but it is entirely different from deploying them in high-volume commercial manufacturing where uptime and precision are paramount.[3][4]

ASML's dominance is not just built on the physical hardware of its Twinscan systems. It is built on decades of accumulated process knowledge, a sprawling global supply chain, and an ecosystem of software, spare parts, and field service engineers that keep fabs running continuously.[3][4][5]

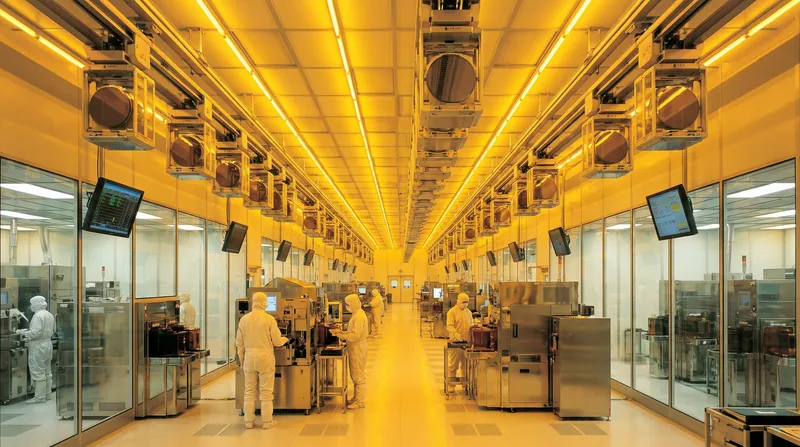

Chinese foundries will now have to qualify these domestic machines on their production lines. They must prove that the Aishengna systems can match the yield, overlay accuracy, and throughput of ASML's mature tools over thousands of wafer runs. Early reports indicate that the Chinese machines still lag significantly in reliability.[1][4]

Furthermore, the domestic supply chain is not entirely self-sufficient. While the majority of the components in the new DUV systems are manufactured in China, critical parts are reportedly still being imported from Japan. Delays from local suppliers have already slowed the initial production ramp-up.[2][5][6]

The financial markets reacted swiftly to the news, with ASML's stock dropping roughly 7% as investors weighed the long-term implications. However, industry analysts note that ASML's revenue trajectory is unlikely to be impacted in the near term. China remains a massive market for ASML's mature-node equipment, accounting for roughly 20% of its net sales this year.[1][2][4]

The real threat to Western equipment makers is structural, not immediate. If Aishengna can hit its target of 20 machines in 2027 and steadily improve their reliability, Chinese foundries will have a viable domestic alternative for mature and mid-tier advanced nodes, insulating them from future sanctions.[3][6]

This fundamentally alters the leverage of Western export controls. The U.S. strategy relied on freezing China's semiconductor capabilities by cutting off access to the tools needed to make them. A homegrown immersion DUV scanner running at commercial volume proves that the blockade has instead accelerated Beijing's drive for technological autonomy.[3][4]

For now, the global semiconductor landscape remains stratified. ASML retains its absolute monopoly on EUV technology, keeping Western foundries generations ahead in the production of the most advanced AI and mobile chips. But in the critical middle ground of the market, the foundation of that monopoly is beginning to crack.[1][3]
