US Foundry Unveils First Monolithic 3D Chip, Delivering Order-of-Magnitude AI Speed Gains

When people imagine the future of artificial intelligence, they typically picture increasingly powerful processors crunching numbers at blinding speeds. But what everyone gets wrong about AI hardware is the assumption that computing power is the primary bottleneck. In reality, modern AI is suffocating behind the "memory wall." The true limit on artificial intelligence is not how fast a chip can calculate, but how quickly it can shuttle data back and forth between memory storage and logic circuits across a flat, two-dimensional silicon plane. Moving data horizontally across these microscopic distances consumes massive amounts of time and energy, creating a traffic jam that starves the processor of the information it needs to function efficiently.[2][7]

A sweeping new architectural shift aims to demolish that wall entirely. A collaborative engineering team from Stanford University, Carnegie Mellon University, the University of Pennsylvania, and the Massachusetts Institute of Technology has successfully manufactured the first monolithic three-dimensional integrated circuit in a commercial facility. Partnering with SkyWater Technology, the largest exclusively U.S.-based pure-play semiconductor foundry, the researchers have moved vertical chip design out of bespoke academic laboratories and onto a real-world production line.[1][3]

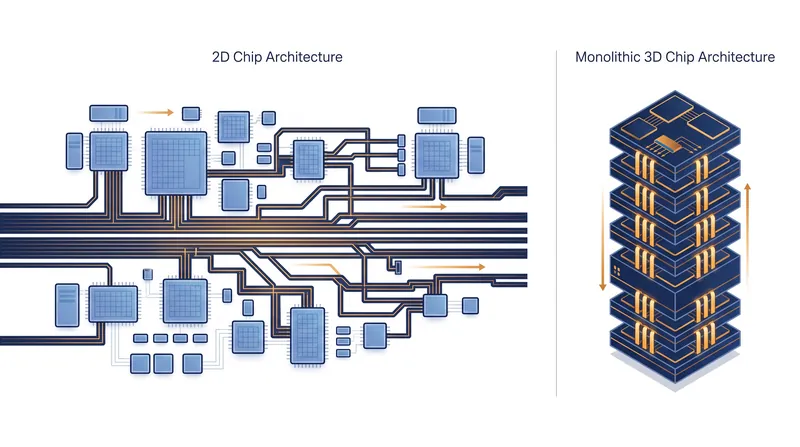

The fundamental concept behind the monolithic 3D chip is a transition from urban sprawl to high-rise architecture. Traditional two-dimensional chips spread their components across a single flat surface, forcing data to travel relatively long horizontal distances. The new prototype instead stacks ultra-thin layers of circuitry directly on top of one another. Vertical wiring acts as a network of high-speed elevators, linking memory and computing elements with an unprecedented density of connections. By drastically shortening the physical distance data must travel, the chip bypasses the latency and energy penalties that have long constrained flat designs.[3][5]

It is crucial to distinguish this monolithic approach from current advanced packaging techniques, which are often marketed under the 3D umbrella. Today's state-of-the-art AI accelerators, such as those utilizing 2.5D packaging or stacked chiplets, rely on manufacturing separate, finished silicon dies and then bonding them together. While effective, the connections between these separate chips remain relatively coarse and sparse. Monolithic 3D integration, by contrast, builds each new device layer sequentially on the exact same wafer in one continuous manufacturing flow. This allows for vertical connections that are orders of magnitude denser than what is possible with bonded chiplets.[2][4]

Achieving this continuous vertical build has historically been blocked by a severe thermal constraint. Standard semiconductor manufacturing requires extremely high temperatures to deposit and activate silicon layers. If engineers attempt to build a second layer of logic directly on top of a finished first layer, the intense heat required for the upper tier simply melts or degrades the delicate circuitry already established below. To solve this, the research consortium had to engineer a low-temperature back-end process that could operate near 415 degrees Celsius—cool enough to preserve the underlying foundation while still allowing complex new structures to form above.[2][6]

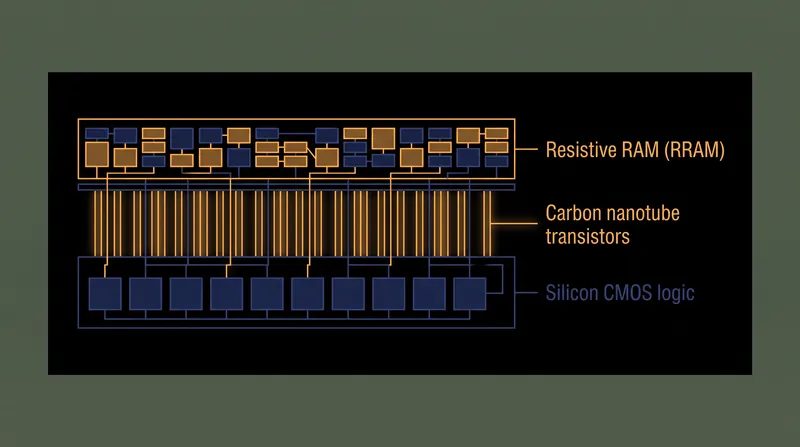

The resulting prototype is a heterogeneous stack of distinct materials, each chosen for a specific role in the vertical architecture. The foundation consists of standard silicon CMOS logic, the workhorse of modern computing. Above that, the team integrated layers of Resistive RAM, or RRAM, a type of non-volatile memory that switches states rapidly and consumes significantly less power than traditional memory modules. To connect these tiers, the engineers utilized carbon nanotube field-effect transistors. These microscopic, highly conductive cylinders form the dense vertical vias that allow the logic and memory layers to communicate almost instantaneously.[2][6]

The hardware tests conducted on the SkyWater-manufactured prototypes demonstrate the immediate viability of the architecture. In direct comparisons with conventional two-dimensional implementations operating at a similar footprint and latency, the monolithic 3D chip delivered roughly a four-fold improvement in both read bandwidth and compute throughput. Data simply moves faster when it only has to travel microns vertically rather than millimeters horizontally.[2][7]

Beyond the physical prototypes, the research team utilized the measured hardware data to simulate how taller, more complex stacks would perform on modern generative AI workloads. When modeling architectures derived from large language models like Meta's LLaMA, the simulations indicated that scaling the vertical integration could yield up to a twelve-fold performance improvement. This suggests that as the manufacturing process matures and allows for dozens of stacked layers, the speed gains will compound dramatically, offering a clear pathway to scale AI hardware without relying solely on shrinking transistor sizes.[6][7]

Speed, however, is only half of the equation; the other half is power consumption. The energy required to move data across a chip often exceeds the energy required to actually perform the computation. By minimizing that travel distance, the monolithic 3D architecture drastically reduces the energy penalty of data movement. The research group projects that continued scaling of this vertical integration could eventually deliver 100-fold to 1,000-fold improvements in the energy-delay product—a combined metric that evaluates both the speed and the electrical efficiency of a semiconductor device.[6][7]

The manufacturing context of this breakthrough is just as significant as the technical specifications. The prototype was not fabricated on a bleeding-edge 2-nanometer node using multi-hundred-million-dollar extreme ultraviolet lithography machines. Instead, it was manufactured on SkyWater's 200-millimeter production line in Minnesota, utilizing mature 90-nanometer and 130-nanometer process technologies. By achieving massive performance gains on older, highly reliable manufacturing nodes, the project proves that architectural innovation can rival node shrinkage as a driver of computing progress.[2][4]

This reliance on mature nodes also carries profound implications for the domestic semiconductor supply chain. The United States has struggled to compete with overseas foundries in manufacturing the absolute smallest transistors. However, by demonstrating that order-of-magnitude performance gains can be achieved through monolithic 3D integration on existing U.S. soil, the collaboration establishes a new blueprint for domestic hardware innovation. It offers a pathway for American foundries to produce world-class AI accelerators without needing to outspend international rivals on the most advanced lithography equipment.[1][3]

The implications for artificial intelligence extend far beyond the massive data centers that currently train frontier models. While hyperscalers will undoubtedly benefit from the increased bandwidth and reduced power consumption, the most transformative impact may be felt at the edge. Devices constrained by strict thermal limits and battery life—such as autonomous vehicles, smart city grid sensors, and advanced robotics—currently struggle to run complex AI models locally. The energy efficiency of monolithic 3D chips could untether high-performance AI from the cloud, allowing sophisticated inference to happen directly on the device.[2][7]

Despite the successful foundry demonstration, significant engineering hurdles remain before monolithic 3D chips appear in consumer devices. The most pressing challenge is thermal management. While the low-temperature fabrication process protects the chip during manufacturing, operating a dense, multi-layered chip generates substantial heat. In a traditional 2D chip, heat easily dissipates from the flat surface. In a 3D stack, the inner layers are insulated by the layers above and below them, creating thermal traps that could throttle performance or damage the device if not properly managed.[2][6]

Additionally, the semiconductor industry must adapt its electronic design automation tools to accommodate true vertical integration. For decades, chip design software has been optimized for two-dimensional layouts, routing wires across a flat plane. Designing a monolithic 3D chip requires routing connections in three dimensions simultaneously, balancing power delivery, signal integrity, and thermal dissipation across multiple heterogeneous layers. The software ecosystem will need a fundamental overhaul to support commercial-scale 3D design.[4][6]

Yield rates—the percentage of functional chips produced on a single wafer—will also dictate the commercial viability of the technology. Because monolithic integration builds layers sequentially, a defect in an upper layer can render the entire stack useless, wasting the time and materials invested in the functional layers below. SkyWater and its academic partners will need to prove that the high device yields seen in laboratory settings can be consistently replicated and maintained at high-volume commercial production scales.[1][4]

As the industry approaches the physical limits of Moore's Law—where transistors can scarcely be shrunk any further without encountering quantum tunneling effects—the transition to the third dimension is no longer optional; it is an existential necessity. The successful fabrication of a monolithic 3D chip in a commercial U.S. foundry marks the crossing of a critical threshold. It proves that the vertical frontier is not just a theoretical concept, but a manufacturable reality that will define the next decade of computing architecture.[3][5]
