TSMC Unveils A16 Chip Architecture With Backside Power Delivery for Next-Gen AI Processors

TSMC has successfully validated its A16 process technology, marking a definitive entry into the "Angstrom era" of semiconductor manufacturing. Scheduled for mass production in the fourth quarter of 2026, the A16 node is not merely a traditional reduction in transistor size. Instead, it represents a fundamental redesign of how a microchip receives electricity. By moving the power delivery network to the back of the silicon wafer, TSMC is solving a physical traffic jam that has threatened to stall the advancement of next-generation artificial intelligence processors.[1][4]

To understand the breakthrough, one must look at the microscopic real estate of a modern microchip. For decades, both the wires that deliver electricity (power) and the wires that transmit data (signals) have been layered on top of the transistors on the front side of the silicon wafer. As transistors have shrunk to atomic scales, these microscopic highways have become incredibly congested. Power lines and signal lines are forced to compete for the same vanishingly small amount of space.[2][5]

This congestion creates a severe problem known as "IR drop." As the power wires become thinner and more tightly packed, their electrical resistance increases. By the time the electricity navigates the labyrinth of wiring to reach the transistor, a significant amount of voltage has been lost to resistance. For high-performance chips that require massive, instantaneous surges of power, this voltage drop starves the transistors, limiting their speed and generating unwanted heat.[2][7]

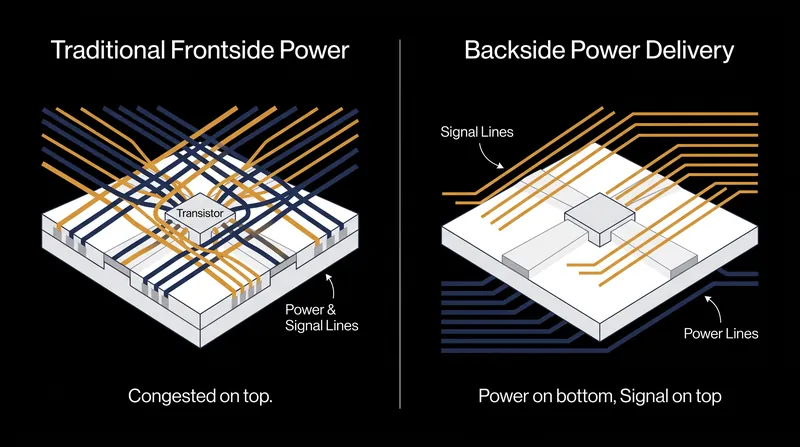

TSMC’s solution is a technology called the Super Power Rail (SPR), which is a proprietary implementation of a concept known as backside power delivery. Rather than forcing power and data to share the front of the chip, A16 moves the entire power distribution network to the back of the wafer. Special microscopic connections, known as backside contacts, are drilled through the silicon to deliver electricity directly into the base of the transistors.[3][6]

This architectural separation is akin to moving a city’s utility pipes into a dedicated underground tunnel system, leaving the surface streets entirely free for traffic. By relocating the bulky power grid, the front side of the chip is almost entirely liberated for data signal routing. This allows engineers to design shorter, more direct paths for data to travel, significantly reducing latency and improving the overall efficiency of the logic circuits.[2][3]

The immediate benefit of the Super Power Rail is a dramatic reduction in IR drop. Because the backside power lines do not have to compete for space, they can be made wider and thicker, offering a path of least resistance for the electricity. This ensures that the transistors receive a stable, abundant supply of power exactly when they need it, which is critical for the heavy workloads demanded by modern computing.[2][8]

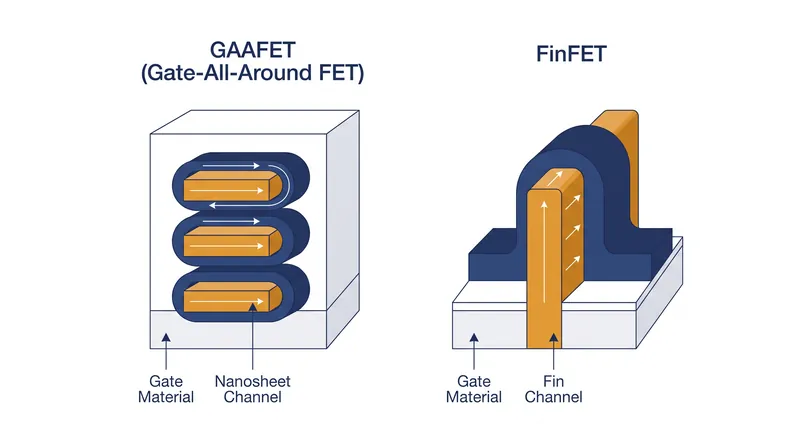

Alongside the Super Power Rail, the A16 node introduces a second major innovation: the Gate-All-Around (GAAFET) nanosheet transistor. For the past decade, the industry standard has been the FinFET, a design where the transistor channel stands up like a 3D fin, and the gate controls the flow of electrons from three sides. However, as components shrink below three nanometers, even FinFETs struggle to prevent electrons from leaking out when the transistor is supposed to be turned off.[2][6]

The GAAFET architecture solves this by shaping the conducting channel into microscopic ribbons or nanosheets. The gate material is then wrapped completely around all four sides of the channel. If a FinFET is like gripping a water hose with three fingers, a GAAFET is like wrapping your entire hand around it. This 360-degree control drastically reduces electron leakage and allows the transistor to switch on and off with far greater precision and energy efficiency.[2][4]

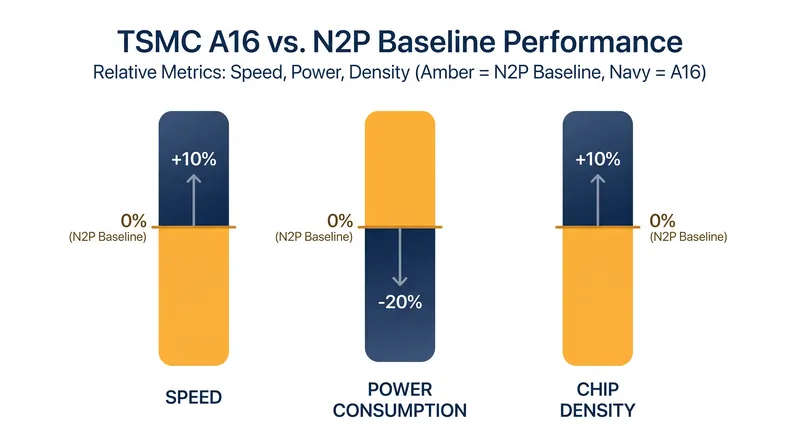

When the Super Power Rail and GAAFET transistors are combined, the performance gains are substantial. According to TSMC’s validation data, the A16 process delivers an 8% to 10% increase in computing speed while consuming the same amount of power as the previous N2P generation. Alternatively, if a chip designer wants to prioritize battery life or thermal management, A16 can reduce power consumption by 15% to 20% while maintaining the same operating speed.[4][8]

Beyond speed and power, the structural overhaul also yields a significant improvement in physical density. Because the front-side signal routing is no longer obstructed by power lines, engineers can pack the transistors closer together. The A16 process offers an 8% to 10% increase in chip density, allowing designers to fit more computational cores and memory caches into the exact same physical footprint.[3][4]

These specific improvements are tailor-made for the artificial intelligence industry. AI accelerators, such as those designed by Nvidia and Google, are currently the most power-hungry processors on the planet. Training large language models requires massive simultaneous switching currents and incredibly dense power grids. The physical limitations of front-side power delivery have become one of the primary bottlenecks capping the performance of these AI behemoths.[5][7]

By virtually eliminating IR drop and freeing up routing space, A16 provides the exact hardware foundation that next-generation AI requires. The stable power delivery allows high-utilization logic blocks to run at maximum capacity without starving for voltage, while the denser signal routing allows for faster data transfer between the processor's cores and its memory banks.[3][5]

TSMC is not the only foundry racing to implement this technology. Intel has been aggressively developing its own backside power delivery system, dubbed PowerVia, which debuted in testing earlier this year. Samsung is also preparing a similar architecture for its upcoming SF2Z process. The transition to backside power is universally recognized as the next mandatory step to keep Moore’s Law alive in the Angstrom era.[2][7]

However, TSMC has engineered a distinct strategic advantage in how it implements the technology. Historically, adopting a radical new architecture like backside power has required chip designers to completely overhaul their standard cell libraries and design methodologies. Intel’s PowerVia, for example, required significant modifications to the underlying cell architecture during its testing phase.[2][4]

In contrast, TSMC designed the A16 process to preserve the gate density and design flexibility of its previous N2P node. By making only minimal adjustments to the front-side structure, TSMC ensures that A16 remains highly compatible with existing chip designs. This strategy protects the billions of dollars that companies like Apple, AMD, and Nvidia have already invested in their design ecosystems, lowering the barrier to entry for the new node.[4][6]

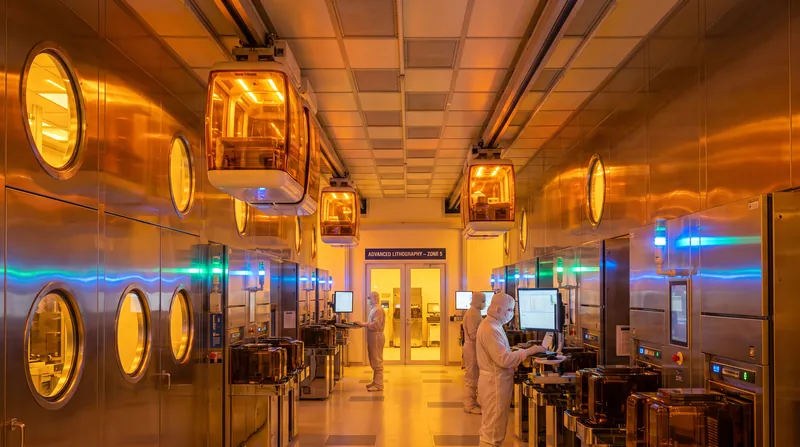

Despite the successful validation, the physical manufacturing of backside power delivery remains an extraordinary engineering challenge. To expose the backside of the transistors, the silicon wafer must be ground down to a fraction of its original thickness—often less than 30 micrometers. This incredibly fragile wafer must then be perfectly aligned with microscopic precision to connect the backside power vias to the nanometer-scale transistors on the front.[2][3]

The industry is closely watching TSMC’s ability to manage this manufacturing complexity at scale. Wafer thinning control, backside alignment accuracy, and overall yield rates will dictate the commercial viability of the A16 process. While TSMC has a proven track record of mastering complex manufacturing ramps, the Angstrom era leaves zero margin for error.[1][5]

With risk production underway and mass manufacturing slated for late 2026, the first consumer devices and enterprise AI servers utilizing A16 chips are expected to arrive in 2027. By fundamentally separating power from data, TSMC has not just shrunk the transistor; it has reimagined the physical architecture of computing, ensuring that the hardware can meet the insatiable demands of the AI revolution.[1][7]
