AI and X-Ray Imaging 'Unwrap' and Read Complete Ancient Philosophical Scroll from Herculaneum

For centuries, the fundamental rule of reading a book was that you had to open it. It seems like a self-evident truth, the kind of basic physical law that doesn't require a second thought. But when it comes to the Herculaneum papyri—the only intact library to survive from classical antiquity—that assumption proved catastrophic.[6]

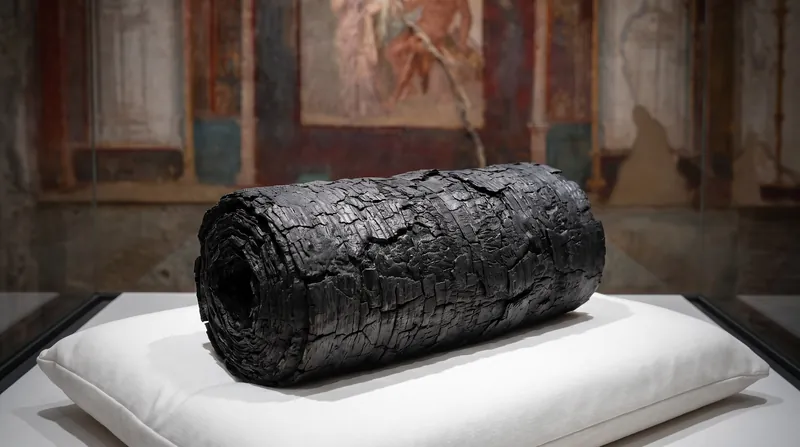

When Mount Vesuvius erupted in 79 AD, it didn't just bury the Roman town of Herculaneum in twenty meters of scorching mud and ash; it flash-fried a luxury villa's entire collection of papyrus scrolls. The intense heat carbonized the texts, turning them into brittle lumps that look more like burnt sausages or chunks of coal than ancient literature.[1][5]

The paradox of Vesuvius is that the very disaster that destroyed the library also preserved it. Had the scrolls been left to the open air, they would have rotted away millennia ago. Instead, they waited underground, perfectly sealed in a tomb of volcanic debris, until their discovery by a farmer digging a well in the 18th century.[1]

But the urge to read them led to disaster. Early excavators, operating under the assumption that a closed book is a useless one, tried to physically unroll the carbonized cylinders. They used knives, rose water, and even a specialized machine invented by a Vatican conservator. The result was tragic: the brittle papyrus simply crumbled into black dust, taking lost works of philosophy with it.[4][5]

Today, the paradigm has entirely shifted. We no longer need to open a book to read it. A coalition of computer scientists, physicists, and papyrologists has successfully read an entire Herculaneum scroll—known as PHerc. 1667—from end to end, without ever breaking its physical seal.[3][4]

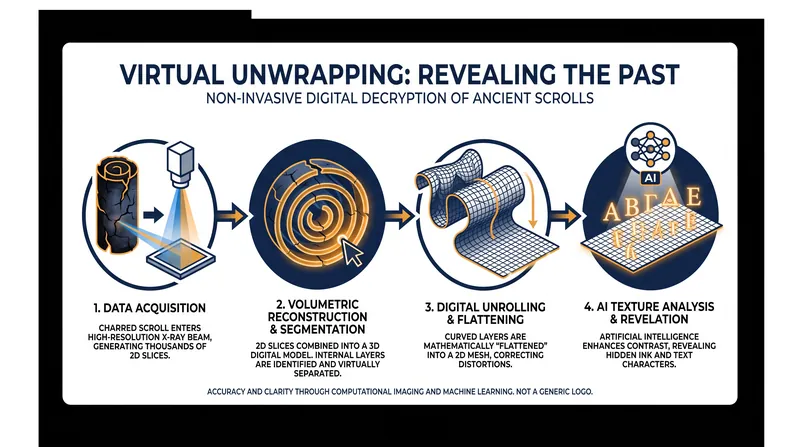

The breakthrough relies on a technique called "virtual unwrapping," pioneered by Dr. Brent Seales and his team at the University of Kentucky's EduceLab. The process begins not with a scalpel, but with a particle accelerator.[2][3]

Standard medical X-rays are useless here. A hospital CT scan relies on the density difference between bone and tissue. But the Herculaneum scrolls were written with carbon-based ink on carbon-based papyrus, and then the whole thing was carbonized by a volcano. To a standard X-ray, it's just a solid block of carbon.[1][2]

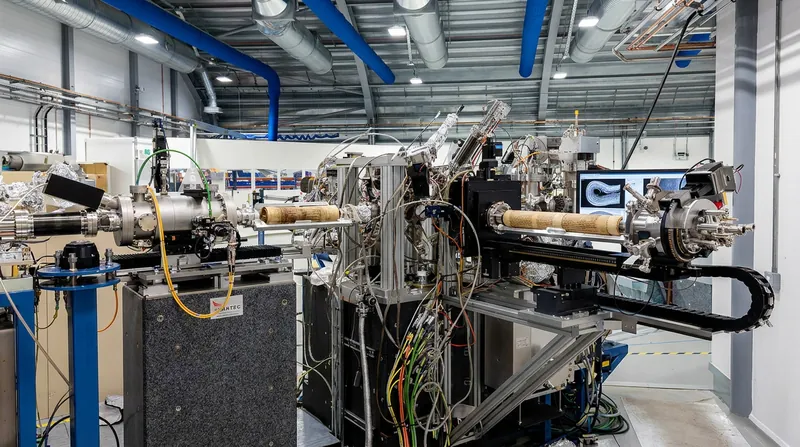

To see inside, researchers take the scrolls to synchrotron facilities—massive particle accelerators like the Diamond Light Source in the UK or the ESRF in France. These facilities generate high-resolution, phase-contrast X-rays that can detect microscopic structural changes in the papyrus fibers, mapping the internal geometry of the scroll in three dimensions.[3][4]

Once the 3D scan is complete, the digital unrolling begins. Custom software traces the tightly wound, crinkled layers of papyrus through the 3D volume, effectively flattening the scroll on a computer screen. But even then, the ink remains invisible to the human eye.[1]

This is where artificial intelligence takes over. Through a global open-science initiative called the Vesuvius Challenge, thousands of computer scientists competed to build machine-learning models capable of detecting the hidden ink.[1][3]

The AI doesn't look for color; it looks for texture. When the ancient scribes applied ink to the papyrus, it subtly altered the physical structure of the fibers. By training neural networks on fragments where ink was visible, the models learned to spot these microscopic topological changes within the sealed scrolls.[2][3]

The results have been nothing short of miraculous. The AI successfully illuminated the hidden Greek letters, allowing researchers to read PHerc. 1667 in its entirety. The recovered text spans roughly 1.5 meters across 20 continuous columns.[3][4]

What emerged from the digital ashes was a philosophical treatise on ethics, art, and human behavior. Scholars note that the text bears the distinct hallmarks of Stoic philosophy—a fascinating twist, given that the Villa of the Papyri was previously thought to house an almost exclusively Epicurean collection.[3][4]

The successful reading of a complete scroll proves that the technology works at scale. It is no longer a theoretical proof-of-concept; it is a functional, non-invasive pipeline for resurrecting lost literature.[6]

The implications for classical studies are staggering. The majority of texts referenced by ancient authors have been lost to time. We possess only a fraction of the works written by the great Greek and Roman thinkers.[5][6]

More than 600 Herculaneum scrolls remain unopened in Naples, and archaeologists believe thousands more may still be buried in the unexcavated lower levels of the villa.[3][5]

We are standing on the precipice of a second Renaissance. The first was sparked by the rediscovery of physical manuscripts in monastic libraries; the second is being driven by algorithms and X-rays, illuminating words that haven't been seen since the Roman Empire fell.[6]
