IBM Demonstrates Modular Deep-Cryo Architecture to Scale Quantum Computers

The promise of quantum computing—solving chemical simulations, optimizing global supply chains, or discovering new materials—has long been physically bottlenecked by the size of a refrigerator. Superconducting quantum processors must operate at temperatures colder than deep space to function. For years, the industry standard has been the cylindrical dilution refrigerator, a vacuum-sealed apparatus that cools delicate quantum chips to near absolute zero. But as processors grow more complex, these cylinders have hit a hard physical limit.

The constraint is not just the cooling power, but the wiring. Every additional qubit requires dedicated control cables to send and receive microwave signals. As quantum chips scale from dozens to hundreds of qubits, the dense thicket of wiring grows faster than the available space inside a traditional cylindrical cryostat. Engineers refer to this as the wiring-density constraint, a fundamental hurdle that threatens to halt the progress of superconducting quantum computers before they can reach fault tolerance.[1][2]

To break this bottleneck, IBM has radically redesigned the physical infrastructure of quantum computing. The company recently announced that it has successfully connected and cooled two modular cryogenic cells to below 15 millikelvin. Instead of relying on a single, massive cylinder, the new architecture utilizes box-shaped aluminum cells that can be linked together side-by-side.[3]

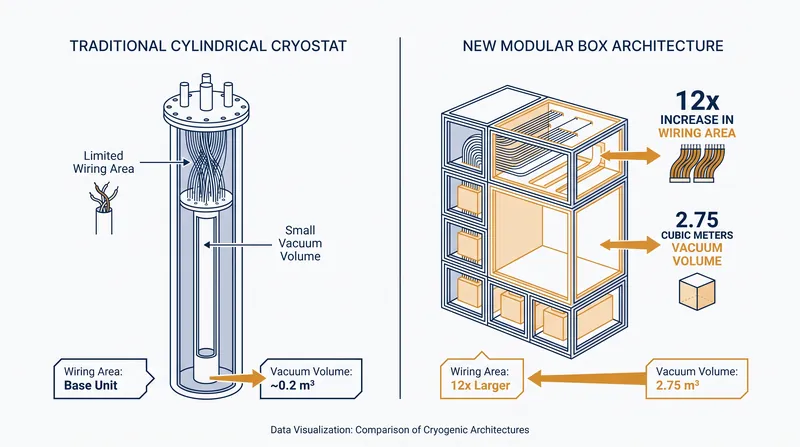

The shift from a cylinder to a box fundamentally changes the geometry of quantum scaling. Each new modular cell provides approximately 0.53 square meters of usable wiring area and 2.75 cubic meters of vacuum chamber volume. This represents roughly 12 times as much wiring space as IBM's existing Quantum System One enclosures. By placing these flat-sided modules flush against one another, engineers can expand both cooling capacity and wiring volume simply by adding more units to the line.[2][4]

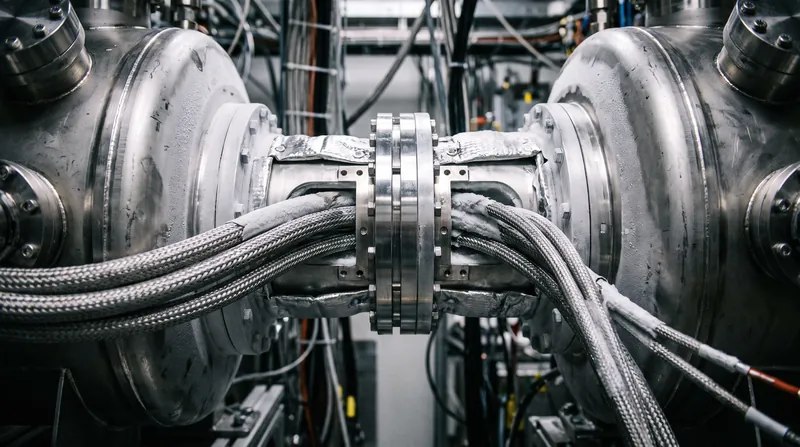

Connecting two ultra-cold environments without introducing heat is a massive thermodynamic challenge. Any thermal leak between the modules can instantly destroy the fragile quantum states of the processors inside. IBM achieved this by linking the vacuum chambers with short, heavily shielded interconnect tunnels. During the recent demonstration at their facility in Poughkeepsie, New York, the combined system—standing over eight feet tall and eight feet wide—was cooled to the temperature of liquid helium in under five days, before dropping to its final operating temperature of 15 millikelvin.[3][5]

While the expanded space solves the wiring problem, the ultimate goal is to make multiple quantum chips behave as a single, unified machine. To achieve this, the modular architecture is designed to house IBM's "L-couplers." These long-range quantum interconnects act as bridges between discrete processors, allowing quantum information to flow seamlessly across the physical gap between adjacent cryogenic cells.[4][5]

The recent milestone involved cooling the connected cells without active processors inside, serving as a critical validation of the thermodynamic engineering. The next phase of testing will introduce live quantum hardware. Later in 2026, IBM plans to install 120-qubit Nighthawk processors into each of the connected modules, marking the first time the architecture will operate with live qubits exchanging data across the cryogenic divide.[2][3]

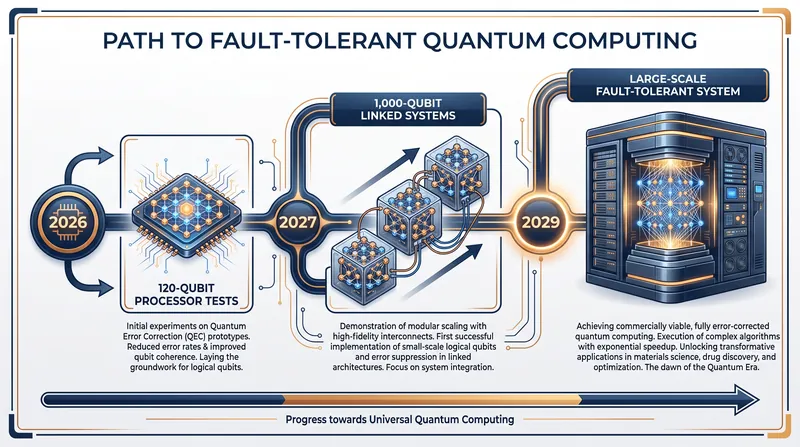

This modular approach is the physical foundation for IBM's long-term roadmap. By 2027, the company intends to use L-couplers to link multiple processors into a system with at least 1,000 programmable qubits. This infrastructure is ultimately building toward IBM Quantum Starling, a system targeted for 2029 that IBM expects to be the world's first large-scale, fault-tolerant quantum computer.[5]

Despite the breakthrough in cryogenic engineering, significant uncertainties remain on the path to fault tolerance. Skeptics and industry analysts point out that while modularity solves the spatial constraints of wiring, it introduces new complexities. The sheer volume of cables, room-temperature control electronics, and processor-to-processor links must all perform with near-perfect reliability. If the quantum links between modules suffer from high signal loss or decoherence, the system will fail to operate as a unified computer.[1]

Competitors in the superconducting quantum space are pursuing alternative strategies to address the same scaling constraints. Rather than building massive, linked refrigeration networks, companies like Google have focused heavily on flip-chip packaging—bonding a separate wiring-carrier chip directly to the quantum processor to move signal routing off the qubit layer. Others, like Rigetti, are prioritizing chiplet-based scaling to maximize qubit density within existing thermal envelopes.[2]

The divergence in strategies highlights the maturing landscape of quantum hardware. The field is transitioning from an era of bespoke laboratory experiments into one defined by systems engineering and data-center architecture. Whether through modular cryogenic networks or advanced chip-level packaging, the race to build a useful quantum computer is now as much about plumbing and refrigeration as it is about quantum physics.[1][4]

For the broader technology ecosystem, IBM's demonstration proves that the physical infrastructure required for next-generation quantum computing can be built and operated at scale. By proving that ultra-cold environments can be modularized and linked, engineers have cleared a critical roadblock, ensuring that when quantum processors are ready to scale to thousands of qubits, the refrigerators will be ready to hold them.[3]
