Huawei Unveils 'Tau Scaling' Architecture, Pivoting Chip Design Away from Moore's Law

The assumption has long been that without access to ASML's extreme ultraviolet (EUV) lithography machines, China's semiconductor industry would hit a hard physical ceiling and stagnate. The reality, unveiled this week in Shanghai, is that Huawei is not trying to break through that ceiling—it is building a completely different house. Faced with strict US export controls that block the importation of the world's most advanced chipmaking equipment, the Chinese technology giant has been forced to fundamentally rethink how to raise computing performance. Instead of relying on the traditional method of shrinking transistors to atomic scales, Huawei is pivoting to a new architectural paradigm that prioritizes signal speed and vertical integration over geometric miniaturization.[2]

At the 2026 IEEE International Symposium on Circuits and Systems (ISCAS), He Tingbo, president of Huawei's semiconductor business, formally introduced what the company calls the "Tau (τ) Scaling Law." For more than five decades, the global semiconductor industry has been guided by Moore's Law, which dictates doubling transistor density by shrinking their physical size on a flat silicon plane. Tau Scaling throws out that playbook. Instead, it pivots the industry's primary optimization target to time—specifically, compressing the signal propagation delay across individual devices, circuits, and entire computing systems. The framework treats time delay (represented by the Greek letter tau) as the unified currency for performance, bypassing the physical limits of foreign lithography restrictions.[1][3]

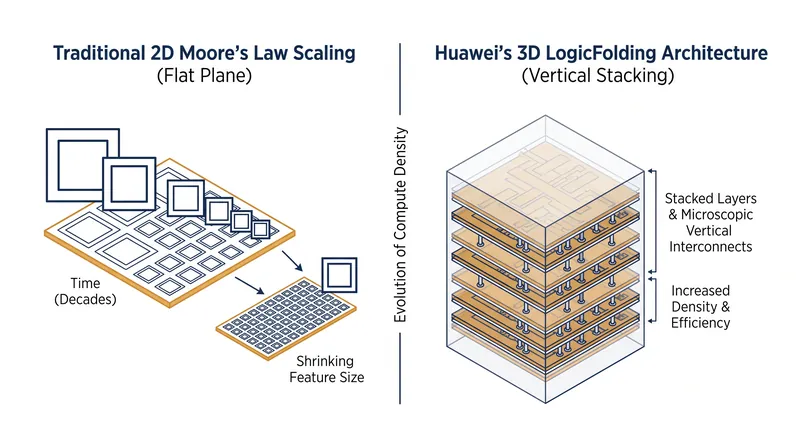

The physical manifestation of this theoretical pivot is a new architectural framework that Huawei has branded "LogicFolding." Rather than laying out transistors on a traditional two-dimensional grid where signals must travel longer lateral distances, LogicFolding stacks active circuitry vertically into a dense, three-dimensional structure. By folding the logic gates and memory components on top of one another, the architecture drastically shortens the critical-path wiring required to connect them. This vertical integration reduces the resistive and capacitive loads that naturally slow down electronic signals, allowing the chip to operate faster and more efficiently without needing smaller individual transistors.[4]

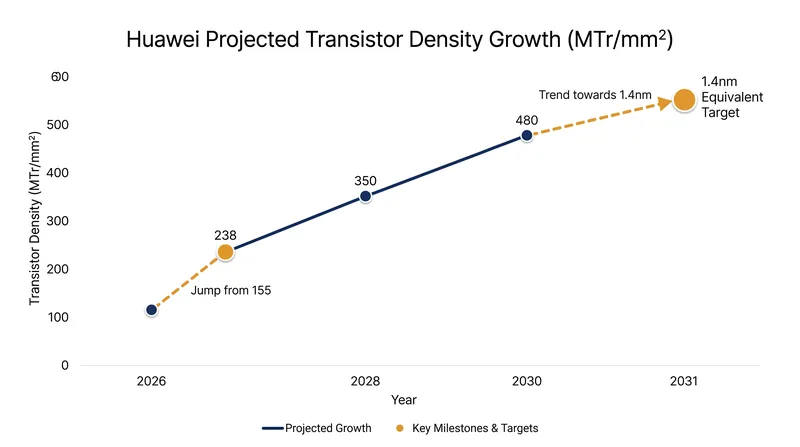

The performance claims attached to this new architecture are highly ambitious. Huawei asserts that by utilizing the Tau Scaling Law and LogicFolding, its high-end chips will reach a transistor density equivalent to a 1.4-nanometer process node by the year 2031. If achieved, this milestone would effectively close the performance gap with Western foundry leaders like TSMC and Intel, who are currently targeting their own 1.4-nanometer mass production around the same timeframe. Crucially, Huawei plans to reach this equivalence without ever requiring the sub-atomic physical engraving capabilities that Washington has strictly embargoed.[1][2][5]

However, the marketing language surrounding these density claims requires careful parsing. Huawei has stated that its upcoming Kirin 2026 smartphone chip achieves a staggering density of 238 million transistors per square millimeter. As Western industry analysts quickly pointed out, this framing is slightly disingenuous. Because the silicon dies are stacked vertically back-to-back, the density is effectively being measured per cubic millimeter rather than across a traditional 2D area. The individual transistors themselves are not necessarily any smaller or denser on their respective layers; they are simply stacked higher, creating an illusion of geometric parity with TSMC's 3-nanometer nodes.[4]

Despite the marketing spin on density, the technical linchpin making LogicFolding possible is a genuine engineering achievement: hybrid bonding. To make 3D stacking work without bottlenecking the chip's performance or generating excessive heat, the vertical connections between the stacked layers must be microscopic and incredibly precise. During her keynote, He Tingbo asserted that Huawei has achieved a highly aggressive hybrid bonding pitch of 2 micrometers (µm) or below in its current production lines. Reducing the pitch to this microscopic level is crucial for enabling the vertical bonds to become part of the chip's critical timing path.[6]

If that 2-micrometer bonding pitch holds up at commercial scale with high manufacturing yields, it represents a significant technical assertion that completely reframes the global packaging competition. It provides Huawei and its foundry partner SMIC with a credible, proven way to squeeze bleeding-edge computing performance out of older, legally available deep ultraviolet (DUV) manufacturing equipment. By mastering advanced 3D packaging, the Chinese semiconductor ecosystem can bypass the need for restricted EUV tools, turning a severe supply chain vulnerability into a catalyst for architectural innovation.[5][6]

Huawei was quick to emphasize that the Tau Scaling framework is not merely a theoretical research paper or a distant roadmap. According to the company's official statements, the methodology has been quietly refined over the past six years. During that time, Huawei claims to have designed and mass-produced 381 distinct chips using early variations of this time-domain optimization strategy. These components have reportedly been deployed across a wide range of industries, powering everything from consumer smartphones and telecommunications infrastructure to massive AI data centers and SuperPoD clusters.[1][3]

The first major consumer-facing proof point for this new era of chip design will arrive this fall with the launch of the Kirin 2026 system-on-chip. The processor is expected to debut in Huawei's next flagship smartphone lineup—likely the Mate 90 series—marking the first commercial deployment of the fully realized LogicFolding architecture. This launch will serve as a critical real-world test of the Tau Scaling Law, allowing independent researchers to benchmark the chip's thermal efficiency, battery draw, and processing speed against the best silicon Apple and Qualcomm have to offer.[3][4]

Ultimately, the Tau Scaling Law is a sweeping technological strategy born of strict geopolitical constraint. By formalizing a development roadmap based on latency reduction and vertical integration rather than atomic-scale lithography, Huawei is attempting to permanently insulate its domestic computing infrastructure from future Western trade embargoes. Whether or not it fully replaces Moore's Law globally, the framework proves that when a company can no longer compete on the industry's dominant metric, it will simply redefine the problem and shift the battleground from geometry to architecture.[2][5]
