World's Largest Chip Packager ASE Raises Quotes by 20%, Signaling a New AI Bottleneck

When you ask an artificial intelligence model a question, you are interacting with billions of microscopic transistors. But the real magic—and the most severe bottleneck—is no longer just printing those transistors onto silicon wafers. It is the incredibly delicate process of gluing them together. If you are waiting for the cost of AI compute to plummet as the technology scales, the physical assembly of these chips is the new roadblock you need to understand. The software world likes to talk about AI in terms of infinite scalability and trillions of parameters, but the hardware reality is much more grounded. It is a world of physical constraints, specialized chemicals, and microscopic wires that must align perfectly.[2]

That physical reality is now dictating market economics. ASE Technology, the world's largest outsourced semiconductor assembly and test (OSAT) provider, has reportedly raised its quotes for advanced packaging by more than 20 percent. This price hike, driven by an insatiable demand for AI hardware, signals a fundamental shift in the semiconductor industry. Integrators sourcing advanced packaging for next-generation AI accelerators are facing a structural cost step-up that cannot be easily absorbed or quickly re-sourced.

For decades, OSAT companies were seen as the low-margin "backend" of the chip world. The glory, the headlines, and the massive profit margins went to the designers like Nvidia and the foundries like TSMC. The packagers simply put the finished silicon into a plastic casing. Now, the backend is wielding unprecedented pricing power. As the complexity of connecting multiple chips has skyrocketed, the packagers have transformed from commoditized assembly lines into the critical enablers of artificial intelligence performance.[2]

To understand why packaging is suddenly so expensive and constrained, you have to look at how processor architectures have changed. Historically, processors were "monolithic"—meaning the entire circuit was printed on a single, continuous piece of silicon. But as chips grew larger to accommodate more computing power, they hit the physical limits of manufacturing. In a monolithic design, a single microscopic flaw on the silicon wafer can ruin an entire massive, expensive chip, destroying yield rates and driving up costs.

The industry's solution to this yield problem was the "chiplet" architecture. Instead of manufacturing one giant chip, designers now print several smaller, specialized chips—some dedicated to logic processing, some to memory, and some to input/output functions. Because these individual pieces are smaller, they yield much better during the manufacturing process. The catch is that these separate chiplets must be connected so seamlessly that they act as a single, unified brain.

That connection process is what the industry calls "advanced packaging." These separate chiplets must be mounted onto a silicon interposer—a foundational layer embedded with microscopic wires that allow terabytes of data to flow between the components every second. Techniques like TSMC's CoWoS (Chip-on-Wafer-on-Substrate) and ASE's FoCoS (Fan-Out Chip on Substrate) are the physical bridges that make modern AI accelerators possible. Without this packaging, the most advanced compute chip remains a collection of fragile, disconnected parts.

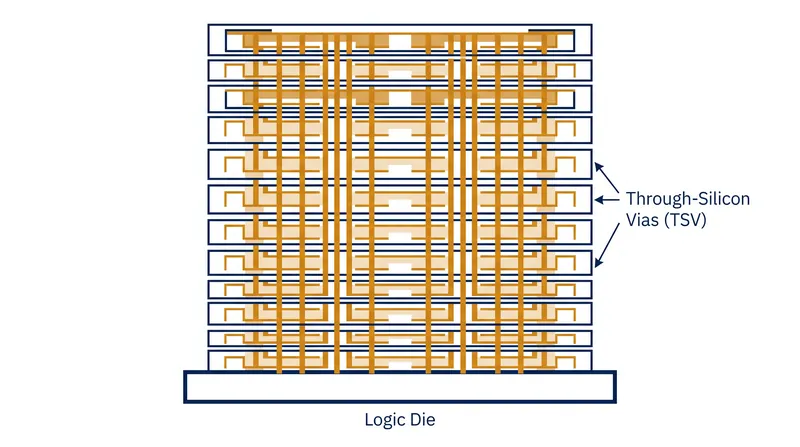

The most critical and delicate component being packaged today is High Bandwidth Memory (HBM). AI accelerators require massive amounts of data instantly to train and run large language models. HBM achieves this unprecedented data transfer rate by stacking memory chips vertically, like a microscopic skyscraper, and running vertical wires—known as Through-Silicon Vias—straight through the stack. This 3D stacking is a marvel of modern engineering, but it is notoriously difficult to assemble at scale.[1]

Assembling a modern AI accelerator involves placing the logic chiplets and multiple HBM stacks onto the interposer with extreme precision. The yield problem has simply moved downstream. If a single microscopic connection fails during the bonding process, or if one HBM stack is slightly misaligned, the entire assembled package—which can be worth thousands of dollars—is ruined. The technical complexity of ensuring perfect yields on these massive, multi-chip packages is what gives companies like ASE their newfound leverage.[2]

This extreme complexity means advanced packaging capacity cannot be spun up overnight. The specialized bonding equipment has long lead times, and the clean rooms require massive capital investments. Even TSMC's massive internal packaging capacity cannot keep up with the surging demand from the world's largest AI chip designers. The resulting supply-demand gap has left the industry scrambling for capacity, allowing OSAT providers to dictate terms and raise prices aggressively.

To break the bottleneck, ASE is investing heavily, but it is a long-term play. The company has raised its 2026 capital expenditure budget to a staggering $8.5 billion and is planning 15 new or expanded sites globally. This capacity build-out is explicitly not intended just for the next two years; ASE is planning for demand projected out to 2030. It is an expensive wager that the complexity of AI hardware will only continue to grow, cementing packaging as a permanent high-value sector.

The price hike is not solely a product of overwhelming demand; it is also a reaction to rising raw material costs. A recent supply shock in tungsten hexafluoride (WF6)—a critical chemical used in the deposition process for these advanced interconnects—has tightened the market further. With major production lines shutting down, the resulting supply gap for high-purity semiconductor-grade chemicals has introduced new yield variability and driven up input costs for packagers across the board.

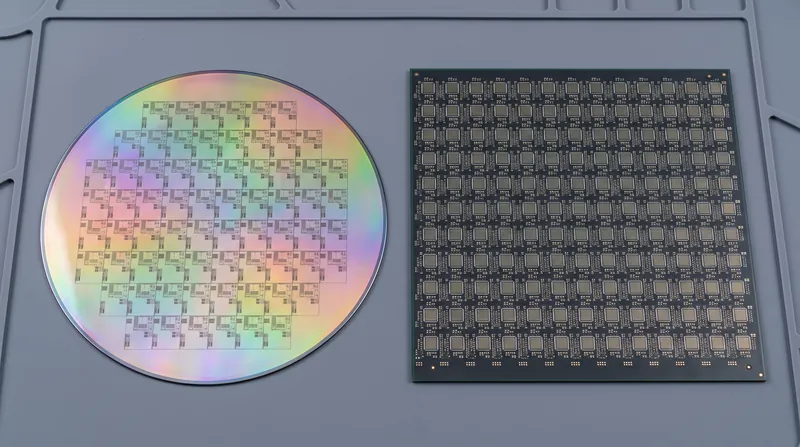

To improve efficiency and offset some of these costs, ASE is shifting how it physically handles the packaging process. Traditionally, packaging was done on round silicon wafers. But arranging large, square multi-chip packages on a round wafer leaves significant wasted space at the edges. ASE is increasingly moving toward "panel-level packaging" using large rectangular substrates. This allows more chips to be packaged simultaneously per process run, reducing edge waste and improving material utilization.[2]

While tech executives frequently announce new AI models and promise exponential leaps in capability, those promises are entirely dependent on the physical supply chain's ability to deliver. The marketing language frames AI as a purely software-driven revolution, but the reality is that the rollout of artificial intelligence is currently gated by the availability of clean rooms, specialized resins, and automated bonding machines in Taiwan and Southeast Asia.[2]

ASE's 20 percent price increase is a clear signal that the AI supply chain is maturing and rebalancing its economics. The primary bottleneck has officially moved from the foundry printing the transistors to the facility packaging them. For the foreseeable future, the speed and cost of the AI revolution will be dictated not just by how small we can make transistors, but by how fast and how cheaply we can assemble the pieces.[2]
