The Mechanics of Starship's Re-entry: How the Belly Flop and Heat Shield Enable Reusability

When a spacecraft returns from orbit, it faces a brutal physics problem: it must shed an enormous amount of kinetic energy without incinerating itself. For decades, the solution was to use ablative heat shields that slowly burned away, sacrificing themselves to protect the capsule inside. But SpaceX’s Starship architecture demands rapid, aircraft-like reusability. To achieve that, engineers had to rethink how a 165-foot-tall stainless-steel cylinder survives a plunge through the atmosphere at hypersonic speeds.[2][5]

The validation of this new approach culminated in the summer of 2026, when Starship Flight 13 achieved what SpaceX called its "softest splashdown" ever in the Indian Ocean. The upper stage successfully deployed a payload of next-generation Starlink satellites, reignited a Raptor engine in space, and then survived the searing heat of re-entry intact. The vehicle even remained afloat after splashing down, providing engineers with unprecedented post-flight data on the thermal protection system.[1][3]

The secret to Starship's survival lies in a two-part strategy: a massive ceramic heat shield and a radical aerodynamic profile known as the "belly flop." Unlike the Falcon 9 booster, which re-enters the atmosphere engine-first from a relatively slow suborbital trajectory, Starship returns from orbital velocities exceeding 17,000 miles per hour. At those speeds, the atmosphere compresses violently against the vehicle, generating a shockwave of superheated plasma that can reach temperatures above 2,500 degrees Fahrenheit.[2][5]

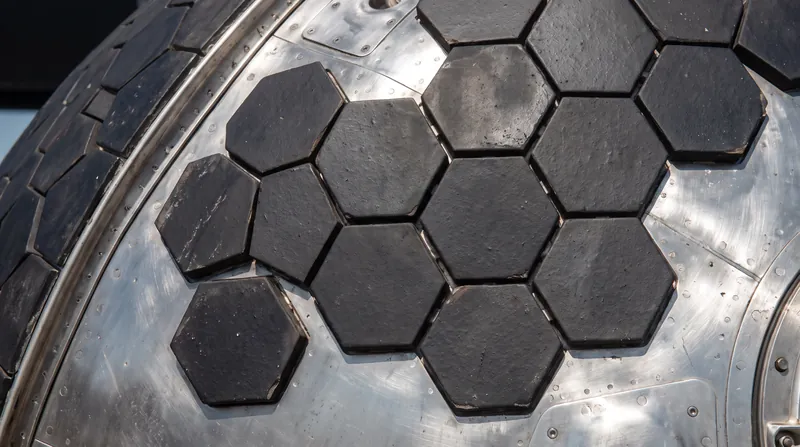

To protect the stainless-steel hull, the windward side of Starship is covered in roughly 18,000 hexagonal ceramic tiles. These tiles are designed to absorb and radiate extreme heat while keeping the underlying structure cool. The hexagonal shape is highly intentional: it minimizes continuous straight-line gaps where superheated plasma could channel through, and it allows the tiles to expand and contract evenly during the massive thermal swings of a spaceflight mission.[4][5]

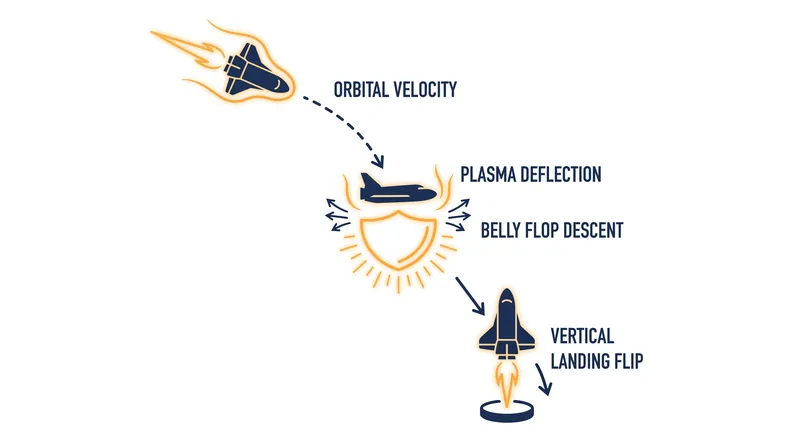

However, the heat shield alone is not enough to slow the massive vehicle down. This is where the belly flop maneuver becomes essential. By rotating horizontally and presenting its entire broadside to the oncoming airflow, Starship maximizes its aerodynamic drag. This orientation acts like a giant airbrake, allowing the atmosphere to do the heavy lifting of deceleration for free, rather than requiring the spacecraft to carry hundreds of tons of extra propellant for a braking burn.[2][5]

During this horizontal freefall, Starship is not simply dropping; it is actively flying. The vehicle uses four large aerodynamic flaps—two forward and two aft—to control its pitch, yaw, and roll. By adjusting these flaps independently, the flight computers steer the spacecraft through the plasma shroud, managing the thermal load and guiding it precisely toward its intended landing zone. It is a delicate balancing act of hypersonic aerodynamics, akin to a skydiver adjusting their limbs to control their descent.[2][4]

The final, and perhaps most dramatic, phase of the re-entry profile is the landing flip. Just seconds before reaching the surface, Starship reignites a subset of its Raptor engines and swings its aft flaps to rapidly pivot from a horizontal belly flop to a vertical orientation. The engines then throttle up to perform a final deceleration burn, bringing the towering vehicle to a controlled, soft landing.[2][3]

The successful execution of this sequence during recent flight tests marks a turning point in aerospace engineering. While early prototypes famously exploded during the complex flip maneuver, the iterative testing campaign has steadily refined the flight software, engine reliability, and heat shield attachment methods. The ability to reliably return a fully reusable upper stage from orbit is the linchpin for SpaceX's broader ambitions, from deploying massive satellite constellations to fulfilling NASA's Artemis lunar landing contracts.[1][4]
