The Mechanics of Ion Propulsion: Comparing Gridded Ion, Hall-Effect, and Pulsed Plasma Thrusters for Spacecraft Maneuvering

The fundamental tension in spacecraft design is the tyranny of the rocket equation: to move faster, a ship needs more propellant, which adds mass, which in turn requires even more propellant to move. For decades, mission planners resolved this by building larger chemical rockets, accepting that the vast majority of a vehicle's mass would be fuel. But as the aerospace industry shifts toward sustained deep space operations and densely populated low-Earth orbit (LEO) constellations, that brute-force paradigm has broken down. The resolution lies in electric propulsion—a system that decouples thrust from chemical combustion, using electromagnetic fields to accelerate ionized gas to extreme velocities.[11]

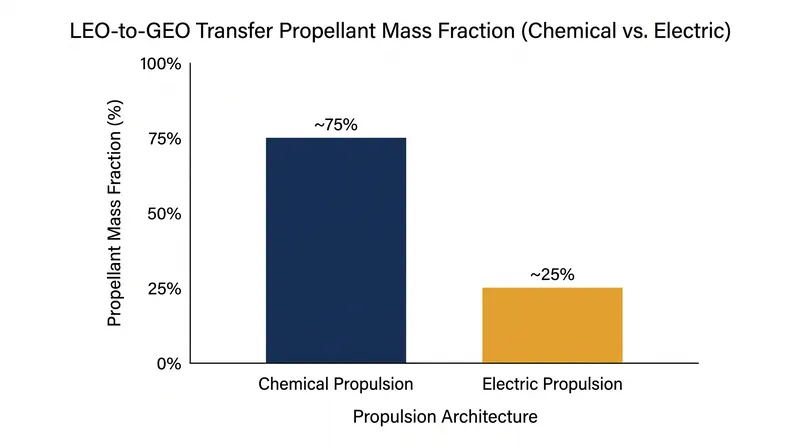

Electric propulsion does not replace chemical rockets for escaping Earth's gravity well; it lacks the raw thrust required to lift heavy payloads from the surface. Instead, it dominates the vacuum of space, where continuous, highly efficient acceleration over months or years yields higher terminal velocities than short, violent chemical burns. By drastically reducing the mass of propellant required, electric thrusters free up capacity for scientific instruments, commercial payloads, or additional shielding.[9][10]

However, "electric propulsion" is not a monolith. It is a broad category encompassing several distinct architectures, each engineered to solve a specific set of orbital mechanics problems. The three most prominent systems—gridded ion thrusters, Hall-effect thrusters, and pulsed plasma thrusters (PPTs)—represent different engineering compromises between specific impulse (fuel efficiency), thrust density, system complexity, and power requirements.[1][2]

To understand these trade-offs, one must first examine the gridded ion thruster, the oldest and most fuel-efficient of the three. In this architecture, a neutral gas—typically xenon—is injected into a chamber where it is bombarded by electrons to create a plasma. This plasma drifts toward a set of electrically charged grids at the rear of the thruster. The voltage difference between these grids extracts the positive ions and accelerates them out of the engine at exhaust velocities exceeding 40 kilometers per second.[7]

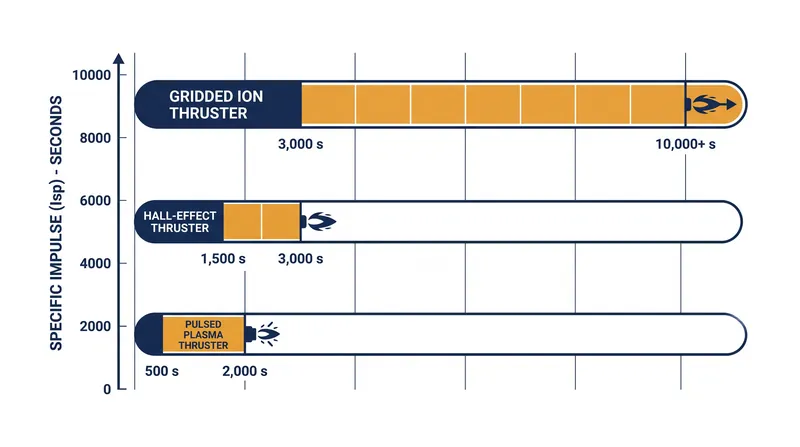

The primary advantage of the gridded ion thruster is its extraordinary specific impulse (Isp), often exceeding 3,000 seconds and sometimes reaching past 10,000 seconds in advanced designs. This makes it the undisputed choice for deep space missions, such as NASA's Dawn probe to the asteroid belt, where maximizing total velocity change (delta-v) from a limited fuel supply is the paramount concern.[3][9]

Yet, this efficiency comes at a cost. Gridded ion thrusters have low thrust density; they require a large physical footprint to generate a relatively small amount of force. Furthermore, the grids themselves are subject to erosion from ion impacts over time, limiting the engine's operational lifespan. The high voltage requirements also necessitate complex, heavy power processing units (PPUs), making them difficult to scale down for smaller spacecraft.[7]

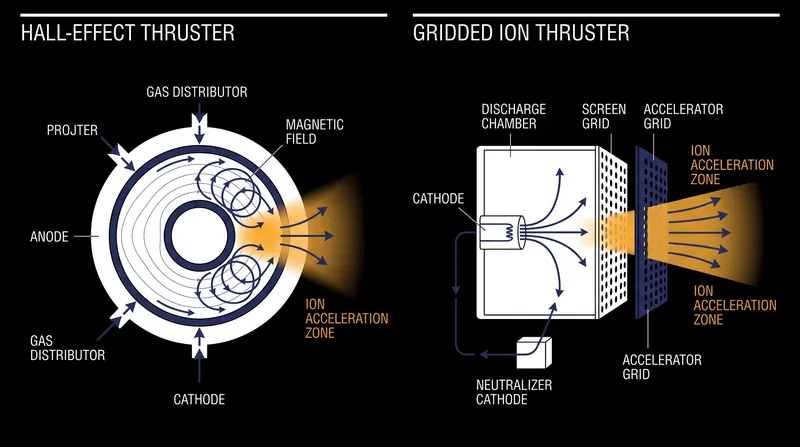

This is where the Hall-effect thruster enters the equation, serving as the workhorse of the modern commercial space economy. Instead of using physical grids to accelerate ions, a Hall-effect thruster utilizes a radial magnetic field to trap electrons in a circular path—the Hall current—at the open end of the discharge channel. When neutral propellant is injected, it collides with these trapped electrons, ionizing the gas. The resulting ions are then accelerated out of the channel by the electric field established between the anode and the trapped electron cloud.[6][8]

By eliminating the physical grids, Hall-effect thrusters bypass the primary erosion mechanism that limits gridded ion engines, allowing for higher thrust densities and longer operational lifespans at moderate power levels. Their specific impulse typically ranges from 1,500 to 3,000 seconds—lower than gridded systems, but still an order of magnitude better than chemical rockets.[8]

This specific balance of moderate specific impulse and higher thrust-to-power ratio makes Hall-effect thrusters the optimal choice for LEO satellite constellations. They provide enough thrust to quickly raise a satellite's orbit after launch and perform rapid collision avoidance maneuvers, while remaining efficient enough to keep the satellite's mass low and operational life long.[5][6]

While gridded ion and Hall-effect thrusters dominate large satellites and deep space probes, the proliferation of CubeSats and nanosatellites has driven the need for a third architecture: the pulsed plasma thruster (PPT). Unlike the other two, which rely on pressurized gaseous propellants like xenon or krypton, PPTs utilize a solid propellant, most commonly a bar of Teflon (PTFE).[4]

In a PPT, an electrical arc is struck across the exposed surface of the Teflon, instantly ablating and ionizing a microscopic layer of the material. The resulting plasma is then accelerated outward by the electromagnetic field generated by the arc itself. Because the thruster operates in discrete pulses rather than a continuous stream, its power consumption can be scaled down to fractions of a watt simply by reducing the pulse frequency.[4]

The reliance on solid propellant gives PPTs a unique logistical advantage: they require no pressurized tanks, valves, or complex feed systems. This makes them inherently safe, highly reliable, and easily miniaturized for spacecraft where internal volume is measured in cubic centimeters. Their thrust is measured in micro-newtons, rendering them useless for rapid maneuvers but ideal for the precise attitude control and gradual orbit maintenance required by small satellites.[1][4]

The choice between these three architectures ultimately dictates the downstream capabilities of the spacecraft. A mission utilizing a gridded ion thruster commits to a long-duration trajectory with a heavy power processing unit, prioritizing ultimate destination reach over maneuverability. A Hall-effect architecture signals a need for operational agility in crowded orbits, accepting a slight penalty in total fuel efficiency. A PPT architecture accepts minimal thrust in exchange for the ultimate reduction in system complexity and volume.[2][11]

Looking forward, the aerospace industry is not merely refining these existing designs, but attempting to hybridize their benefits. Research into magnetic shielding for Hall-effect thrusters aims to push their lifespans closer to those of gridded systems, while alternative propellants like iodine and argon are being tested to reduce the reliance on expensive, scarce xenon gas. As the orbital infrastructure expands, the precise application of these electromagnetic mechanics will remain the pacing factor for how far and how efficiently humanity can operate in the vacuum.[1][10]
