TSMC Validates 1.6nm 'A16' Process with Backside Power Delivery, Targeting Q4 Mass Production

The physical limit of how much computing power can fit into a server rack or a smartphone is dictated by microscopic traffic jams. When power and data fight for the same microscopic highways on the surface of a silicon wafer, chips run hot, signals degrade, and performance hits a ceiling. For decades, the semiconductor industry solved this by simply drawing smaller lines. But as those lines approach the width of a few atoms, the old playbook has stopped working.

Enter TSMC's latest architectural pivot. The Taiwanese foundry giant has officially completed development and validation of its 1.6-nanometer class "A16" process, moving the technology toward mass production in the fourth quarter of 2026.[1][3]

TSMC calls it the "Angstrom Era," but look closely at the blueprints and you will find that A16 is less about shrinking transistors and more about urban planning. The core innovation is a technology called Backside Power Delivery Network (BSPDN), which TSMC brands as "Super Power Rail."[2][6][7]

To understand why this matters, you have to look at how traditional chips are built. Historically, both the power delivery interconnects and the signal routing interconnects have been etched onto the front side of the silicon wafer. As transistors have shrunk below the 2-nanometer threshold, this shared space has become severely congested.

This congestion causes a phenomenon known as "IR drop"—a loss of voltage as electricity travels through increasingly narrow and crowded copper wires. When a transistor does not receive its full intended voltage, it cannot switch as fast, effectively bottlenecking the entire processor.[7]

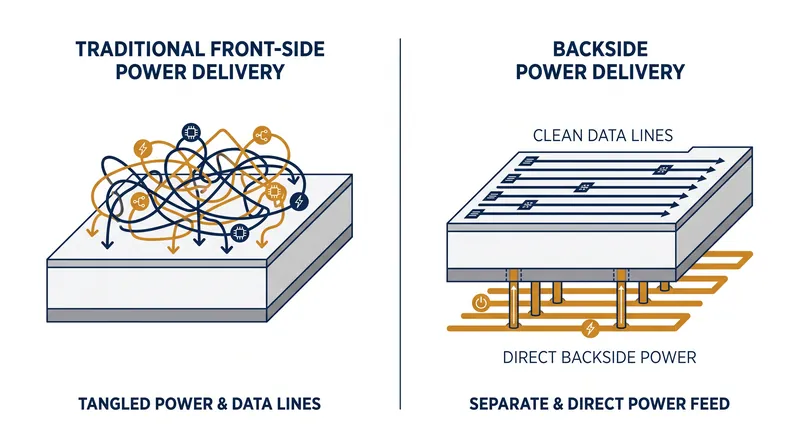

A16 solves this by completely separating the two networks. It moves the power distribution entirely to the back of the chip. Dedicated vertical backside contacts feed electricity directly into the source and drain of each transistor from below, leaving the entire front side of the wafer free for data signals.[2][6]

The performance gains from this reorganization are substantial. Compared to TSMC's enhanced 2-nanometer process (N2P), the A16 node delivers an 8 to 10 percent increase in computing speed at the same voltage. Alternatively, chip designers can opt for a 15 to 20 percent reduction in power consumption while maintaining the same speed.[2][4][7]

Crucially, this is achieved without a massive physical shrink of the logic gates themselves. Industry sources note that TSMC made only minimal adjustments to the front-side gate structure and cell dimensions compared to the N2P node. Despite this, the sheer efficiency of moving the power routing to the back yields an 8 to 10 percent increase in overall chip density.[2][7]

While the A16 process is validated today, the "Q4 2026" mass production target means that consumer devices and enterprise server racks will not see these chips until 2027 or 2028. The first wave of A16 silicon is almost certainly destined for the data center, not the smartphone in your pocket.[1][3]

The reason is economics and necessity. High-end AI accelerators are currently drawing immense amounts of power—next-generation designs are expected to exceed 2,000 watts per package. Dense power delivery and complex signal routing are the exact bottlenecks choking artificial intelligence hardware, making A16 an ideal, if expensive, solution.[5]

Nvidia is reportedly already prototyping its next-generation "Feynman" GPU microarchitecture on the A16 node. Supply chain reports indicate that the AI hardware leader is bypassing TSMC's 2-nanometer family entirely for its highest-end chips, aiming for mass production in the second half of 2028 to handle multi-kilowatt designs capable of processing dozens of PetaFLOPS.[5]

TSMC is not the first to the backside power party. Intel actually beat the Taiwanese foundry to this specific architectural concept with its "PowerVia" technology, which is already powering its Panther Lake processors. However, TSMC's implementation in A16 integrates the concept into a denser, angstrom-class node that maintains compatibility with existing nanosheet transistor designs.[6]

Meanwhile, TSMC's primary pure-play foundry rival is losing ground. Samsung has reportedly delayed its 1.4-nanometer mass production target from 2027 to 2029. With A16 entering production late this year and TSMC's own 1.4-nanometer (A14) node slated for 2028, the technological gap between the two giants is widening.[2][3]

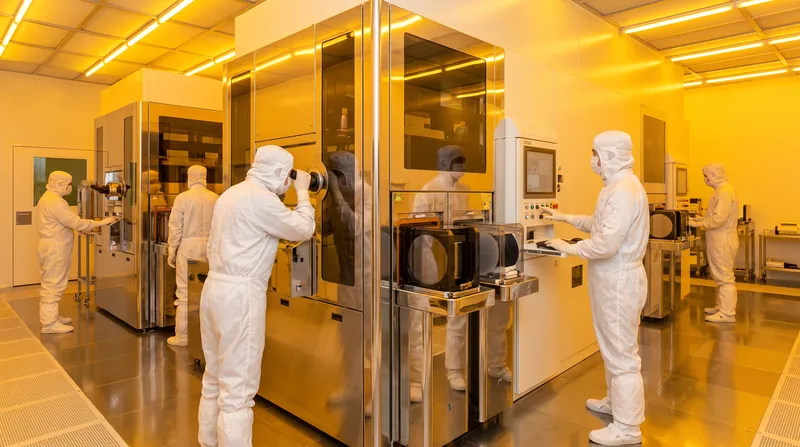

The manufacturing challenge ahead for TSMC is immense. Building a power network on the back of a wafer requires thinning the silicon to extreme levels, flipping it over, and aligning microscopic vertical contacts with perfect precision. The mechanical stress and thermal complexities of this process are unprecedented.

Yield rates during the initial Q4 ramp-up will be the true test of A16's viability. If TSMC can produce these chips reliably and at scale, it will cement its dominance in the AI hardware supply chain for the rest of the decade.

Ultimately, the validation of A16 represents a fundamental shift in how the technology industry advances. The era of easy scaling is over. From here on, making computers faster requires tearing up the foundational blueprints of the microchip and building them back up from both sides.
