The New Mobile Reality: A Guide to the 2nm Chip Architecture Standard, 6G Connectivity Trials, and the 2027 Device Overhaul

The mobile technology sector is approaching a hard architectural reset. After years of iterative updates to smartphone cameras, display refresh rates, and chassis materials, the industry is aligning its global supply chains for a massive, foundational hardware overhaul in 2027. This impending transition is not driven by a single component upgrade, but by the simultaneous maturation of two distinct, multi-billion-dollar engineering roadmaps: the semiconductor industry's leap to 2-nanometer (2nm) chip fabrication, and the telecommunications sector's formal initiation of 6G network standards. For consumers, this convergence will establish a completely new baseline for what a mobile device can do.[6]

At the core of this impending overhaul is the 2nm processor. For the past several years, flagship devices have relied on 3nm and 4nm chips built using FinFET transistor architecture, a design that has served the industry well for over a decade. However, as transistors shrink to the atomic scale, FinFET designs suffer from severe power leakage, generating excess heat and draining batteries. To cross the 2nm threshold and continue scaling computational power, the world's leading foundries—TSMC, Samsung, and Intel—are transitioning to an entirely new physical structure known as Gate-All-Around (GAA) field-effect transistors.[1]

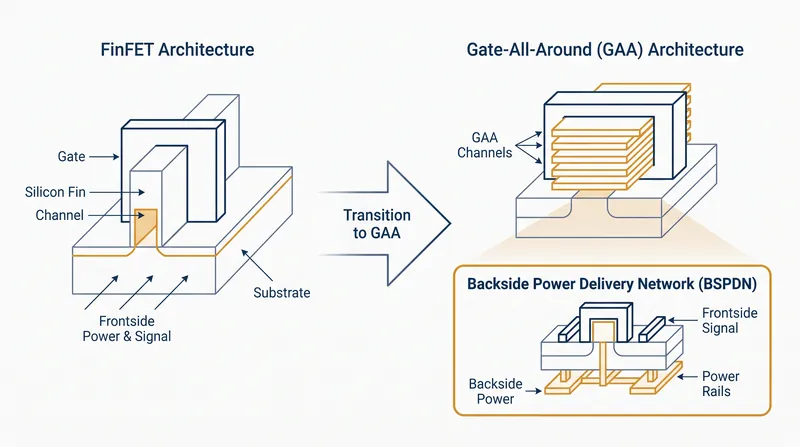

GAA architecture completely surrounds the silicon channel with the gate material on all four sides, providing absolute control over the electrical current and virtually eliminating power leakage. When combined with Backside Power Delivery Networks (BSPDN)—a revolutionary manufacturing technique that routes power lines on the back of the silicon wafer to reduce signal interference on the front—the 2nm node delivers a generational leap in efficiency. Compared to current 3nm processes, 2nm chips offer a 10 to 15 percent performance gain at the exact same power draw, or a massive 25 to 30 percent reduction in power consumption while maintaining the same processing speed.[1]

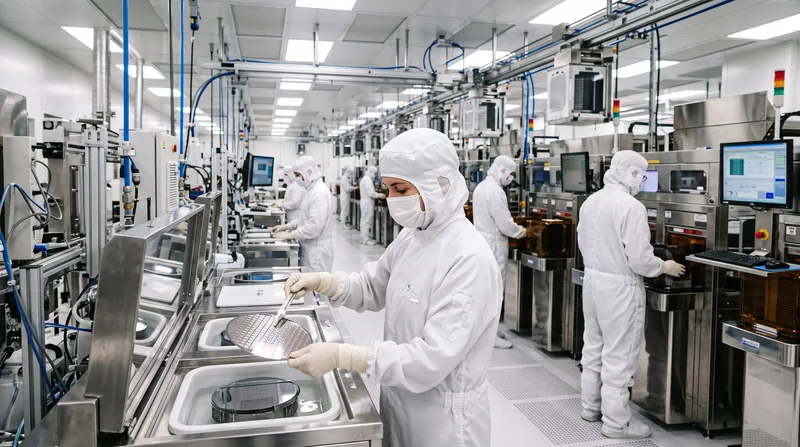

The race to manufacture these advanced chips at scale is fiercely competitive, with billions of dollars in capital expenditure on the line. TSMC, the dominant player in the global foundry market, is rapidly ramping up its N2 process for volume production, with enhanced variants like N2X and A14 scheduled for deployment in 2027 and 2028. Samsung is aggressively pushing its SF2 nodes, aiming to power its own Galaxy devices and reclaim market share lost in previous generations. Intel, meanwhile, has accelerated its 18A process, integrating GAA and backside power delivery earlier than its rivals in a bid to attract external customers back to its foundries.

The first consumer beneficiaries of this silicon arms race will be the flagship smartphones released in early 2027. Supply chain leaks and industry roadmaps indicate that next-generation mobile processors will make the definitive jump to TSMC's 2nm process during this window. These ultra-efficient chips are expected to feature heavily in premium devices like the Samsung Galaxy S27 Ultra and the iPhone 19, providing the immense computational density required to run continuous, on-device artificial intelligence models without instantly draining the battery or overheating the chassis.[6]

But raw processing power is only half of the 2027 equation; the other half is next-generation connectivity. The global telecommunications industry, coordinated by the 3rd Generation Partnership Project (3GPP), is currently in the process of finalizing Release 20. This critical, multi-year standard serves a vital dual purpose for the industry: it completes the final specifications for 5G-Advanced networks, and it officially launches the foundational, normative studies that will define 6G. By setting the rules for how data moves through the air, 3GPP dictates the hardware requirements for every modem built into a smartphone.[3][4]

Release 20 essentially acts as the bridge between cellular generations. While commercial 6G networks are not expected to light up for consumers until 2030, the studies conducted under Release 20—which are scheduled to continue through June 2027—will define the core architecture, security models, and radio requirements for the next decade of wireless communication. This strict timeline gives equipment manufacturers, network operators, and device makers a concrete planning horizon, allowing them to begin building the early hardware prototypes necessary to test these new frequencies and ensure seamless interoperability.[3][4]

The convergence of 2nm silicon mass production and the conclusion of Release 20 is not a coincidence; it is a carefully orchestrated industry alignment. 6G is being designed from the ground up as an 'AI-native' network, moving beyond simple data transmission to a model that integrates ultra-fast connectivity, distributed computing, and environmental sensing. Managing these complex, high-frequency radio bands and AI-driven network protocols requires immense computational power located directly on the device's modem and main processor, rather than relying solely on distant cloud servers to process the data.[2][5]

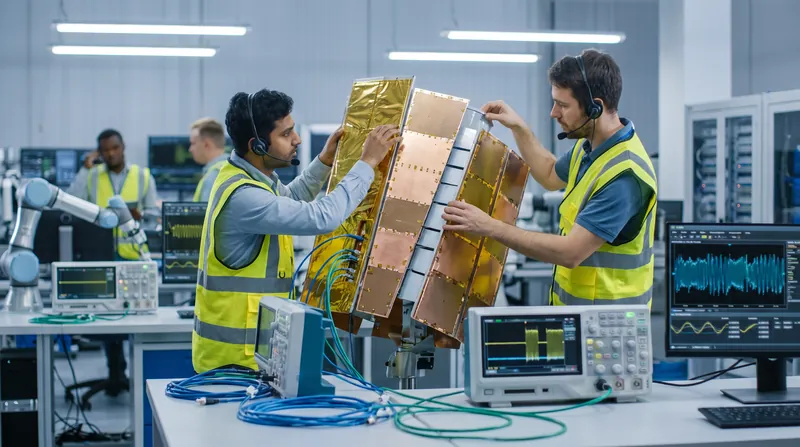

If device manufacturers attempted to run early 6G trial hardware or advanced 5G-Advanced protocols on current 3nm silicon, the thermal output and rapid battery drain would render the smartphones entirely unusable for daily tasks. The 30 percent power efficiency gain provided by 2nm GAA transistors is not a luxury; it is the exact thermal headroom required to make next-generation connectivity viable. The efficiency of the chip is what allows the modem to work harder without melting the phone or forcing the user to recharge multiple times a day.[6]

To support this new baseline of continuous heavy processing, the 2027 device overhaul will also introduce fundamental changes to power storage. Because the efficiency gains of 2nm silicon will be entirely absorbed by AI and networking demands, manufacturers are shifting away from traditional lithium-ion designs toward silicon-carbon battery technology. These high-density cells can pack significantly more milliamp-hours into the exact same physical footprint, pushing flagship battery capacities well beyond the current 5,000 mAh standard without increasing the device's thickness or weight, ensuring the phone survives a full day of 6G testing.[6]

The financial implications of this massive architectural reset will be significant for the end consumer. Extreme ultraviolet (EUV) lithography machines, years of GAA research, and the construction of new fabrication plants cost tens of billions of dollars. Foundries will inevitably pass these massive capital expenditures onto chip designers, who will in turn pass them onto the public. Industry analysts expect the 2027 flagship tier to see notable price increases, potentially establishing new 'Ultra' or 'Pro' device categories that push well past current pricing ceilings to absorb the R&D costs of 2nm silicon and silicon-carbon batteries.[1][6]

Ultimately, the 2027 overhaul represents the definitive end of the smartphone's iterative era. By aligning the mass production of 2nm Gate-All-Around processors with the finalization of 3GPP's 6G foundational studies, the industry is laying the permanent hardware groundwork for the next decade of mobile computing. Devices purchased before this convergence will quickly find themselves on the wrong side of a massive capability divide, lacking the physical architecture required to participate in the AI-native, 6G-connected future that will define the rest of the decade.[3][6]
