GaN vs. SiC: A Guide to the Wide-Bandgap Semiconductor Trade-Offs in EVs, Fast Charging, and the Power Grid

A 6-inch silicon carbide wafer costs upwards of $800—roughly five to ten times the price of traditional silicon. Yet, automotive and industrial manufacturers are buying them as fast as foundries can produce them, absorbing the massive premium without hesitation. The reason is simple: legacy silicon has hit a hard physical wall. As electric vehicles push toward 800-volt architectures and data centers demand unprecedented power density to feed next-generation AI accelerators, standard silicon components trap heat and leak electrons under the strain. The industry has definitively shifted to wide-bandgap (WBG) semiconductors to solve these fundamental bottlenecks and unlock new levels of efficiency.[4]

The two materials leading this transition are gallium nitride (GaN) and silicon carbide (SiC). Both offer a massive leap in performance over silicon, but they are not interchangeable drop-in replacements. Choosing between them is the most consequential hardware decision a power systems engineer will make in 2026. The choice dictates the physical size of the product, the complexity of the cooling system, and the fundamental manufacturing cost. Understanding the intrinsic physics of each material is essential for navigating the trade-offs between switching speed, thermal resilience, and supply chain economics.[6]

The core advantage of both materials lies in their bandgap energy. Standard silicon has a bandgap of 1.1 electron-volts (eV), meaning that at high voltages and temperatures, electrons easily jump the gap and leak, creating massive power losses that manifest as destructive heat. SiC and GaN boast bandgaps of 3.3 eV and 3.4 eV, respectively. This wider gap allows them to block much higher voltages and operate in extreme heat without breaking down, fundamentally raising the ceiling on what power electronics can achieve.[2][3]

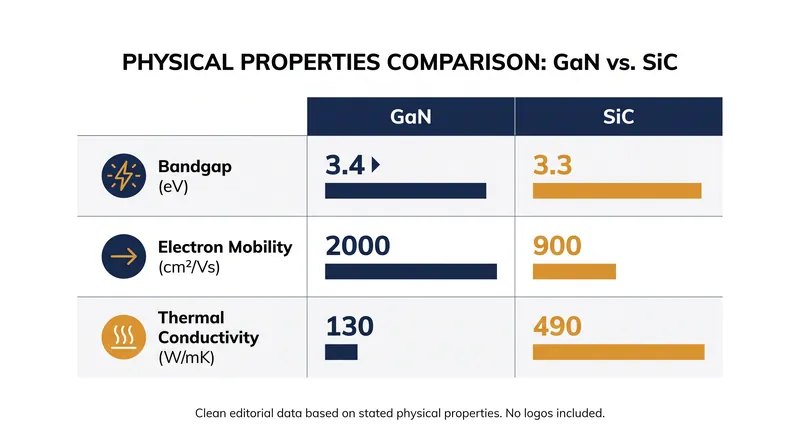

However, the similarities end at the bandgap. GaN is fundamentally built for speed. Its defining feature is a two-dimensional electron gas that yields extraordinary electron mobility—up to 2,000 cm²/V·s, compared to SiC's 900 cm²/V·s. This high mobility allows GaN transistors to switch on and off in the megahertz range with near-zero reverse recovery losses. Because the electrons move with such minimal resistance, the material can process power at blistering speeds without generating the switching losses that would instantly melt a silicon equivalent.[2]

This switching speed translates directly into physical space savings. In a power converter, the size of the magnetic components—such as inductors and transformers—is inversely proportional to the switching frequency. By operating at frequencies well beyond the capabilities of silicon or SiC, GaN allows engineers to shrink passive components by up to 70 percent. This is precisely why GaN dominates the market for compact USB-C fast chargers, dense server power supplies, and lightweight onboard chargers for electric vehicles.[5]

SiC, conversely, is built for thermal brutality and high-voltage blocking. While it cannot match GaN's switching speeds, it conducts heat at 490 W/m·K—more than three times faster than both silicon and GaN. When a component is pushing hundreds of amps in a sealed environment, the ability to move heat away from the junction is the single most critical metric. SiC acts as its own thermal highway, pulling destructive heat away from the active area far more effectively than any competing semiconductor material.[2][5]

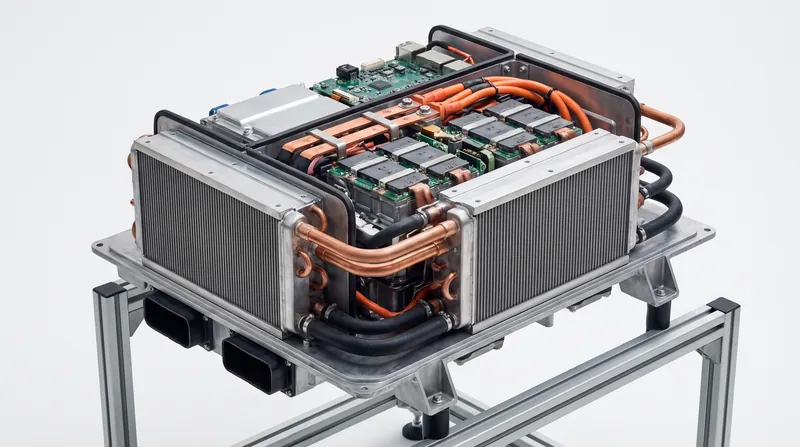

This thermal superiority makes SiC the undisputed standard for electric vehicle traction inverters. In an 800-volt EV architecture, SiC MOSFETs deliver roughly 10 percent better efficiency than legacy silicon, directly translating to increased driving range and faster charging times. GaN's lower thermal conductivity, which hovers around 130 to 170 W/m·K, makes it highly challenging to cool in these multi-kilowatt, sealed environments where forced air is not an option and liquid cooling systems are already taxed to their limits.[5]

This compatibility with legacy silicon fabs is a massive economic advantage, allowing GaN to scale rapidly and leverage the massive existing supply chain, driving down costs and enabling high-volume production without requiring foundries to invest in entirely new, unproven manufacturing ecosystems. GaN can be grown as an epitaxial layer on top of standard silicon substrates (GaN-on-Si) using existing fabrication equipment at temperatures around 1,000 to 1,200 degrees Celsius.[3]

SiC production is vastly more punishing and resource-intensive. Growing a silicon carbide boule requires specialized furnaces operating at an extreme 2,700 degrees Celsius. Furthermore, the material grows at a rate roughly 200 times slower than standard silicon. This extreme energy and time penalty is the primary reason SiC wafers remain so expensive and supply-constrained, forcing engineers to reserve them strictly for applications where their thermal and voltage benefits are absolutely mandatory to the system's survival, rather than deploying them as general-purpose upgrades.[3]

Implementation also requires distinct engineering disciplines, meaning design teams cannot simply swap one material for another. GaN's extreme switching speed makes it highly sensitive to parasitic inductance; even a few millimeters of excess trace length on a printed circuit board can cause severe electromagnetic interference and destructive voltage ringing. SiC, operating at much higher voltages, requires robust gate drivers and careful attention to high-voltage creepage and clearance standards to prevent arcing and catastrophic short circuits across the board.

The commercial dividing line in 2026 is largely drawn at the 700-volt mark, creating a clear bifurcation in the power electronics market. For auxiliary power applications, onboard chargers, and DC-DC converters operating below 700V, GaN is the preferred device due to its unmatched cost-to-density ratio. For traction inverters, grid-scale solar installations, and heavy industrial drives operating at 800V to 1,200V and beyond, SiC remains entirely unchallenged, as it is the only material capable of surviving the thermal and electrical stress.[1]

Ultimately, the power electronics revolution is not a winner-take-all contest between GaN and SiC. Instead, it has ushered in an era of strict specialization where material properties dictate the application. Designers who over-spec SiC for a 400-volt air-cooled system will waste significant budget on unnecessary thermal headroom, while those who force GaN into a 1,200-volt heavy-duty inverter will face catastrophic thermal failures. Success in modern power design requires matching the semiconductor's intrinsic physics to the exact constraints of the socket, ensuring neither money nor efficiency is left on the table.[6]
