FERC Mandates PJM Accept Statistical Sampling, Clearing Path for Virtual Power Plants

For millions of households across the mid-Atlantic and Midwest, the smart thermostat on the wall or the battery in the garage is about to become a paying asset in the wholesale energy market. The transition hinges on a structural shift in how grid operators verify energy data, moving the burden of proof away from utility-controlled meters and toward mathematical models.

Late last month, the Federal Energy Regulatory Commission (FERC) ordered the PJM Interconnection—the nation's largest grid operator—to overhaul its data requirements for virtual power plants (VPPs). The ruling mandates that PJM accept statistical sampling to verify demand reductions, effectively bypassing a long-standing utility bottleneck that had locked residential resources out of the capacity market.[1][3]

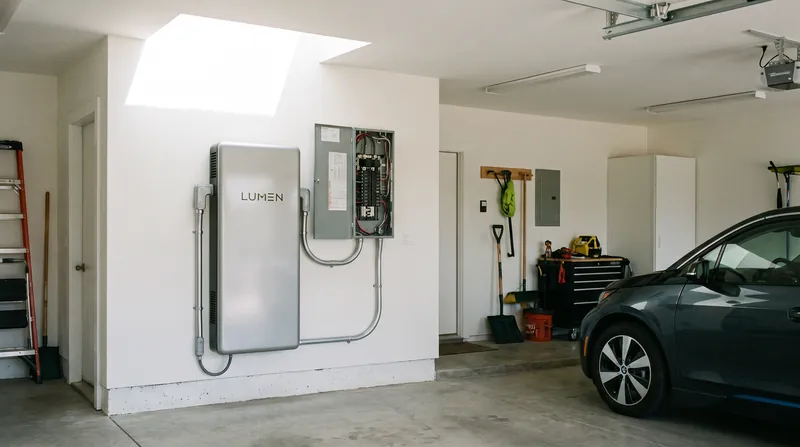

A virtual power plant aggregates thousands of small, distributed energy resources—such as residential solar arrays, home batteries, and smart HVAC systems—into a single dispatchable block of power. When grid demand spikes, these aggregators remotely reduce household consumption or discharge batteries, acting as a direct substitute for a traditional gas-fired peaker plant.

The primary barrier to VPP deployment in PJM has been data access. PJM's previous market rules required aggregators to provide granular, household-level smart-meter data to prove that customers actually reduced their power use when dispatched. Without this direct telemetry, PJM would not compensate the aggregator for the capacity.[1][3]

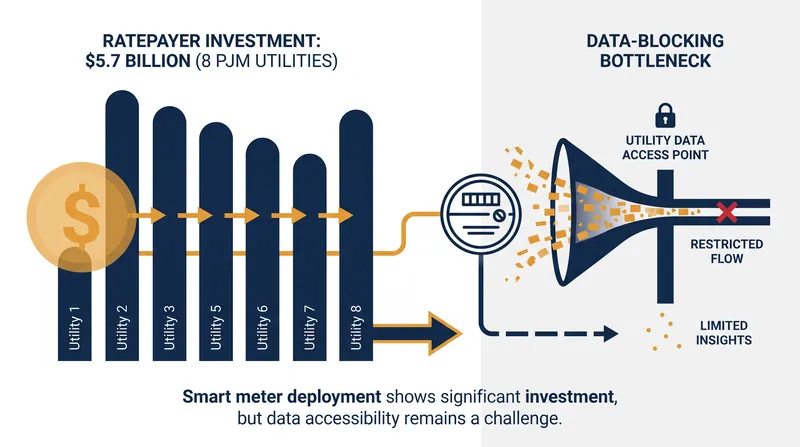

However, aggregators argued that incumbent utilities were effectively blocking this data. In a formal complaint filed with FERC, firms like Voltus and the Mission:data Coalition demonstrated that while ratepayers funded $5.7 billion for smart meters across eight PJM utilities, those utilities failed to provide the resulting data to third-party aggregators in a scalable or meaningful format.[2]

FERC agreed with the aggregators, ruling that PJM's strict metering requirements were "unjust and unreasonable." The commission ordered the grid operator to accept statistical sampling—a method already used as a backup for homes without smart meters—as a valid verification tool across the board, noting that it can be highly accurate when applied to large portfolios of residential customers.[1]

This regulatory shift arrives at a critical moment for PJM's infrastructure. The grid operator, which serves 67 million people across 13 states, is facing an unprecedented surge in electricity demand driven largely by the rapid expansion of hyperscale artificial intelligence data centers.[1][4]

The scale of the capacity shortfall is severe. PJM anticipates roughly 70 gigawatts of new large-load demand by 2038, a surge that coincides with the retirement of approximately 15 gigawatts of legacy fossil-fuel generation since 2022. This mismatch has triggered acute capacity constraints, threatening system reliability and driving up wholesale energy costs.[5]

By removing the smart-meter data bottleneck, the FERC ruling is projected to unlock at least 4.9 gigawatts of latent VPP capacity within PJM's footprint. This volume is equivalent to the output of several large nuclear or combined-cycle gas plants, but it can be deployed rapidly without requiring years of new transmission build-outs.[1][3]

The evidence supporting the 4.9-gigawatt figure relies heavily on aggregator modeling of existing smart-thermostat and battery penetration. While the technical capacity undoubtedly exists on the grid edge, the actual market participation rate remains a variable. The realization of this capacity depends on customer opt-in rates and the financial incentives aggregators can offer once they clear PJM's market hurdles.[1]

The ruling does not take effect overnight. FERC has directed PJM to launch a formal proceeding to develop the specific statistical sampling methodologies in collaboration with industry stakeholders, with initial plans due within 45 days of the order.[1]

The transition will require navigating legitimate operational concerns. PJM staff and the grid's independent market monitor have argued that without direct meter telemetry, the operator risks paying for "phantom" demand reductions. In a constrained grid, overestimating the response of a virtual power plant could compromise real-time system balancing during extreme weather events.[3]

To mitigate this risk, the upcoming stakeholder process must define confidence intervals and penalty structures that ensure statistical sampling matches the operational certainty of physical meters. Aggregators will be required to prove that their sampling algorithms can accurately predict load shedding across diverse geographies and weather conditions.[1][3]

Despite these technical challenges, the FERC mandate forces a structural realignment of the wholesale market. By shifting the verification standard, the ruling breaks the monopoly that distribution utilities held over customer energy data, democratizing access to capacity revenues.[2]

Ultimately, this decision integrates the residential edge of the grid into the bulk power system. As data center load continues to strain traditional generation, the ability to rapidly dispatch millions of household devices is transitioning from a pilot-scale experiment into a foundational pillar of grid reliability.[1][4]
