The Architecture of Assured Access: How Japan's H3 Rocket and QZSS Constellation Secure Sovereign Navigation

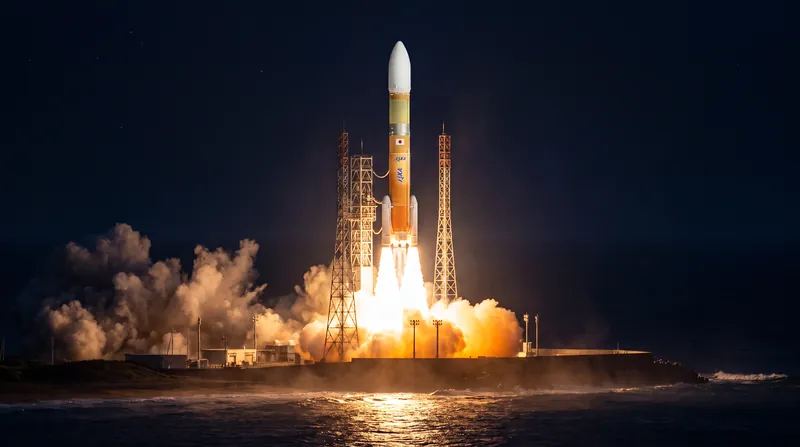

On August 11, 2026, Japan's H3 rocket lifted off from the Tanegashima Space Center, carrying the Michibiki-7 navigation satellite into orbit. The successful pre-dawn deployment marks the second consecutive flawless flight for the Japan Aerospace Exploration Agency's (JAXA) new flagship launch vehicle, following a previous success in June.[1]

The mission represents a critical node in Japan's broader strategy to secure independent access to space and establish a sovereign navigation infrastructure. By expanding the Quasi-Zenith Satellite System (QZSS), Japan aims to reduce its reliance on the United States' Global Positioning System (GPS) while unlocking unprecedented positioning accuracy for domestic industries.[2][3]

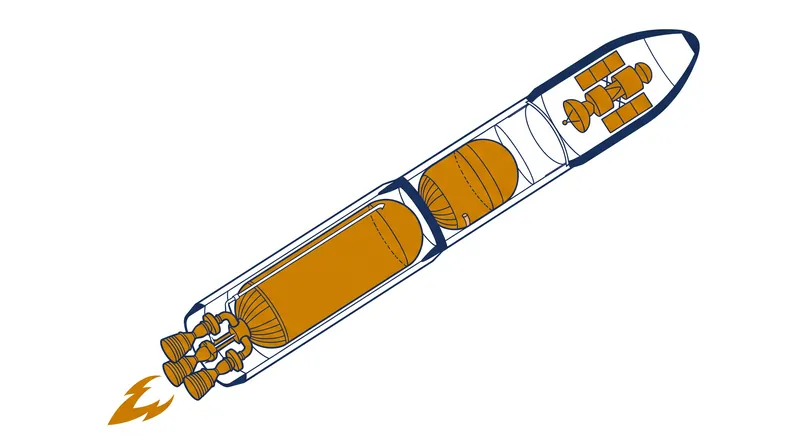

The H3 rocket, developed jointly by JAXA and Mitsubishi Heavy Industries, is designed to replace the retiring H-IIA. To halve launch costs to approximately $33 million per flight, the H3 utilizes automotive-grade commercial components and 3D-printed parts. Its core innovation is the LE-9 main engine, which employs an "expander bleed cycle" to reduce part counts and minimize the risk of abnormal combustion.[2]

Achieving stable operations has required overcoming early developmental friction. The H3 suffered a failure during its debut in 2023 and another anomaly in December 2025 that lost the Michibiki-5 payload. However, the flawless Michibiki-7 launch signals that the platform has regained its footing in a highly competitive global launch market.[1][5]

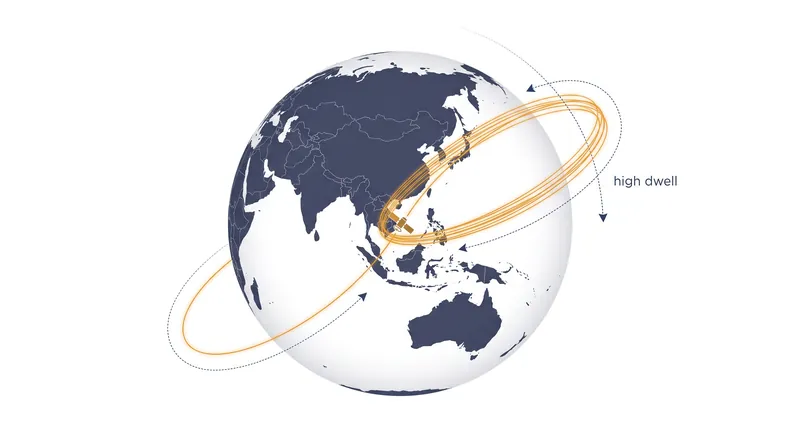

The payload itself, Michibiki-7, joins a specialized regional navigation network. Unlike traditional GPS satellites that orbit in medium Earth orbit, the QZSS constellation utilizes a mix of geostationary and highly elliptical "tundra" orbits. These asymmetrical, figure-eight flight paths ensure that at least one satellite remains almost directly overhead—at a "quasi-zenith" elevation of 60 degrees or higher—over Japan at all times.[3][4]

This orbital architecture solves a specific geographic challenge. In dense metropolises like Tokyo, towering skyscrapers create "urban canyons" that block low-angle satellite signals, degrading standard GPS accuracy. By broadcasting from directly above, QZSS signals penetrate these concrete corridors, ensuring continuous coverage for smartphones and vehicle navigation systems.[3][5]

Beyond basic positioning, QZSS transmits specialized augmentation signals, including the Sub-meter Level Augmentation Service and the Centimeter Level Augmentation Service. When integrated with standard GPS data, these corrections eliminate atmospheric and orbital errors, refining location accuracy from several meters down to mere centimeters.[3][4]

This hyper-precise data is foundational for next-generation infrastructure. It enables autonomous tractors to navigate farmland with millimeter precision, guides self-driving vehicles through complex urban grids, and supports automated drone deliveries. Furthermore, the system includes a short-message service for emergency disaster broadcasting when terrestrial cellular networks fail.[3][4][5]

While QZSS is a sovereign Japanese asset, it is designed for deep interoperability. The Michibiki-7 satellite also hosts a secondary payload—the Situational Awareness Camera Hosted Instrument—developed by the MIT Lincoln Laboratory for the U.S. Space Force. This instrument monitors objects in geosynchronous orbit, highlighting the ongoing strategic space partnership between Tokyo and Washington.[1][5]

Japan's government plans to expand the QZSS constellation to a full seven-satellite network, providing continuous, independent coverage across the Asia-Oceania region. As the H3 rocket builds its flight heritage, the dual pillars of affordable launch capacity and sovereign navigation infrastructure position Japan to navigate the commercial and strategic realities of the modern space economy.[2][3][5]
