First-Ever In Vivo Imaging Captures Sickle Cell Vaso-Occlusive Events in Real Time

For decades, the excruciating pain crises of sickle cell disease have been treated blindly. Patients arrive at emergency rooms in agony, but doctors cannot see the microscopic traffic jams—known as vaso-occlusive crises—causing the pain. They can only treat the symptoms with fluids and opioids, waiting for the blockages to clear. That blindness is finally ending. A new imaging technique allows researchers to watch sickle cell vaso-occlusion happen in living humans, in real time, without incisions or fluorescent dyes. This breakthrough is rewriting our understanding of how these blockages form, shifting the focus from simple mechanical trapping to complex cellular stickiness, and offering the first direct window into the mechanics of a disease that affects millions worldwide.

Sickle cell disease is caused by a genetic mutation that alters hemoglobin, the oxygen-carrying protein in red blood cells. When deoxygenated, this mutant hemoglobin polymerizes into long, rigid fibers, forcing the normally pliable cells into stiff, crescent-like shapes. Historically, the prevailing medical theory was that these misshapen cells simply got stuck in narrow capillaries, much like a rigid log wedged in a winding stream. It was viewed primarily as a mechanical plumbing problem. However, as researchers developed better ways to study blood outside the body, they began to suspect that inflammation and cellular adhesion played a much larger role than previously understood.[4]

In 2015, biomedical engineers developed quantitative microfluidic fluorescence microscopy (qMFM) to flow human sickle blood through artificial silicone channels lined with endothelial proteins. This in vitro setup allowed them to track individual cells under physiological flow conditions. They discovered that white blood cells, specifically neutrophils, were rolling and arresting on the channel walls at much higher rates than in healthy blood. These arrested white blood cells acted as biological anchors, catching passing platelets and red blood cells to build a multi-cellular blockage. It was the first clear evidence that vaso-occlusion was an active, adhesive process rather than a passive mechanical one.[2]

Two years later, researchers took this concept into living animals. Using intravital microscopy in transgenic "humanized" mice—which are genetically engineered to produce human sickle hemoglobin—they observed the pulmonary microcirculation. Following a mild inflammatory trigger, they watched as neutrophil-platelet aggregates formed microemboli in the precapillary arterioles of the lungs. This provided a crucial mechanistic explanation for acute chest syndrome, a leading cause of mortality in sickle cell patients. Yet, while these animal models and artificial channels were illuminating, they could not perfectly replicate the spontaneous, un-triggered vaso-occlusion that plagues human patients daily.[3]

The holy grail has always been to observe these events directly in human patients. The primary challenge was optical resolution. Human skin and tissue heavily scatter light, making it impossible to see individual cells flowing through deep capillaries without invasive surgery or the injection of toxic fluorescent dyes. Traditional widefield imaging techniques lacked the contrast necessary to distinguish individual red blood cells from one another, let alone identify the characteristic sickle morphology in a flowing vessel. Researchers needed a way to peer beneath the surface without altering the very blood flow they were trying to measure, a hurdle that stymied clinical imaging for decades.

Enter oblique back-illumination microscopy (OBM). This novel imaging technique bypasses the scattering problem by shining angled light into the tissue and capturing the multiple-scattered light that bounces back from deeper layers. By analyzing the phase gradients of this returning light, OBM generates high-contrast, label-free images of cells deep within the tissue, rendering them with a 3D-like appearance. Because it requires no dyes and relies entirely on safe, low-power light, it is perfectly suited for non-invasive human imaging, finally providing the resolution needed to track individual erythrocytes in vivo.[1]

In a landmark 2026 study published in Blood Advances, researchers deployed a handheld OBM probe to image the microcirculation of patients with sickle cell disease. They chose the underside of the tongue—the sublingual mucosa—because it lacks melanin, which absorbs light, and features a dense network of superficial capillaries. By resting the probe gently under the tongues of ten patients and ten healthy controls, the scientists recorded high-speed videos of individual blood cells navigating the human microvasculature, capturing the exact moment a crisis begins at the cellular level.[1]

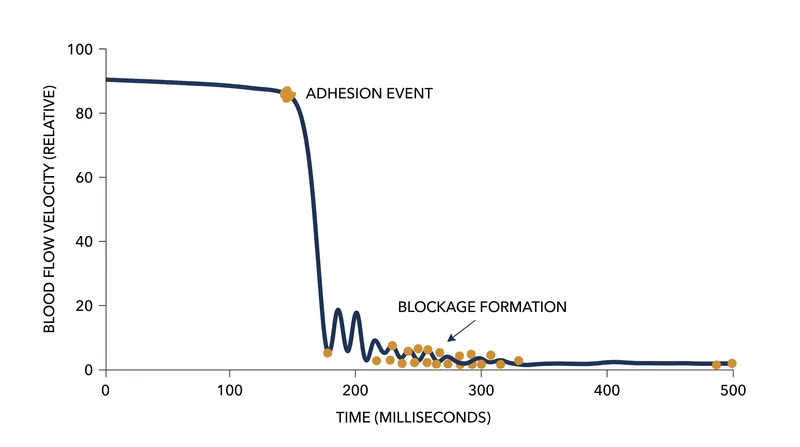

The footage fundamentally shifted the paradigm. They observed that vaso-occlusion is not initiated by a mechanical logjam of stiff cells. Instead, it is triggered by individual red blood cells—often visibly sickled—actively adhering to the endothelium, the inner lining of the blood vessel. Once an initial cell sticks to the vessel wall, it acts as a snare. Additional red blood cells, white blood cells, and platelets pile up behind it, rapidly forming a barricade that halts blood flow completely. These occlusions can form in a matter of seconds and sometimes dissipate just as quickly, though many persist to cause downstream oxygen deprivation.[1]

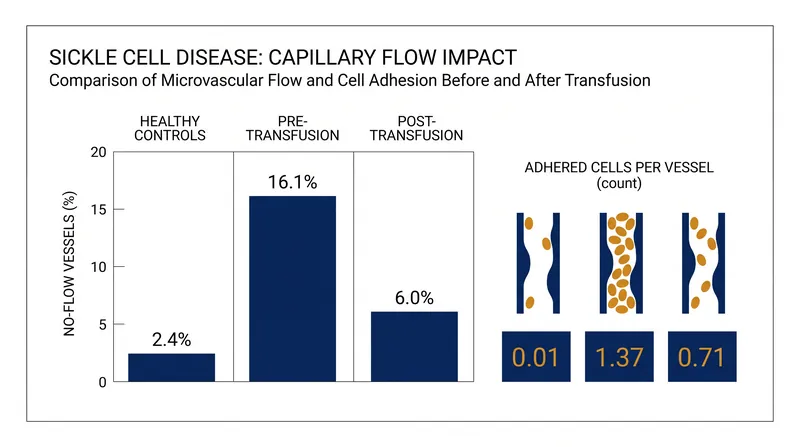

The researchers quantified this microvascular dysfunction by analyzing the flow states of thousands of individual capillaries. In healthy controls, 77.7% of vessels had fast-flowing blood, and only 2.4% experienced no flow. In sickle cell patients before treatment, the microcirculation was severely compromised: fast-flowing vessels dropped to 48.7%, and no-flow vessels spiked to 16.1%. Furthermore, the sheer stickiness of the cells was staggering. Patients with sickle cell disease had an average of 1.37 adhered red blood cells per vessel, compared to just 0.01 in healthy controls—a more than 100-fold increase in endothelial adhesion.[1]

The study also provided the first direct visual evidence of how red blood cell transfusions—a standard therapy for severe sickle cell disease—mechanically relieve these blockages. Following transfusion, the percentage of no-flow vessels in patients dropped from 16.1% to 6.0%. Fast-flowing vessels also rebounded significantly, climbing back to 65.8%. This visual confirmation validates the clinical practice of transfusion, showing exactly how the introduction of healthy, flexible red blood cells helps to clear the microscopic traffic jams, dilute the concentration of sickled cells, and restore oxygen delivery to starved tissues.[1]

However, the imaging revealed a crucial limitation of transfusion therapy. While mechanical flow improved dramatically, the underlying endothelial stickiness did not fully resolve. Post-transfusion, patients still had 0.71 adhered cells per vessel. While this is a significant drop from the pre-transfusion high, it remains 71 times higher than the 0.01 adhered cells seen in healthy individuals. This suggests that while transfusions restore bulk flow, the inflammatory state of the blood vessels remains elevated. The endothelium is still primed to catch passing cells, leaving the patient vulnerable to future crises once the transfused blood turns over.[1][4]

The ability to see these events in real time opens a new frontier in sickle cell treatment. OBM could serve as an objective biomarker to measure disease severity and evaluate the efficacy of new anti-adhesion drugs, moving beyond subjective pain scores. If doctors can monitor capillary flow during a routine clinic visit, they might be able to predict a pain crisis before it starts, or tailor drug dosages to the specific stickiness of a patient's endothelium. While the exact molecular triggers that cause a specific cell to suddenly stick in vivo remain under investigation, the visual evidence is undeniable: vaso-occlusion is an active, adhesive disease, and we finally have the tools to watch it unfold.[1][4]
