NVIDIA Unveils 'Vera' CPU and Rubin Architecture, Pivoting AI Metric to 'Tokens per Watt'

The bottleneck in artificial intelligence is no longer just the supply of silicon; it is the supply of electricity. For developers building the next generation of AI agents and consumers relying on them, the cost and speed of every digital interaction are increasingly dictated by how much power a data center is legally and physically allowed to draw from the local grid.[4][5]

Recognizing this physical ceiling, NVIDIA has unveiled the architectural details of its upcoming "Vera Rubin" platform, explicitly pivoting the industry's benchmark for success. Instead of simply touting raw speed or floating-point operations per second, the company is aggressively pushing a new metric: "tokens per watt."[1][4]

The core claim is substantial. NVIDIA asserts that the Vera Rubin platform—combining the new Vera CPU, the Rubin GPU, and a suite of power-management software—delivers a 40 percent gain in inference efficiency. In practical terms, this means data center operators can pack 40 percent more GPU capacity into the exact same power budget, fundamentally altering the economics of running AI at scale.[1][3]

However, a skeptical eye must distinguish between what is shipping today and what is being promised for tomorrow. While NVIDIA's Blackwell architecture is currently being deployed across hyperscale data centers, Vera Rubin is slated for a production ramp in the latter half of 2026. The touted 40 percent efficiency gains are based on early testing, "extreme co-design" models, and highly optimized lab environments, rather than widespread, real-world field data.[1][2]

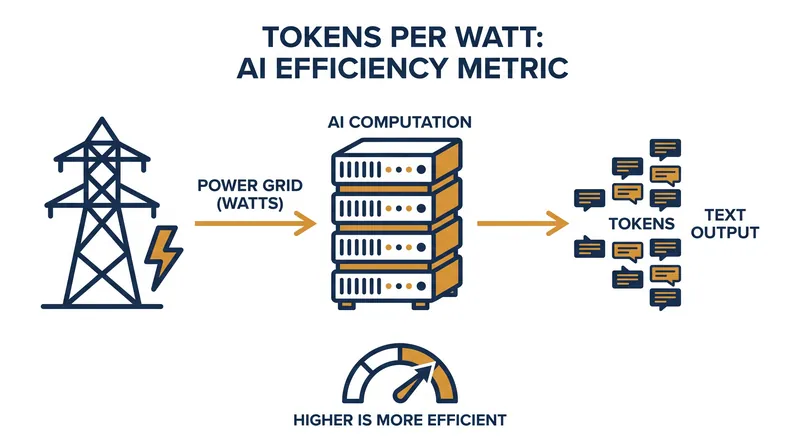

To understand the shift, one must define the new metric. A "token" is roughly equivalent to a fraction of a word in AI processing. Generating that token requires compute cycles, which in turn require watts of electricity. Because "inference"—the act of users actually querying the model—has become the dominant cost center in AI, hyperscalers are no longer just buying chips; they are buying the ability to convert electricity into billable tokens as efficiently as possible.[4][5]

The hardware foundation of this pivot is the Vera CPU. Unlike traditional server architectures where an off-the-shelf processor simply feeds data to a hungry GPU, Vera is a custom ARM-based chip featuring 88 "Olympus" cores. It is purpose-built for the era of "agentic AI," where models do not just generate text, but actively write code, run it in sandboxed environments, and use external tools to solve multi-step problems.[1][2][6]

This CPU is paired with the Rubin GPU via a proprietary, ultra-high-speed interconnect known as NVLink-C2C, which moves data at 1.8 terabytes per second. By designing both the CPU and the GPU in-house, NVIDIA aims to eliminate the traditional communication bottlenecks that leave GPUs idling—and wasting power—while waiting for the CPU to process sequential logic.[6][7]

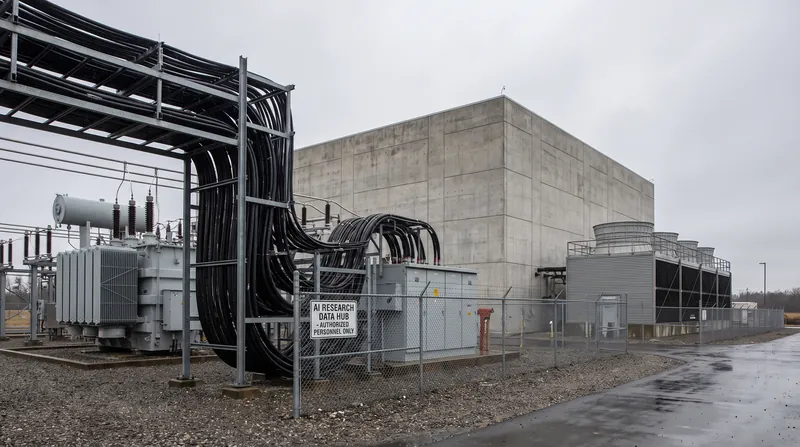

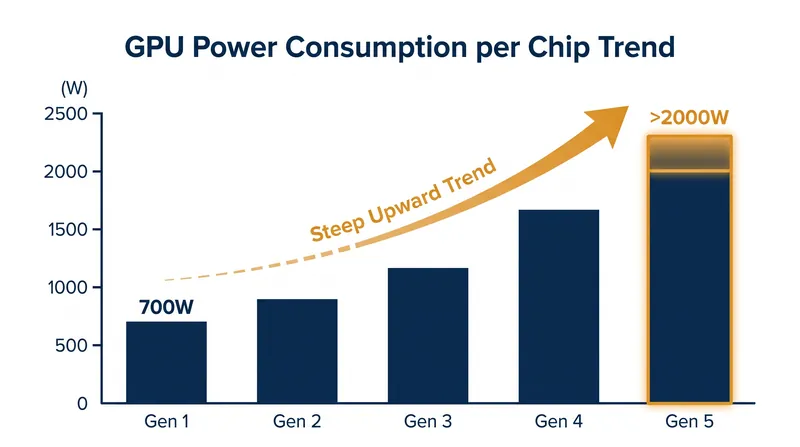

The urgency behind this architectural shift is driven by the stark reality of the power grid. Modern data centers are routinely requesting hundreds of megawatts, and regional utilities are struggling to keep up. With older H100 chips drawing around 700 watts each, and future silicon pushing past 1,200 to 2,300 watts per chip, operators cannot simply plug in more racks without tripping municipal power limits.[4]

Consequently, NVIDIA's 40 percent efficiency claim does not rely on hardware alone. It leans heavily on a software layer called MaxLPS, part of the broader DSX platform. MaxLPS dynamically manages power at the rack level, continuously monitoring thermal limits and workload demands to recover "stranded power"—electricity that is provisioned to a rack but goes unused due to inefficient load balancing.[1][3]

By shifting power microsecond by microsecond to where it is needed most, the software ensures that the entire rack operates at its most efficient point. For cloud providers, this is the holy grail: if a facility is strictly capped at 100 megawatts, the only mathematical way to increase revenue is to squeeze more billable tokens out of that exact same 100-megawatt envelope.[3][4]

Yet, there is a significant catch to this high-density vision. Achieving these numbers requires direct-to-chip liquid cooling, as traditional air conditioning physically cannot dissipate the heat generated by a Vera Rubin rack. Many existing data centers are not plumbed or structurally reinforced to handle the immense weight and liquid requirements of these next-generation systems, setting up a massive infrastructure bottleneck.[1][3]

The transition to tokens per watt also reflects a fundamental change in how AI models operate. The industry is moving toward "test-time scaling," where models are given more time to "think" before they answer. This requires massive context windows and continuous back-and-forth between the CPU and GPU, making energy efficiency the binding constraint on how smart an AI can afford to be.[1][7]

NVIDIA is not alone in this realization. Competitors like AMD, as well as the custom silicon divisions of Google and Amazon, are all aggressively optimizing for inference efficiency. However, NVIDIA's strategy is to use its annual release cadence to lock the ecosystem into its proprietary NVLink fabrics and DSX software, making it difficult for operators to mix and match hardware.[2]

Ultimately, the elevation of "tokens per watt" as the industry's defining metric acknowledges a hard physical boundary. The growth of artificial intelligence is no longer constrained merely by the limits of Moore's Law, but by the capacity of the electrical grid. Whether NVIDIA's 40 percent efficiency gains hold up in the messy reality of global data centers will likely dictate the cost of AI for the rest of the decade.[3][4][5]
