Chinese Researchers Unveil Silicon-Free Transistor, Promising 40% Faster, Lower-Power Chips

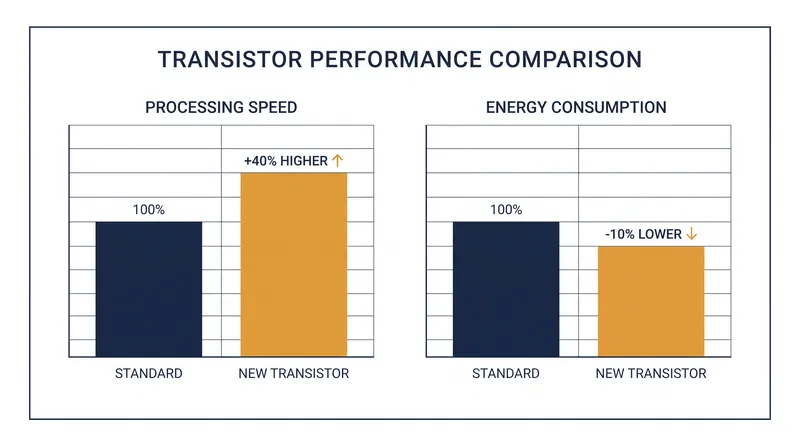

Researchers at Peking University have unveiled a two-dimensional, silicon-free transistor that they claim operates 40 percent faster than the most advanced silicon chips on the market while consuming 10 percent less energy.[1][2]

The breakthrough, detailed in the journal Nature Materials, replaces traditional silicon with bismuth-based compounds—specifically bismuth oxyselenide for the transistor's channel and bismuth selenate for the gate dielectric.[3][5]

While the performance metrics are striking, it is crucial to distinguish between a laboratory prototype and a commercial processor. The team has successfully built small logic units to demonstrate the architecture, but this is not a fully integrated chip ready to be slotted into a smartphone or server rack.[1][4]

The design abandons the industry-standard FinFET (Fin Field-Effect Transistor) architecture, which relies on vertical, fin-like structures to control current. Instead, the Chinese team utilized a Gate-All-Around (GAAFET) approach.[2][5]

In this configuration, the gate completely wraps around the source, maximizing the contact area. This full-wrap structure significantly reduces energy leakage and allows electrons to flow with minimal resistance—a dynamic the lead researcher likened to water moving smoothly through a pipe.[1][2]

For decades, the semiconductor industry has relied on shrinking silicon transistors to pack more computing power into smaller spaces. However, as manufacturing nodes push below three nanometers, silicon is hitting its absolute physical and thermal limits.[4][6]

Beyond the physics, the development carries immense strategic weight. U.S. export controls have systematically restricted China's access to the extreme ultraviolet (EUV) lithography machines required to manufacture cutting-edge silicon chips.[2][3]

By pivoting to a completely different material and architecture, the Peking University team is attempting to bypass this bottleneck entirely. The researchers noted that their bismuth-based transistors could potentially be manufactured using older, locally available equipment rather than relying on restricted Western hardware.[3][4]

State-aligned media and the researchers themselves have aggressively framed this as a "lane change" rather than a shortcut, using marketing language to suggest China could soon leapfrog Western semiconductor dominance.[1][2]

However, scaling a novel material from a pristine laboratory environment to high-yield commercial fabrication is notoriously difficult. Bismuth is far less abundant than silicon, and integrating these 2D materials into existing global supply chains would require a monumental overhaul of manufacturing infrastructure.[4][6]

The immediate next step for the Peking University team is proving that these individual logic units can be scaled into complex, multi-layered integrated circuits without losing their performance edge or structural stability.[1][5]

If successful, the transition from monolithic 2D designs to 3D stacked architectures could fundamentally alter the trajectory of global computing. Even if commercialization remains years away, the prototype serves as a stark reminder that export restrictions often accelerate alternative innovation.[4][6]
