Why Preloaded Bolts Survive Dynamic Tension by Relaxing Clamped Flanges

A simple steel pin dropped through two plates transfers every ounce of external pull directly into its own shaft. If a machine yanks on those plates one hundred times a minute, the pin experiences one hundred distinct spikes in tension. It will eventually snap from metal fatigue.

A preloaded bolt looks identical from the outside, but it behaves entirely differently. By clamping the plates together under immense pressure before any external load is applied, the bolt forces the surrounding metal to act as a shock absorber.

This counterintuitive mechanism is the foundation of modern mechanical engineering. Instead of building thicker fasteners to withstand dynamic forces, engineers use high torque to stretch the bolt and compress the joint. The tension inside the fastener remains remarkably stable even when the external world pulls violently against it.

The physics of this stability rely on the differing stiffness between the bolt and the clamped material. Understanding this relationship explains why bridges, aircraft engines, and heavy machinery do not rattle apart under constant vibration.[3]

The Mechanics of Clamping Force

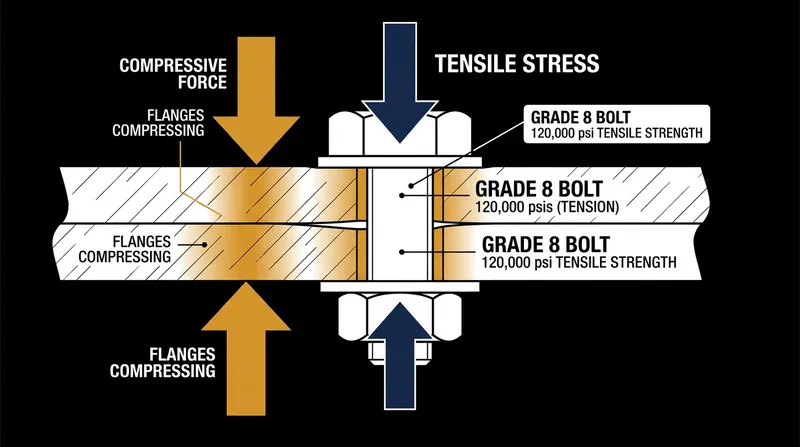

Tightening a nut onto a bolt does not merely hold two pieces of metal adjacent to one another. The rotational force of the wrench drives the threads down, physically stretching the steel shaft of the bolt like a heavy rubber band.[2]

As the bolt stretches, it pulls the two flanges—the pieces of metal being joined—violently together. This clamping force, known as preload, compresses the flanges. The bolt is now in a state of high static tension, and the joint is in a state of high static compression.

"The primary purpose of a fastener is to clamp parts together, not to act as a shear pin," notes the 1990 NASA Fastener Design Manual, authored by Richard T. Barrett. The manual emphasizes that the integrity of the joint depends entirely on maintaining this compressive force.[2]

The compressed flanges store potential energy. They push back against the bolt head and the nut, trying to expand to their original thickness. This opposing force locks the threads in place and creates a unified structural element that is far stronger than its individual components.[2]

The Stiffness Ratio Advantage

The secret to a bolted joint's resilience lies in a concept called the stiffness ratio. Stiffness measures how much force is required to deform a material by a specific amount. In a typical assembly, the bolt and the flanges do not share the same stiffness.[4]

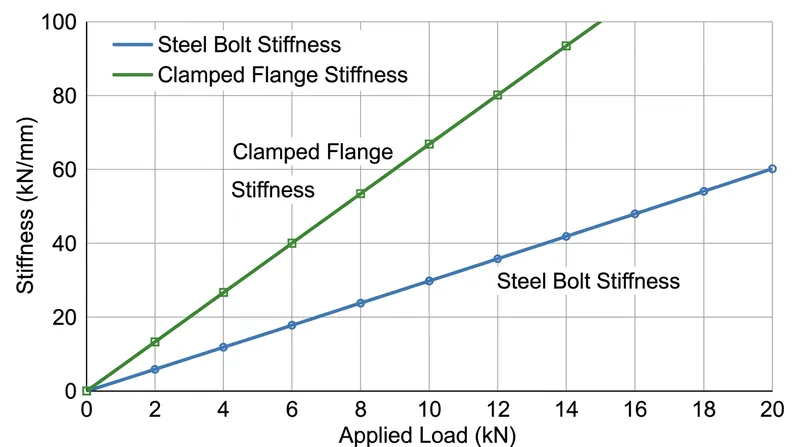

The bolt is a relatively narrow cylinder of steel. The flanges, however, form a wide cone of compressed material spreading outward from the bolt head. Because there is simply more metal involved in the compression zone, the flanges are significantly stiffer than the bolt.[4]

In standard industrial applications, the clamped flanges are usually three to five times stiffer than the fastener itself. This disparity dictates how the joint will respond when an external force tries to pull the assembly apart.[4]

According to engineering data from Bolt Science, a typical Grade 8 steel bolt might exhibit a stiffness of 1.5 meganewtons per meter, while the surrounding steel flange exhibits a stiffness of 6.0 meganewtons per meter. This four-to-one ratio fundamentally alters the load path.

Absorbing the Dynamic Load

When an external tensile load pulls on the joint, logic suggests that the bolt should stretch further to accommodate the force. However, because the flanges are compressed like a tightly coiled spring, the external load actually goes toward uncompressing the joint.[3]

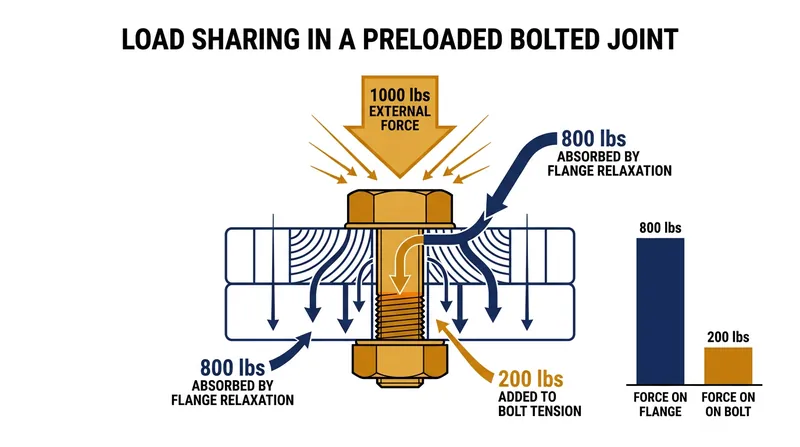

As the external force pulls the plates, the compressed flanges relax slightly. Because they are four times stiffer than the bolt, they absorb 80 percent of the applied load simply by expanding back toward their resting state.[1]

The bolt, being the weaker spring in the system, absorbs only the remaining 20 percent of the force. If an engine component exerts 1,000 pounds of dynamic pull on the joint, the bolt experiences an increase of just 200 pounds of tension.[1]

This load-sharing mechanism shields the fastener from the violent swings in stress that cause metal fatigue. The static preload remains high, but the dynamic cycling—the constant stretching and relaxing that actually breaks metal—is reduced to a fraction of the external force.[3]

The Threat of Fatigue Failure

Metal fatigue occurs when a material is subjected to repeated cycles of stress. Even if the peak stress is well below the material's ultimate tensile strength, the continuous fluctuation eventually initiates microscopic cracks that propagate through the steel.[3]

A standard Grade 8 bolt boasts a tensile strength of 120,000 pounds per square inch. It can easily survive a massive static load. But if that load cycles from zero to 50,000 pounds repeatedly, the bolt will fail long before reaching its theoretical limit.[3]

By absorbing the majority of the cyclic load, the relaxing flanges keep the bolt's stress amplitude incredibly narrow. The fastener remains in a state of high, steady tension, which steel tolerates exceptionally well over millions of cycles.[3][4]

"Fatigue failure in bolted joints is almost always a symptom of insufficient preload," explains a 2023 technical bulletin from Fastener Engineering. When the preload is too low, the flanges cannot absorb the external force, forcing the bolt to take the full dynamic load.[3]

The Joint Separation Threshold

The protective effect of the clamped flanges only lasts as long as they remain compressed. If the external tensile load exceeds the initial clamping force, the joint reaches a critical failure point known as joint separation.[2]

At the moment of separation, the flanges have fully relaxed and are no longer pushing against each other. The stiffness ratio instantly drops to zero. From that millisecond forward, 100 percent of any additional external load is transferred directly into the bolt.[4]

Once separation occurs, the bolt begins to cycle violently with every application of force. The microscopic cracks initiate rapidly, and catastrophic fatigue failure becomes inevitable. This is why engineers specify torque values that seem dangerously high.[3]

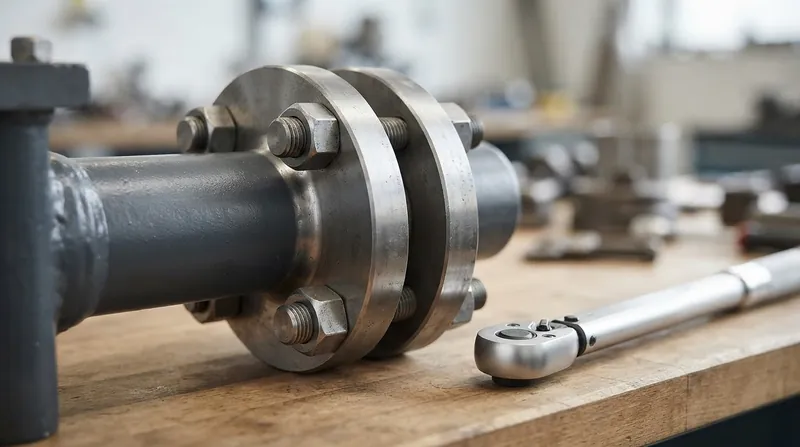

The goal is to stretch the bolt to roughly 75 percent of its yield strength during installation. This massive initial tension ensures that the joint remains compressed even under the most extreme operating conditions the machine will ever face.[2][5]

Engineering the Perfect Joint

Achieving the correct preload requires precise installation methods. Relying solely on a torque wrench can be inaccurate, as friction in the threads can consume up to 90 percent of the applied rotational force, leaving very little energy to actually stretch the bolt.[2][3]

Critical aerospace and automotive applications often use torque-to-yield methods or direct tension indicators. These techniques measure the actual stretch of the fastener, ensuring the flanges are compressed exactly as the structural engineers intended.[5]

The American Institute of Steel Construction mandates specific tensioning procedures for structural bolts used in bridges and skyscrapers. Their 2020 specifications require high-strength bolts to be tensioned until the steel yields slightly, maximizing the clamping force.[5]

This deliberate over-tightening guarantees that the massive dynamic loads from wind, traffic, and thermal expansion are absorbed by the massive steel beams relaxing, rather than the relatively tiny fasteners stretching and snapping.[4][5]

The Counterintuitive Reality

It requires a shift in perspective to accept that adding 10,000 pounds of static tension to a bolt makes it safer. Human intuition suggests that a tight string is closer to snapping than a loose one, but metal behaves differently under compression.[1]

The preloaded joint is a dynamic system where the surrounding material does the heavy lifting. The bolt's primary job is simply to trap the energy inside the flanges during assembly, creating a buffer against the chaos of the operating environment.

By forcing the flanges to act as a stiff, relaxing spring, engineers neutralize the destructive power of cyclic loading. The external forces are dissipated into the bulk of the machine, leaving the fastener undisturbed.[3][4]

The survival of a bolted joint does not depend on the sheer strength of the steel shaft. It depends entirely on the invisible, trapped compression of the metal around it, silently expanding and contracting to keep the machine whole.[1][2]
