Metal-Semiconductor Contact Potentials Exactly Cancel Built-In Voltage, Pinning Diode Voltmeter Readings to Zero

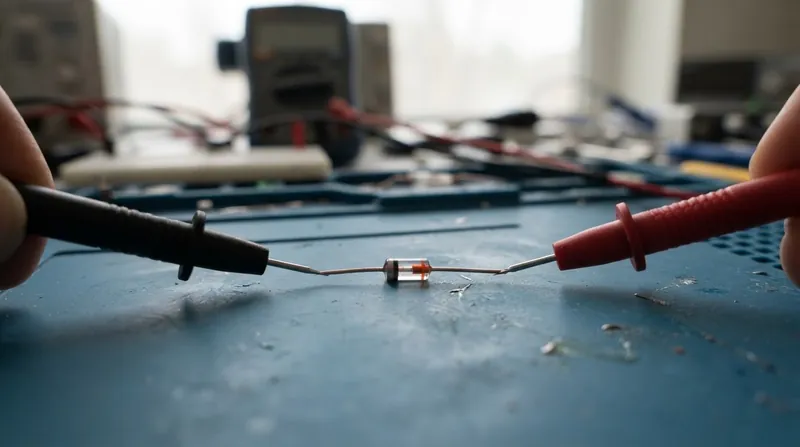

Start in July 1949, when Bell Labs physicist William Shockley published "The Theory of p-n Junctions in Semiconductors and p-n Junction Transistors" in the Bell System Technical Journal. This 54-page paper formalized how joining positively and negatively doped semiconductor crystals creates a spontaneous internal electric field.[3]

Shockley demonstrated that this boundary, known as the depletion region, governs the flow of all electricity in solid-state devices. Before his theoretical framework, semiconductors were poorly understood materials used primarily as crude radar detectors during World War II.[3]

His 1949 publication shifted the field from trial-and-error alchemy to precise mathematical physics. He proved that the junction between p-type and n-type silicon was not just a physical seam, but an active electrical barrier that could be manipulated.[3]

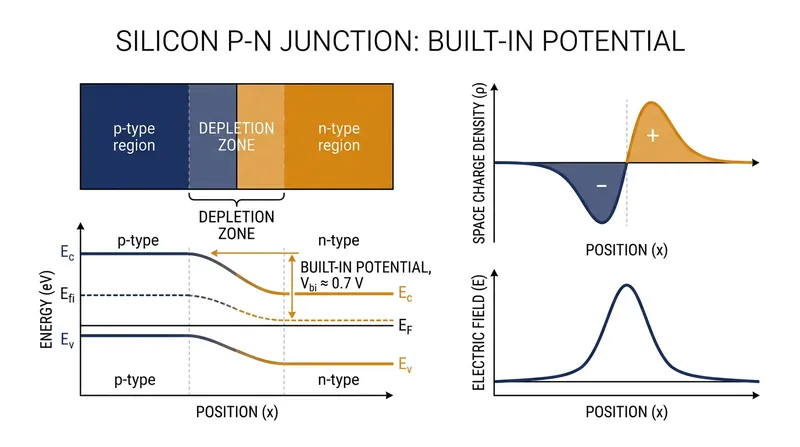

At the heart of Shockley's model is the built-in potential. When p-type silicon, which is rich in positively charged holes, meets n-type silicon, which is rich in free electrons, the carriers naturally diffuse across the boundary.

Electrons rush to fill the holes, leaving behind fixed, positively charged donor ions on the n-side and negatively charged acceptor ions on the p-side. This localized charge separation generates a strong electrostatic barrier that halts any further diffusion.[2]

For standard silicon doped at typical commercial levels, this internal barrier stabilizes at approximately 0.7 volts at room temperature. For germanium, a material heavily used in early 1950s transistors, the barrier rests near 0.3 volts.[4]

The Measurement Illusion

This built-in voltage is a real, physical electric field. It exists inside every diode, microprocessor, and solar cell, silently directing charge carriers and preventing the device from short-circuiting itself. It is the fundamental mechanism that makes digital logic possible.[5]

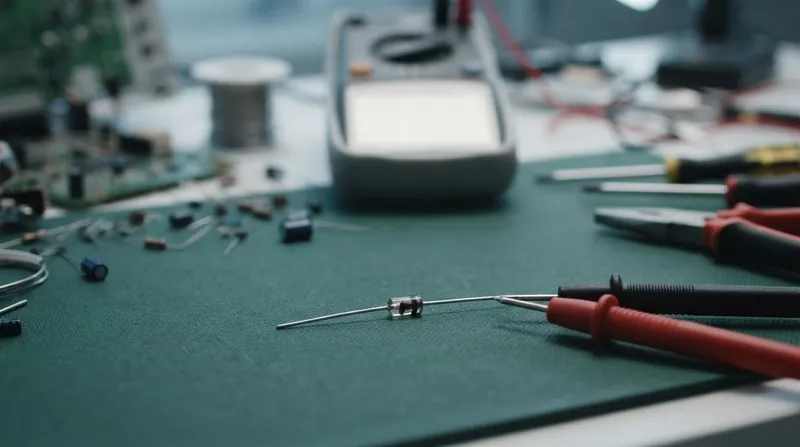

Yet, this foundational voltage presents an immediate practical paradox for anyone holding a piece of test equipment. If a silicon diode contains a permanent 0.7-volt electric field, connecting a standard laboratory voltmeter across its two terminals should theoretically register that charge.[5]

Instead, the digital display stubbornly reads exactly zero. The zero-volt reading is not a failure of the multimeter, nor does it mean the internal field has vanished. The paradox stems from a fundamental misunderstanding of what a voltmeter actually measures.[5]

A voltmeter does not directly count electrostatic field lines or the Galvani potential inside a crystal. Instead, a standard voltmeter measures the difference in electrochemical potential between its two metal probes. In solid-state physics, this electrochemical potential is known as the Fermi level.[1]

The Fermi level represents the total thermodynamic energy state of the electrons in a material, factoring in both electric fields and concentration gradients. "Since the voltmeter and the p-n junction form a single, closed system at equilibrium, the Fermi level at both terminals is identical," notes the materials science platform Bohrium.[1]

Because the entire circuit sits at thermal equilibrium, the electrons have no net incentive to move from one side to the other. If the Fermi levels were different, a spontaneous current would flow through the wires without any external power source.[1]

The Hidden Metal-Semiconductor Contacts

That spontaneous current would violate the second law of thermodynamics. Therefore, the voltmeter reads the difference in Fermi levels, which is exactly zero. But the 0.7-volt electrostatic barrier still exists inside the silicon, holding the diffused charges at bay.[5]

The voltage has not disappeared; it is simply being masked by the measurement apparatus itself. To understand where the missing voltage goes, one must look closely at the physical interface where the metal probes touch the semiconductor.[5]

A standard circuit measurement requires connecting copper, gold, or steel probes to the silicon diode. This action inadvertently creates two entirely new junctions in the circuit: a metal-to-p-type junction and a metal-to-n-type junction.[5]

Each of these interfaces generates its own localized electric field. When a metal touches a semiconductor, electrons transfer between the two materials until their Fermi levels align. This charge transfer creates what physicists call a Schottky barrier or an ohmic contact.[1]

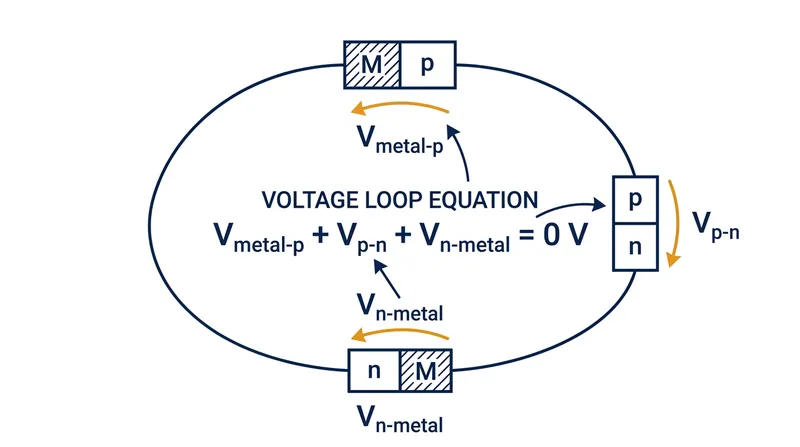

These contacts come complete with their own contact potential. The circuit is no longer just a simple p-n junction; it is a complex metal-p-n-metal loop. These newly formed contact potentials are the invisible counterweights in the system.[5]

The voltage drop at the copper-to-p-type interface, combined with the voltage drop at the n-type-to-copper interface, perfectly opposes the diode's internal field. The probes themselves generate the exact voltage required to blind the meter.[5]

The Perpetual Motion Constraint

The mathematics of this cancellation are absolute. In a closed loop at a uniform temperature, the sum of all electrostatic potential differences must equal zero. If the silicon p-n junction contributes a positive 0.7 volts, the two metal-semiconductor contacts must collectively contribute a negative 0.7 volts.[5]

This exact cancellation occurs regardless of the metals used. Whether the probes are made of copper, gold, or aluminum, the work function of the specific metal dictates the contact potential. The Fermi level alignment guarantees that the sum of the three junctions always nets out to zero.[5]

This thermodynamic principle explains why a diode cannot act as a battery. Despite housing a permanent electric field and separated charges, the device cannot deliver electrical work to an external load.[2]

The built-in potential is strictly a barrier that external voltages must overcome, not a reservoir of energy to be tapped. If a voltmeter could read the 0.7 volts, it would imply that electrons could flow through the external wire to neutralize the charge.[5]

Doing so would require the electrons to climb the metal-semiconductor contact barriers, which require the exact same amount of energy that the internal field provides. To force the diode to conduct, an external power supply must apply a forward bias.

Pushing 0.7 volts from a battery into the circuit raises the Fermi level on one side, flattening the internal barrier. Only then can electrons flood across the junction and create a usable current.

Probing the Unseen Field

This is why silicon diodes are universally known to have a 0.7-volt forward drop. Circuit designers must sacrifice 0.7 volts from their power supply simply to cancel out the built-in potential. Until that threshold is met, the depletion region remains an impenetrable wall.

In specialized applications, engineers use Schottky diodes, which replace the p-n junction with a single metal-semiconductor junction. Because they rely on a different barrier mechanism, Schottky diodes feature a lower forward voltage drop, typically around 0.3 volts.[1]

Yet even a Schottky diode will read zero volts on a multimeter when unpowered. The loop rule remains unbroken. Any closed circuit of dissimilar materials at a uniform temperature will always perfectly balance its internal electrostatic fields.[5]

Because direct measurement with a voltmeter is impossible, engineers must use indirect methods to quantify the built-in potential. The most common technique involves measuring the diode's capacitance under a reverse bias.[5]

As an external reverse voltage increases, the depletion region widens, and the junction capacitance drops. By plotting the inverse square of the capacitance against the applied reverse voltage, researchers can extrapolate the resulting line back to the x-axis.[5]

The intercept point reveals the exact built-in potential of the junction without ever requiring a direct voltage measurement. Advanced microscopy offers another window into the barrier, using microscopic cantilevers to map the electrostatic forces across the surface.[1]

These indirect measurements confirm that Shockley's 1949 framework remains perfectly intact. The built-in potential is real, powerful, and entirely isolated from the outside world by the very laws of thermodynamics that created it.[3]

The zero-volt reading on a multimeter is not an error, but a mathematical proof of thermal equilibrium. It serves as a reminder that the macroscopic tools used to measure circuits are themselves subject to the quantum mechanical rules governing the materials they touch.[5]
