Why Differential Pressure Valves Must Divert Excess Pump Head to Prevent Radiator Noise

The thermostatic radiator valve is the sole decision-maker in a modern hydronic heating zone, determining exactly when a room has absorbed enough thermal energy. It exercises this authority by physically driving a plunger into the valve seat, choking off the flow of hot water. It makes this calculation continuously, expanding its internal wax or liquid actuator as the ambient air warms.[1]

But that localized decision creates an immediate mechanical crisis for the rest of the heating system. A central circulator pump does not know that a specific bedroom has reached its target temperature. The pump continues to push water into the supply piping with the exact same mechanical force it used when every valve in the building was wide open.[3]

This disconnect between the valve’s localized restriction and the pump’s fixed output is the fundamental flaw in legacy hydronic design. As more valves close across the building, the total available pathway for the water shrinks. The pump’s fixed energy is suddenly concentrated on a much smaller total orifice area, forcing the system out of hydraulic equilibrium.[4]

The immediate consequence of this imbalance is a severe spike in differential pressure across the remaining open valves. Water cannot simply stop moving while the pump is running; it must go somewhere. The fluid is forced through the remaining open radiators at a significantly higher velocity than the system designer originally intended.

The acoustic threshold of high velocity

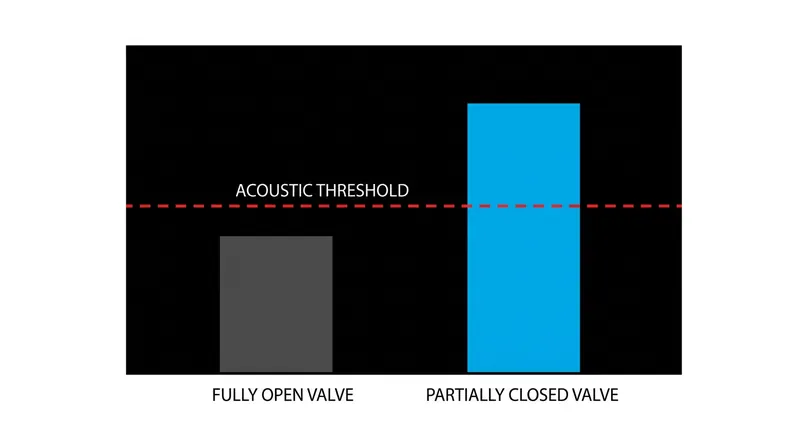

This forced velocity is what transforms a quiet heating system into a disruptive acoustic nuisance. When water is shoved through the narrow gap of a partially closed valve at high pressure, it creates extreme turbulence. The fluid shears against the brass edges of the valve seat, generating a high-pitched whistling or rushing noise that echoes through the metal piping.

The noise is not a sign of trapped air or a failing boiler, though it is often misdiagnosed as such. It is the literal sound of mechanical friction, as excess pump head forces water through an aperture that is too small to accommodate the flow rate. The only way to silence the radiator is to remove the excess pressure driving the fluid.

This is why a differential pressure bypass valve is not an optional accessory in a fixed-speed hydronic system, but a structural necessity. The bypass valve acts as a dedicated hydraulic detour, installed between the main supply and return pipes. It monitors the pressure difference across the system and decides when the pump is pushing too hard.[2]

When the differential pressure exceeds a predetermined threshold—typically set just above the system’s normal operating resistance—the bypass valve springs open. Instead of forcing the excess water through the remaining open radiators, the valve diverts it directly back to the boiler. This instantly caps the pressure differential across the entire network.[2]

Capping the pressure differential

By providing an alternate path of least resistance, the bypass valve flattens the system’s hydraulic curve. The remaining open thermostatic valves experience a steady, predictable pressure, regardless of how many other zones have shut down. The water velocity drops back below the acoustic threshold, and the whistling ceases immediately.[4]

Without this diversion, the excess pressure does more than just generate noise; it actively degrades the system's mechanical components. High-velocity water can erode the internal brass seats of the radiator valves over time, permanently destroying their ability to seal. It also places severe mechanical stress on the circulator pump, which is forced to operate against a dead-head condition.

A pump pushing against closed valves without a bypass path will rapidly overheat. The electrical energy consumed by the motor can no longer be converted into fluid motion, so it dissipates as heat into the trapped water inside the volute. This thermal buildup can boil the water locally, cavitating the impeller and destroying the pump's bearings.

The bypass valve prevents this catastrophic failure by guaranteeing a minimum flow rate through the boiler and the pump at all times. Even if every single radiator valve in the building closes simultaneously, the bypass valve opens fully. The pump simply circulates water in a short, safe loop until the boiler's internal controls shut the system down.[2]

The shift to variable-speed circulation

Modern hydronic engineering has introduced a technological alternative to the mechanical bypass valve: the variable-speed circulator pump. Instead of pushing with a fixed force, these smart pumps use internal microprocessors to monitor the system's hydraulic resistance. When thermostatic valves close and pressure begins to rise, the pump automatically slows its impeller down.

By reducing its speed, the pump actively prevents the differential pressure from spiking in the first place. This electronic adaptation achieves the exact same acoustic result as a mechanical bypass valve, keeping the water velocity low and the radiators quiet. It also saves a massive amount of electrical energy, as the pump only consumes the power strictly necessary for the current load.

However, the variable-speed pump does not render the bypass valve entirely obsolete. Many high-efficiency boilers, particularly older cast-iron or non-condensing models, require a strict minimum flow rate to prevent the heat exchanger from cracking due to thermal shock. If a smart pump slows down too much, it can starve the boiler of the water it needs to safely absorb the burner's heat.

In these specific configurations, a differential pressure bypass valve remains the only safe way to manage the system. It allows the pump to maintain a high enough speed to satisfy the boiler's minimum flow requirement, while still diverting the excess pressure away from the radiators. The mechanical valve acts as a fail-safe against the limitations of the electronic pump.[4]

Diagnosing the source of the whistle

For homeowners and technicians, distinguishing between a pressure-induced whistle and a trapped-air gurgle is the first step in resolving heating complaints. Air trapped in a radiator typically produces a bubbling or clicking sound as the metal expands, and it leaves the top of the radiator cold to the touch. This is easily resolved by opening the manual bleed valve.

A pressure whistle, conversely, is a continuous, high-pitched hiss that only occurs when the pump is running and the valve is partially closed. If opening the thermostatic valve fully causes the noise to stop, the diagnosis is confirmed: the system is suffering from excess differential pressure. The fluid is simply moving too fast for the restricted opening.[1]

The solution is never to permanently leave the radiator valves wide open, as this destroys the zone control and wastes expensive thermal energy. The correct intervention is to address the hydraulic imbalance at its source. The system designer must either install a differential pressure bypass valve or upgrade the circulator to a variable-speed model.

To understand why the pressure spikes, one must look at the centrifugal pump curve. A fixed-speed circulator operates on a specific performance curve that plots its head pressure against its flow rate. As the flow rate decreases due to closing valves, the operating point slides backward and upward along this curve.

The physics of the pump curve

This upward slide means that at lower flow rates, the pump actually generates more pressure. It is a counterintuitive reality of centrifugal mechanics: the less water the pump is allowed to move, the harder it pushes against the remaining water. This maximum pressure at zero flow is known as the pump's dead-head pressure.

When a system is designed, the engineer calculates the total head loss—the friction of the pipes, fittings, and fully open valves—and selects a pump that intersects this system curve at the desired flow rate. But this calculation assumes a static system. The introduction of thermostatic radiator valves turns a static pipe network into a dynamic, constantly shifting hydraulic puzzle.[3]

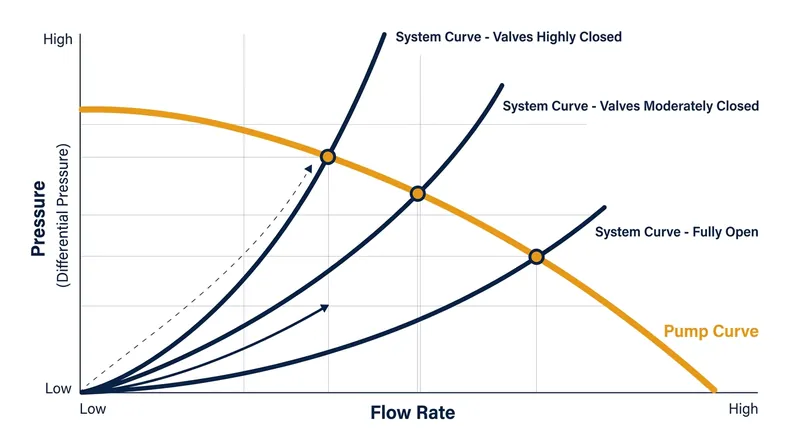

Every time a wax actuator expands and drives its pin downward, the system curve steepens. The intersection point with the pump curve moves higher. The differential pressure—the difference in pressure between the supply header and the return header—climbs steadily. The remaining open zones are suddenly subjected to a driving force they were never sized to handle.

The severity of the resulting noise is governed by a metric known as valve authority. Valve authority is the ratio of the pressure drop across the fully open control valve to the total pressure drop of the entire circuit. For a thermostatic valve to control the room temperature accurately, it must maintain a high valve authority.

Valve authority and flow coefficients

However, as the differential pressure from the pump spikes, the valve's authority collapses. The valve is forced to close much further than normal just to achieve the same reduction in flow. It operates in a nearly shut position, creating a microscopic aperture through which the high-pressure water must squeeze.

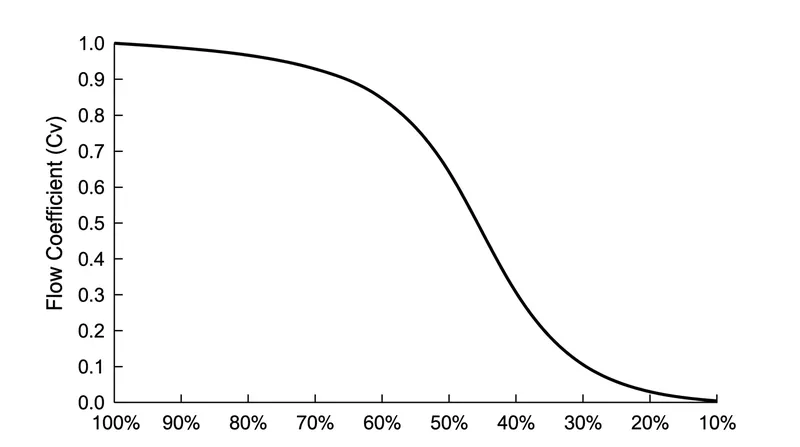

This is where the flow coefficient, or Cv, becomes critical. The Cv represents the volume of water that will pass through the valve at a one-pound-per-square-inch pressure drop. As the valve closes, its Cv plummets. The water velocity through the remaining gap accelerates exponentially, tearing at the fluid boundary layers and triggering acoustic cavitation.

Cavitation occurs when the localized pressure drops below the vapor pressure of the hot water, causing microscopic steam bubbles to form and instantly collapse. These implosions generate shockwaves that hit the brass valve body like tiny hammers. The resulting vibration is amplified by the hollow steel or cast-iron radiators, broadcasting the whistle into the living space.

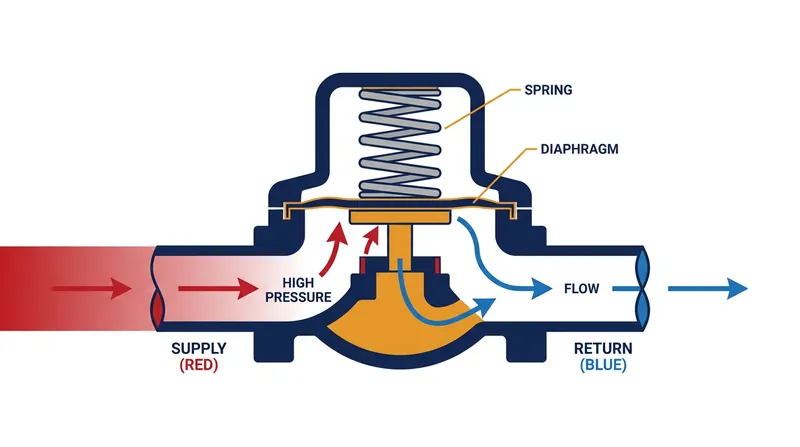

The differential pressure bypass valve interrupts this destructive chain of events by artificially capping the system curve. It is a proportional valve, meaning it does not simply snap open or closed. It contains a spring-loaded diaphragm that constantly measures the pressure difference between the supply and return mains.[2]

The mechanics of the bypass intervention

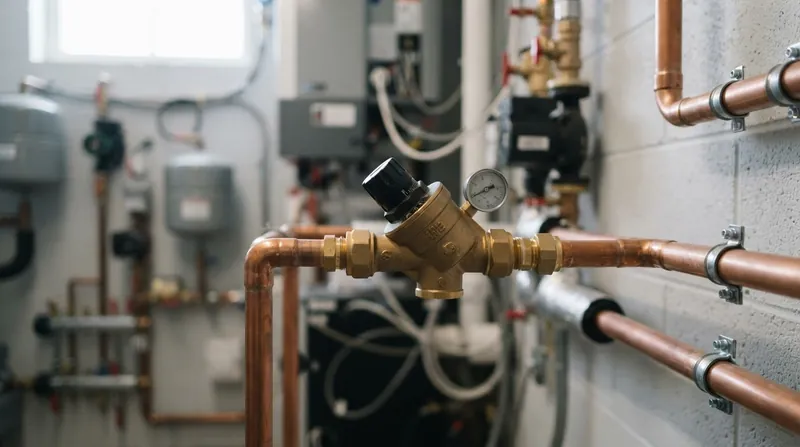

The technician sets the tension on this spring to match the system's design pressure—usually around 0.5 to 1.0 psi above the differential pressure that exists when all radiator valves are fully open. As long as the thermostatic valves remain open, the bypass valve stays tightly shut, forcing all the heated water through the radiators where it belongs.

But the moment the radiators begin to close and the pressure creeps above that setpoint, the bypass valve’s spring is overcome. The diaphragm lifts, opening a direct channel back to the boiler. As more radiator valves close, the bypass valve opens wider, shuttling an increasing volume of water through the detour.[2]

This proportional response ensures that the differential pressure across the supply and return headers never exceeds the setpoint. The operating point on the pump curve is locked in place. The remaining open radiator valves continue to experience the exact same driving pressure they had at full load, preserving their valve authority and keeping the water velocity safely below the acoustic threshold.

Ultimately, a hydronic heating system is an exercise in managing fluid friction. The thermostatic valves dictate the resistance, and the pump provides the force. When those two elements fall out of alignment, the resulting mechanical conflict manifests as noise, wear, and inefficiency. The bypass valve is the crucial mediator that restores the balance.[4]
