Spanwise Drift Stalls Wingtips First, Shifting Lift Forward to Trigger Swept-Wing Pitch-Up

Sweep a commercial airliner’s wings back by 35 degrees, and you reduce the aerodynamic drag at cruising altitude by enough to make transcontinental flight economically viable. But measured on the basis of low-speed stability, that same sweep introduces a fatal flaw: it forces the air to slide sideways across the metal.[3]

The swept wing is the defining feature of the jet age, enabling aircraft to push past Mach 0.80 by delaying the formation of supersonic shockwaves. By angling the leading edge, the wing effectively experiences a slower perpendicular airflow, raising its critical Mach number.[1]

However, this high-speed efficiency creates a severe aerodynamic penalty during takeoff and landing. When a swept-wing aircraft slows down, it must fly at a higher angle of attack to maintain lift, which fundamentally changes how the air interacts with the wing's surface.[3]

While the swept wing has numerous aerodynamic advantages for high-speed flight, it is characterized by very poor stall characteristics. The primary culprit is a phenomenon known as spanwise flow, which destabilizes the boundary layer and forces the air outward.[1]

The Mechanics of Spanwise Flow

On a traditional straight wing, the oncoming air flows parallel to the aircraft's chord line, moving directly from the leading edge to the trailing edge. The pressure distribution remains relatively uniform across the span, keeping the airflow attached to the surface.[3]

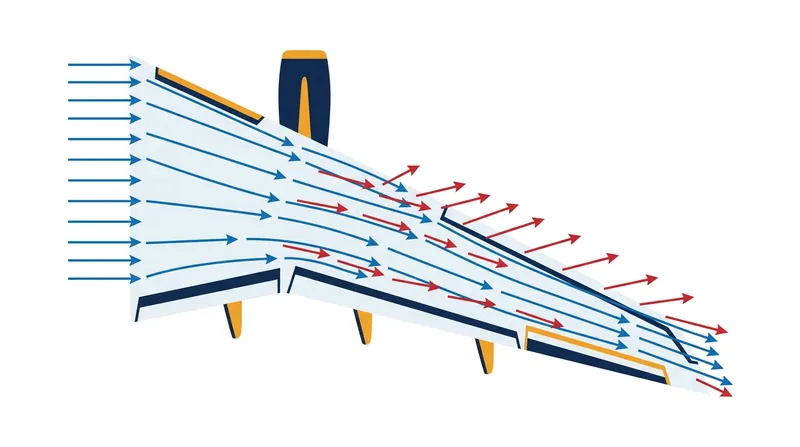

Sweeping the wing alters this pressure gradient entirely. The angled leading edge deflects a significant portion of the oncoming air outward toward the wingtips, creating a diagonal drift that pushes the air spanwise rather than chordwise.[1]

This outward drift wreaks havoc on the boundary layer, the thin sheet of viscous air clinging to the wing's skin. As the air travels diagonally toward the tip, it covers a longer physical distance, losing kinetic energy to surface friction along the way.[1]

The spanwise flow acts like a snowplow, sweeping the tired, low-energy air outward and piling it up at the wingtips. This causes the boundary layer at the outer edges of the wing to thicken substantially, making it highly susceptible to flow separation.[1]

"With increasing span-wise flow the boundary layers on the surface of the wing have longer to travel, and so are thicker and more susceptible to transition to turbulence," notes the aerodynamic literature. This thickened layer simply cannot follow the wing's contours at high angles of attack, making flow separation inevitable.[1]

The Tip Stall Trap

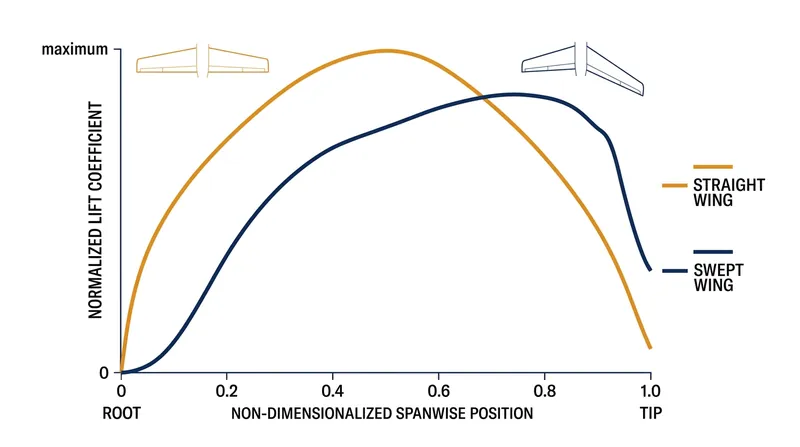

Because the boundary layer is thickest and weakest at the outer edges, a swept wing will almost always stall at the wingtips first. This localized flow separation destroys the lift at the furthest extremities of the wing, while the inboard sections continue flying.[2]

A tip-first stall pattern creates a severe geometric crisis for the aircraft. Because the wings are swept backward by 25 to 40 degrees, the wingtips are physically located far behind the aircraft's center of gravity.[3]

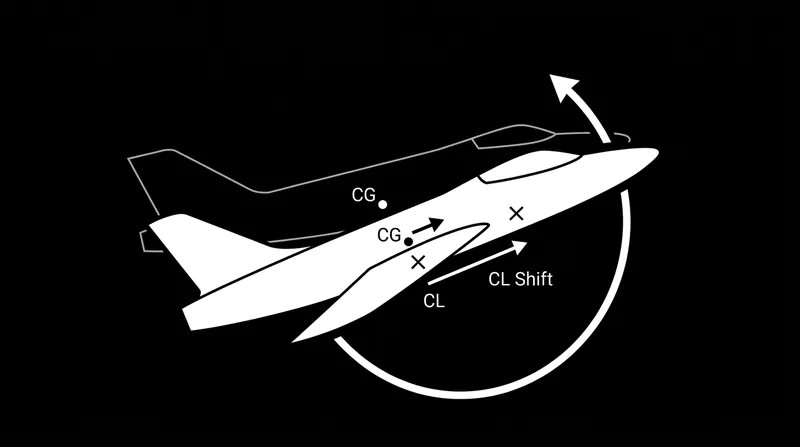

"When the tips stall on a swept wing, the center of pressure, the average lift point for the wing as a whole, moves forward," explains the standard flight dynamic model. This geometric reality means that any loss of lift at the extremities disproportionately affects the aircraft's longitudinal balance.[2]

The center of pressure on a healthy wing is typically located at one-third to one-half of the wing's chord. But when the tips stall, that center of pressure rapidly shifts inward and forward, fundamentally altering the aircraft's pitch equilibrium.[2]

This forward shift in lifting force yanks the aircraft's nose upward, an uncommanded rotation known as pitch-up. The aircraft violently alters its own attitude, overriding the pilot's trim settings just as the aircraft is already running out of airspeed.[2]

The Sabre Dance and Deep Stalls

Pitch-up is inherently dangerous because it feeds on itself in a divergent, self-aggravating loop. As the nose rises, the wing's angle of attack increases further, which forces even more of the outer wing to stall.[2]

This progressive stalling shifts the center of lift even further forward, driving the nose higher and locking the aircraft into an unrecoverable posture. During the early jet age in the 1950s, this instability proved lethal to pilots flying the North American F-100 Super Sabre.[1]

The fighter would pitch up violently during low-speed landing approaches, dropping its tail and tumbling onto the runway in a fatal maneuver that became grimly known as the "Sabre dance." The swept wing was actively fighting the pilot's attempts to recover.[2]

The problem is often compounded by the aircraft's tail design. In many T-tail configurations, the extreme nose-up attitude drops the horizontal stabilizer directly into the turbulent, low-energy wake of the stalled main wing, rendering the elevator useless.[2]

"The tailplane was placed directly in the wing wake during the pitch-up, causing deep stall," notes historical documentation of the McDonnell F-101 Voodoo. Without elevator authority, the pilot has no aerodynamic leverage to push the nose back down, making a crash almost inevitable at low altitudes.[2]

Engineering the Fix

To survive the physics of swept wings, engineers must force the air to disobey its natural pressure gradients. One of the earliest solutions was the wing fence, a physical metal barrier wrapping around the leading edge to block spanwise flow.[1]

Aircraft like the Soviet MiG-15 relied heavily on these prominent fences, which act as dams to stop the outward drift of the boundary layer. By trapping the air, the fences preserve the lift at the wingtips and maintain aileron effectiveness.[1]

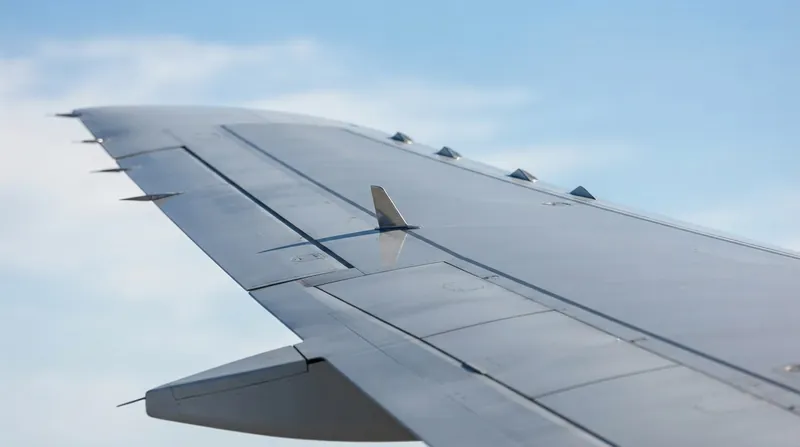

Modern commercial airliners rely on more subtle interventions, such as vortex generators. These small, precisely angled metal fins are placed along the upper surface of the wing to create tiny, energetic tornadoes within the boundary layer.[3]

These vortices mix high-speed freestream air down into the sluggish boundary layer, giving it the kinetic energy required to stay attached to the wing at higher angles of attack. This delays the tip stall and tames the pitch-up tendency.[3]

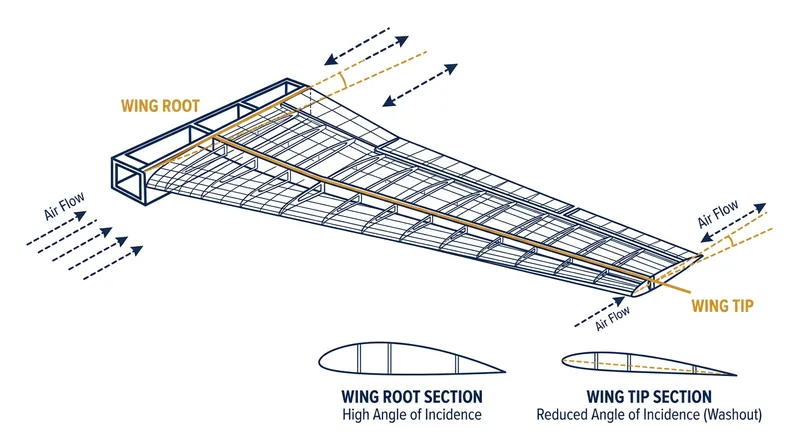

Engineers also twist the wing structure itself, a technique known as washout. By building the wing root with a higher angle of incidence than the tip, designers force the inboard section to reach its critical stall angle first.[1]

The Permanent Compromise

Washout ensures that the root stalls while the tips are still flying, preserving the aft lift and creating a natural nose-down pitching moment that aids recovery. It is a structural mandate for almost every swept-wing aircraft in production today.[3]

Recent research in 2025 continues to explore active flow control to manage this instability. Experimental studies utilizing laminar flow airfoils have demonstrated that sweeping fluidic jets injected at a 20-degree angle could artificially reattach the boundary layer.[3]

By injecting high-momentum air directly into the spanwise flow, researchers successfully delayed the tip stall and mitigated the pitch-up moment without the drag penalty of physical wing fences. However, these active systems remain too complex for standard commercial deployment.[3]

The swept wing represents a permanent compromise in aviation design. The industry accepts extreme low-speed instability as the unavoidable price for high-speed efficiency, relying on a patchwork of aerodynamic interventions to keep the aircraft flying safely.[3]
