Why the Reverse Osmosis Salt Passage Fraction Rises as Feed Water Pressure Drops

When a reverse osmosis system begins to pass too much salt, a common instinct among plant operators is to dial back the feed pressure. The intuitive claim is that lower pressure pushes less salt through the membrane barrier, theoretically improving the water quality. But the physics of the solution-diffusion model dictate the exact opposite: dropping the feed pressure actually increases the salt passage fraction, worsening the permeate quality.[2]

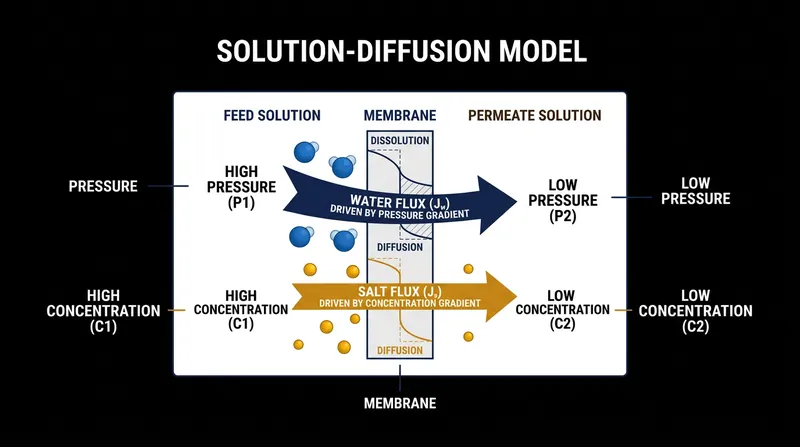

The error stems from treating a semi-permeable membrane like a mechanical sieve, where a harder push forces more debris through the holes. Reverse osmosis does not work by physical filtration. Instead, water and salt dissolve into the membrane polymer and diffuse across it as two entirely separate processes, governed by different driving forces.[2]

"Salt passage through a membrane barrier layer is constant and is not influenced by pressure," notes the American Membrane Technology Association. Because the salt transport remains steady while the water transport slows down under reduced pressure, the resulting product water becomes significantly more concentrated.

The Two Independent Fluxes

To understand why the salt fraction rises, operators must isolate the two equations that define membrane performance. The first is water flux, which measures how much pure water crosses the barrier. Water flux is directly proportional to the net driving pressure, which is the applied pump pressure minus the natural osmotic pressure of the feed water.

If a seawater desalination plant applies 1,000 psi of feed pressure against an osmotic pressure of 400 psi, the net driving pressure is 600 psi. If the operator drops the feed pressure by 15 percent to 850 psi, the net driving pressure falls to 450 psi. That 25 percent drop in driving force causes a proportional 25 percent drop in the volume of water produced.[2]

The second equation governs the salt flux, which dictates how many milligrams of dissolved ions cross the membrane. Unlike water, salt flux is driven almost entirely by the concentration gradient between the feed side and the permeate side. It is fundamentally blind to the hydraulic pressure applied by the pumps.

Whether the system operates at 800 psi or 1,200 psi, the absolute mass of salt diffusing through the polyamide layer remains virtually identical, provided the feed concentration remains constant. The ions are migrating down a chemical gradient, not being pushed by a hydraulic ram.

Why the Ratio Flips

The critical metric for water quality is the salt passage fraction, which is simply the salt flux divided by the water flux. Because the numerator representing salt mass is fixed by the concentration gradient and the denominator representing water volume is dictated by pressure, any reduction in pressure shrinks the denominator.

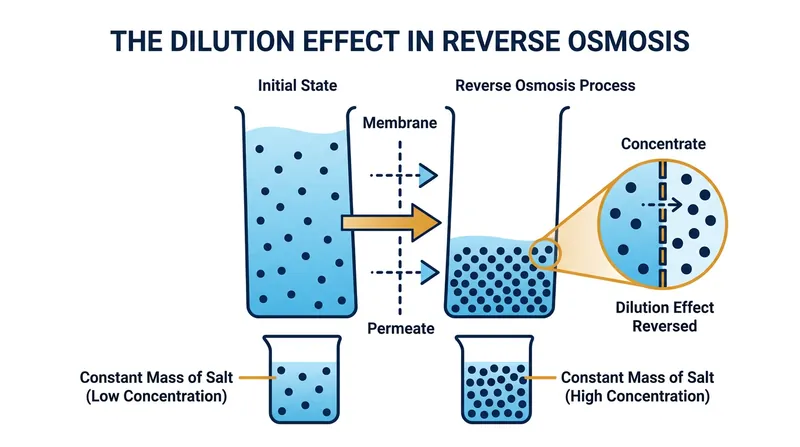

"The water flux is proportional to net driving pressure, but salt flux is not - so raising pressure or lowering Δπ dilutes the permeate and improves rejection," explains MCBA's system design guide. When the feed pressure drops, the exact same amount of salt is diluted into a significantly smaller volume of pure water.

Consider a brackish water system operating at 200 psi, producing 100 gallons of permeate per minute with a salt passage of 1.0 percent. If the pressure is reduced so that the system only produces 75 gallons per minute, the salt flux does not decrease. The same mass of salt now mixes into 25 fewer gallons of water, pushing the salt passage fraction up to 1.33 percent.[2]

This mathematical reality means that undersized systems, or those operated at artificially low pressures to save electricity, will inherently pass more salt. The net effect of increasing drive pressure is always to dilute a constant salt leakage with a higher volume of pure water, driving the permeate concentration down.

The Energy Versus Purity Trade-Off

This dynamic creates a strict operational trade-off between energy consumption and water purity. High-pressure pumps consume the vast majority of the electricity used in a reverse osmosis plant, often accounting for 60 to 80 percent of the total operating cost.

When energy prices spike, facility managers frequently attempt to trim costs by lowering the variable frequency drives on their main pumps. While this immediately reduces the kilowatt-hours consumed per cubic meter of water, it simultaneously degrades the rejection rate. A system designed to reject 99.5 percent of sodium chloride might slip to 98.5 percent rejection under reduced pressure.[2]

That 1.0 percent shift sounds minor, but it represents a tripling of the salt passage fraction, jumping from 0.5 percent to 1.5 percent. For industrial applications requiring ultrapure water, such as semiconductor manufacturing or pharmaceutical production, that increase in conductivity can ruin a production batch and force the system offline.[2]

"Reverse osmosis optimization is the process of finding operating conditions that meet required water production and permeate-quality targets while controlling energy use," notes Clewas. The variables cannot be adjusted in isolation, because lowering the pressure always exacts a direct penalty on the permeate quality.

Concentration Polarization at the Boundary

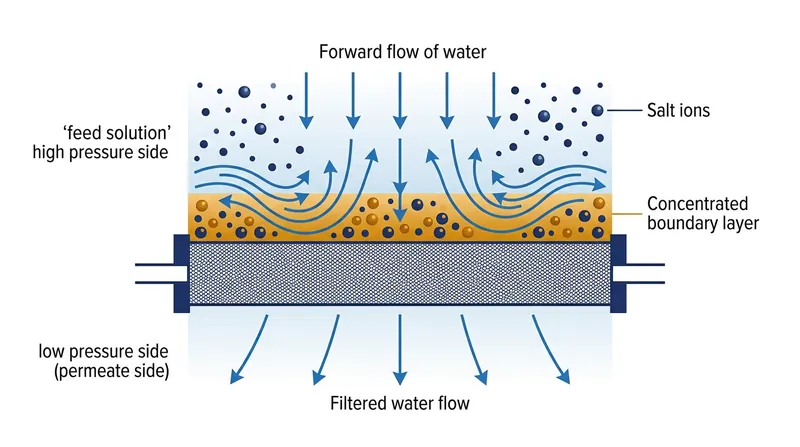

The situation is further complicated by a phenomenon known as concentration polarization, which occurs at the microscopic boundary layer right against the membrane surface. As pure water is forced through the polymer, the rejected salts are left behind, creating a localized zone of highly concentrated brine.

This boundary layer has a much higher salinity than the bulk feed water flowing through the pipe. Because osmotic pressure increases by roughly 11 psi for every 1,000 mg/L of total dissolved solids, this localized concentration spike actively pushes back against the applied pump pressure.

If the feed pressure is dropped, the cross-flow velocity often decreases as well, allowing the boundary layer to grow thicker and more concentrated. This elevated concentration gradient directly increases the salt flux, because the driving force for salt diffusion is the difference in concentration across the membrane.[2]

Therefore, dropping the pressure triggers a double penalty. Not only does the reduced water flux concentrate the baseline salt leakage into a smaller volume, but the worsening concentration polarization actually increases the absolute mass of salt diffusing through the barrier.[2]

Temperature and Osmotic Baselines

Operators must also account for temperature, which alters both fluxes simultaneously but at different rates. Lowering the feed pressure during the summer months is particularly hazardous to water quality. As water warms, its viscosity drops, increasing the water flux, but the diffusion rate of salt through the membrane increases even faster.[1]

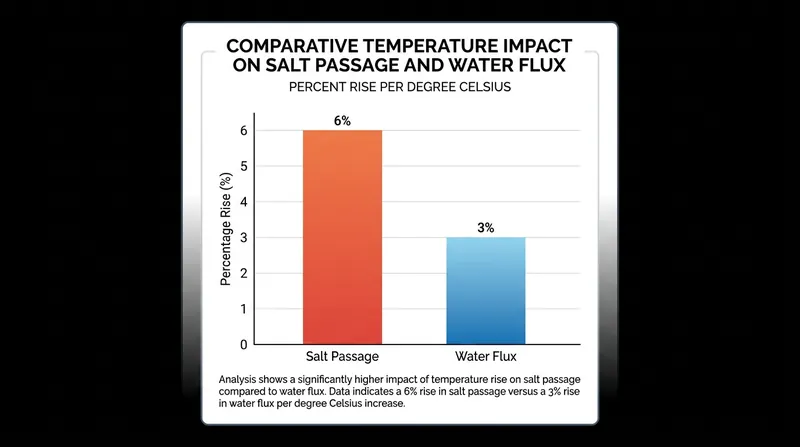

"The general rule of thumb is that salt passage increases 6% for every 1° C increase in feedwater temperature, so the salt passage increases about twice as much as the increase in water flux," according to WaterWorld. This thermal reality forces operators to carefully balance their seasonal setpoints.[1]

If an operator responds to the higher summer water flux by dialing back the feed pressure to maintain a constant production rate, they are compounding the temperature penalty. The warmer water is already driving more salt across the membrane, and the reduced pressure ensures there is less pure water to dilute it.[1][2]

Ultimately, the solution-diffusion model proves that permeate quality requires adequate hydraulic force. The only way to stop a reverse osmosis membrane from passing too much salt is to push hard enough to generate the pure water needed to dilute it.[2]

Membrane Compaction and Aging

The relationship between pressure and salt passage also shifts as the membrane ages. When a new polyamide membrane is installed, it is highly permeable. Over the first few months of operation at 800 to 1,000 psi, the physical structure of the polymer matrix compresses under the hydraulic load.[2]

This compaction permanently reduces the water permeability constant, meaning the system will require slightly more pressure to produce the same volume of water. However, the salt permeability constant remains largely unaffected by this physical compression, creating a growing imbalance over time.[2]

If an operator fails to incrementally increase the feed pressure to compensate for compaction, the water flux will slowly decay. Because the salt flux remains steady, the salt passage fraction will gradually climb, leading to a slow deterioration in permeate quality over the first year of the membrane's lifespan.[2]

The Role of System Recovery Rates

The pressure dynamic is also tightly linked to the system's recovery rate, which is the percentage of feed water successfully converted into permeate. A standard single-pass brackish water system might operate at a 75 percent recovery rate, meaning 75 gallons of pure water are extracted from every 100 gallons of feed.

As water is extracted along the length of the pressure vessel, the remaining feed water becomes increasingly concentrated. By the time the water reaches the final membrane element in the series, its osmotic pressure is significantly higher than it was at the inlet.

"This means that downstream elements will have a slightly higher salt passage than the preceding elements, since the feed concentration is higher," the American Membrane Technology Association explains. The net driving pressure at the tail end of the vessel is already severely depleted by the rising osmotic pressure.

If the overall feed pressure is dropped at the main pump, the final elements in the array may actually experience a negative net driving pressure. When this happens, water production at the tail end stops entirely, and those elements act purely as salt diffusion conduits, dumping highly concentrated brine directly into the permeate tube.[2]
